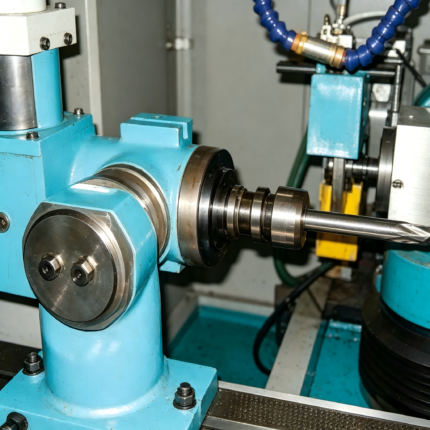

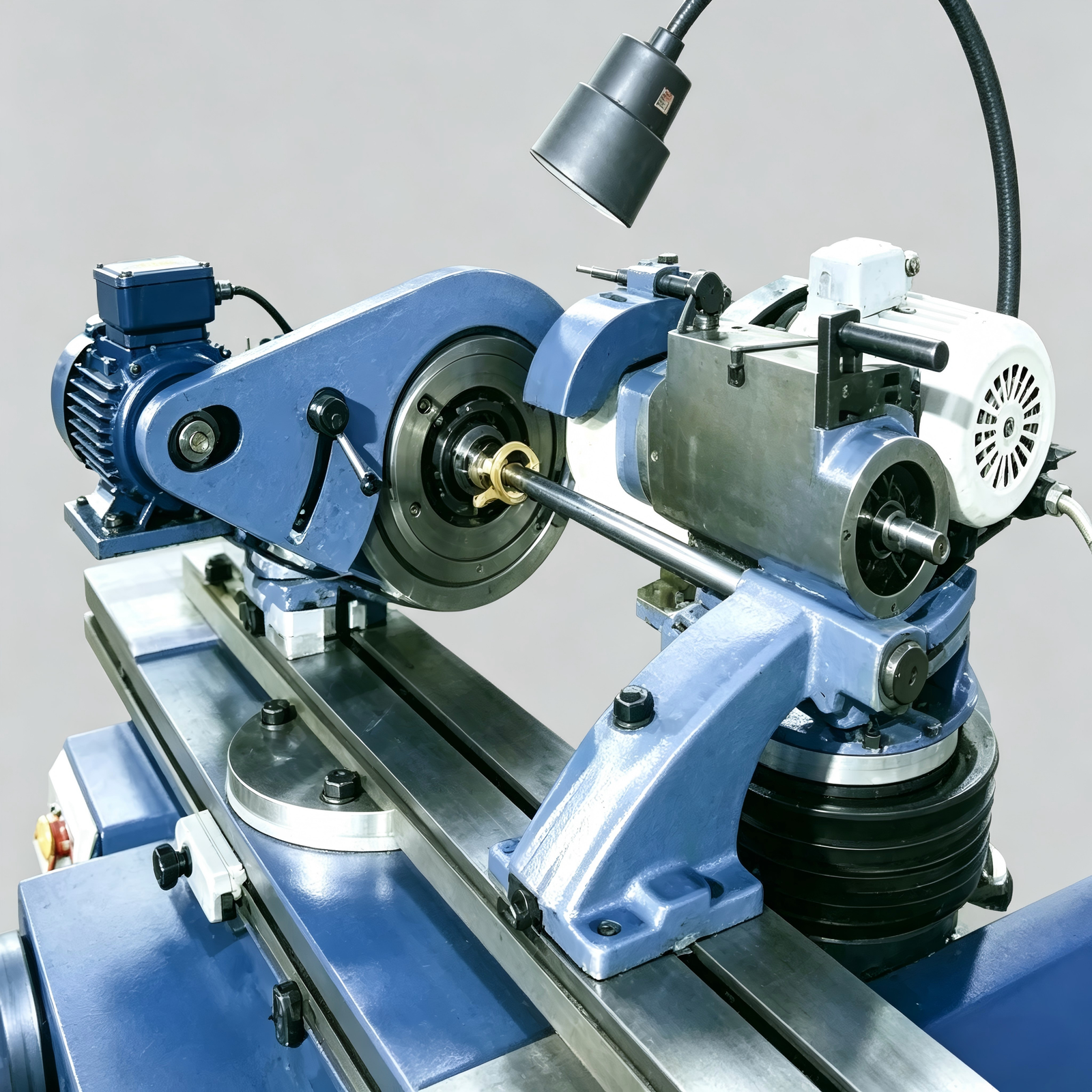

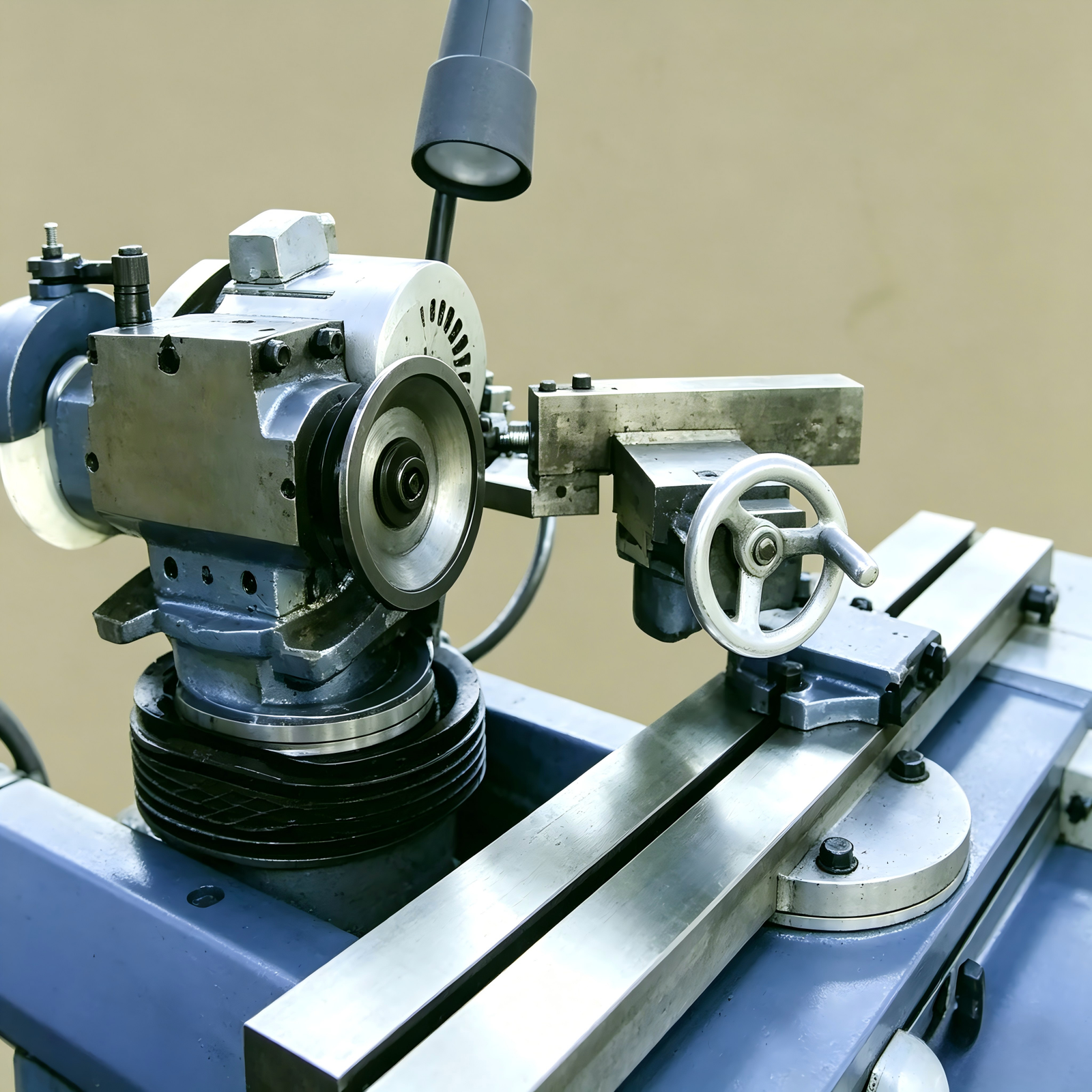

Universal Tool & Cutter Grinding Machine
The universal tool grinder is particularly suitable for grinding tools made of high-speed steel, cemented carbide, and other materials.
Examples include: various milling cutters, reamers, turning tools, planing tools, taps, and gear shapers.
This multi-purpose grinder integrates the functions of a universal cylindrical grinder and a universal tool grinder. It features a reasonable structure, beautiful appearance, comprehensive performance, and reliable precision.
The worktable can be hydraulically driven for automatic reciprocating motion (steplessly adjustable speed) or manually operated, offering ease of use and sensitivity. It can perform both dry and wet grinding. It can grind various internal and external cylindrical and conical workpieces, as well as planes, bevels, and grooves.
It can grind various cutting tools, such as milling cutters, cutting tools, gear shapers, turning tools, and planing tools.

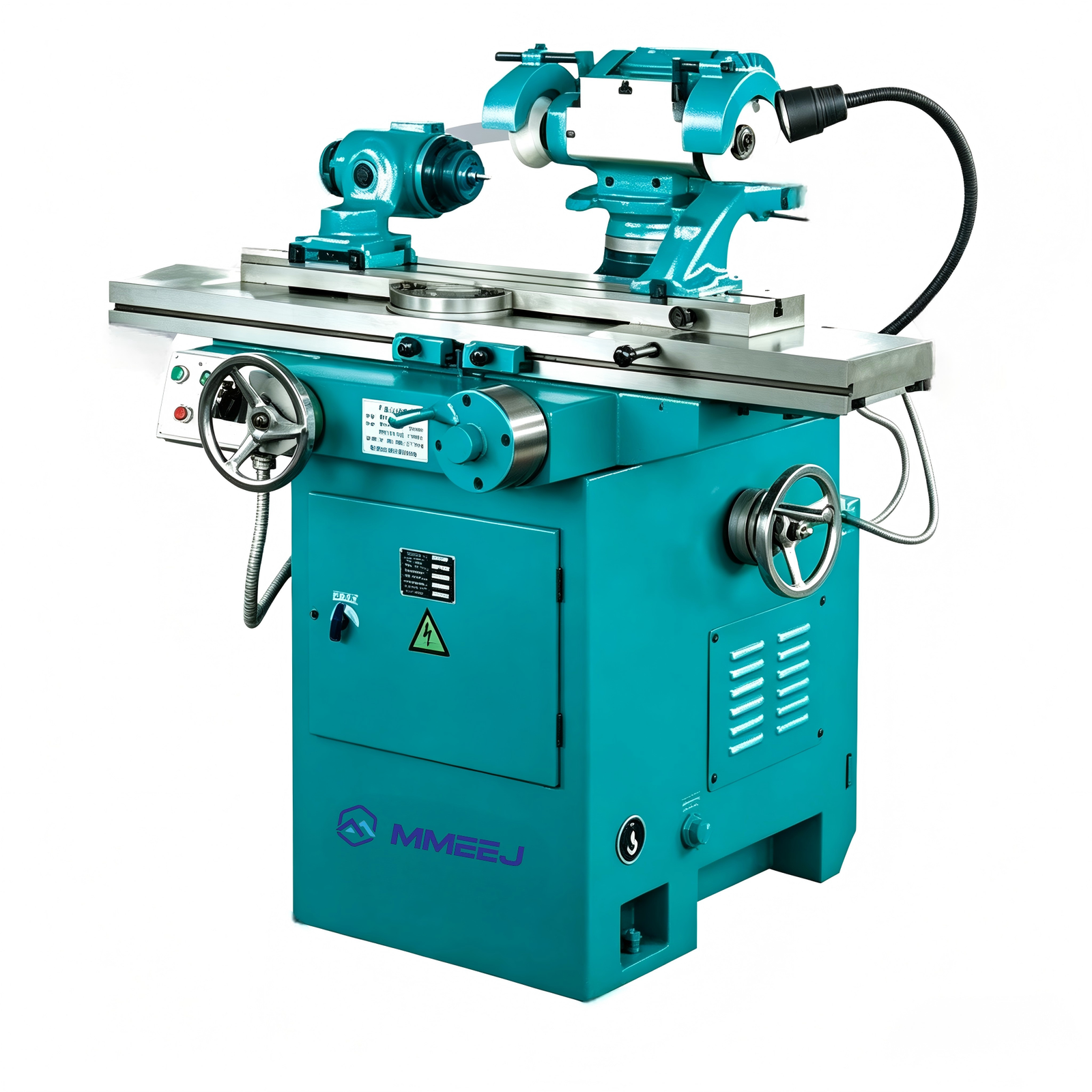

Universal Tool & Cutter Grinding Machine
| Items | Unit | M6025K | 2M9125C |
| Maximum workpiece rotation diameter | mm | 250 | 250 |
| Front and rear tip distance | mm | 650 | 630 |
| Longitudinal movement of the worktable | mm | 400 | 400 |
| Worktable dimensions | mm | 940x135 | 940x135 |
| Grinding head rotation angle in the horizontal plane | ° | 360 | 360 |
| Grinding head rotation angle in the vertical plane | ° | ±15 | ±15 |
| Vertical movement of the grinding head | mm | 230 | 210 |
| Transverse movement of the worktable | mm | 230 | 210 |
| Grinding wheel spindle speed | r/min | 2650/3800/5350/7600 | 3000/5600 |
| Chuck spindle rotation in the horizontal plane | ° | 360 | 360 |
| Spindle motor power | kw | 0.45/0.6 | 1.1 |
| Machine weight | kg | 1000 | 1150 |
| Machine dimensions | mm | 1350x1275x1250 | 1350x1340x1300 |
