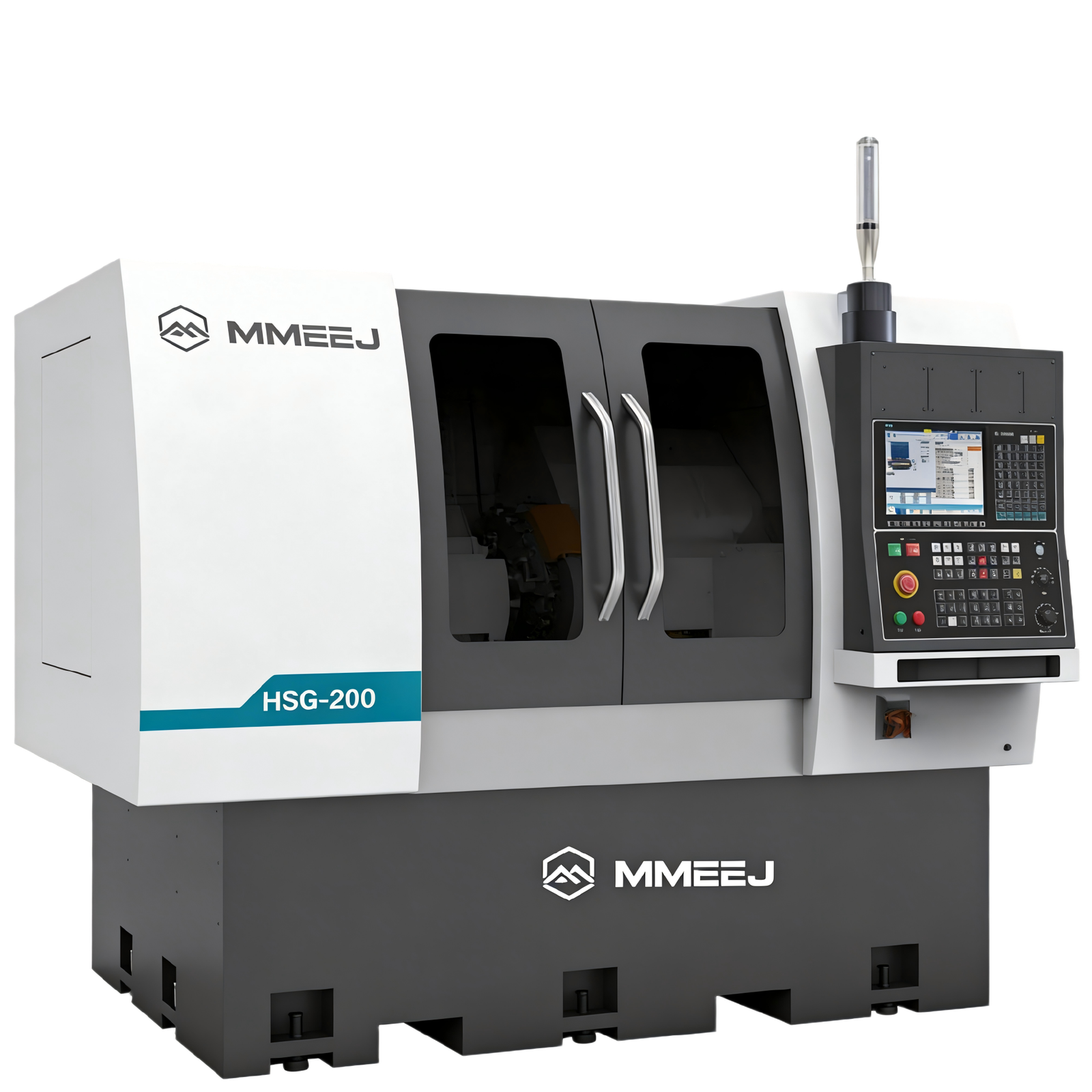

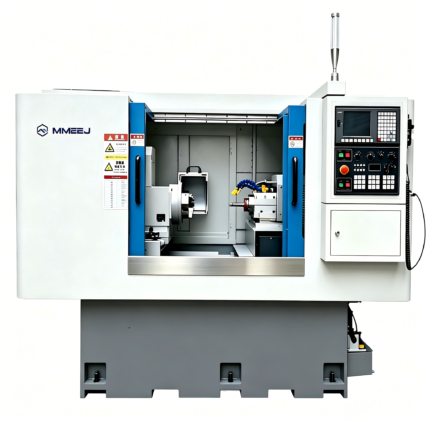

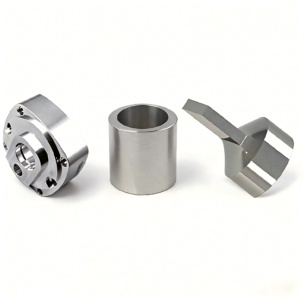

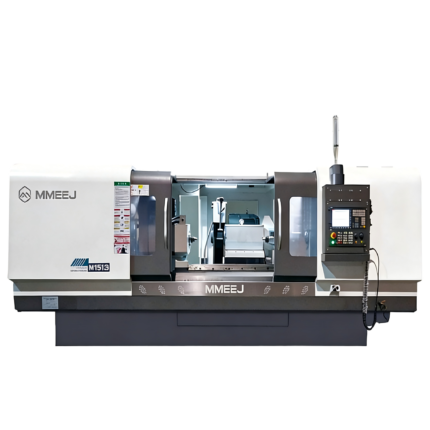

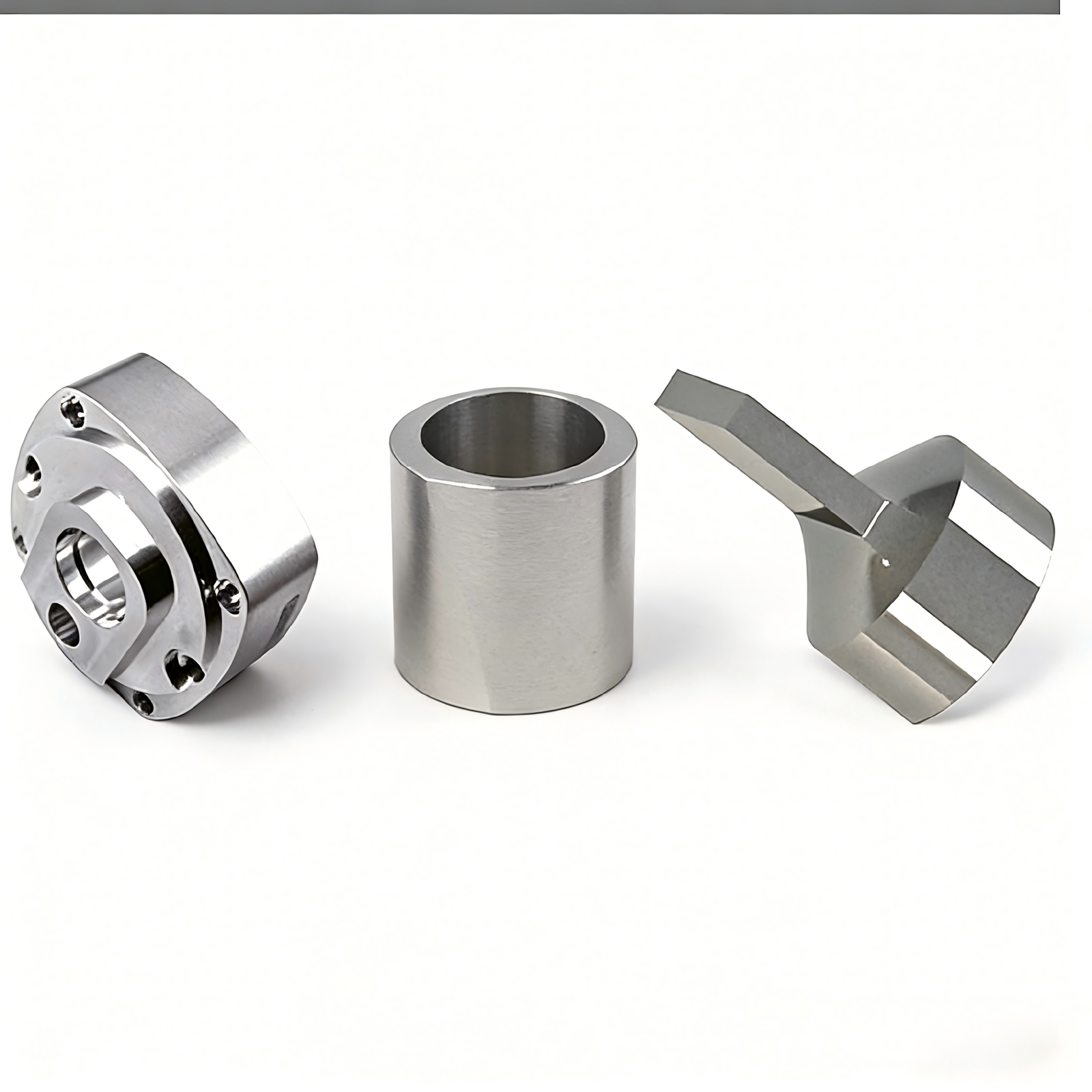

Composite Grinding Machine

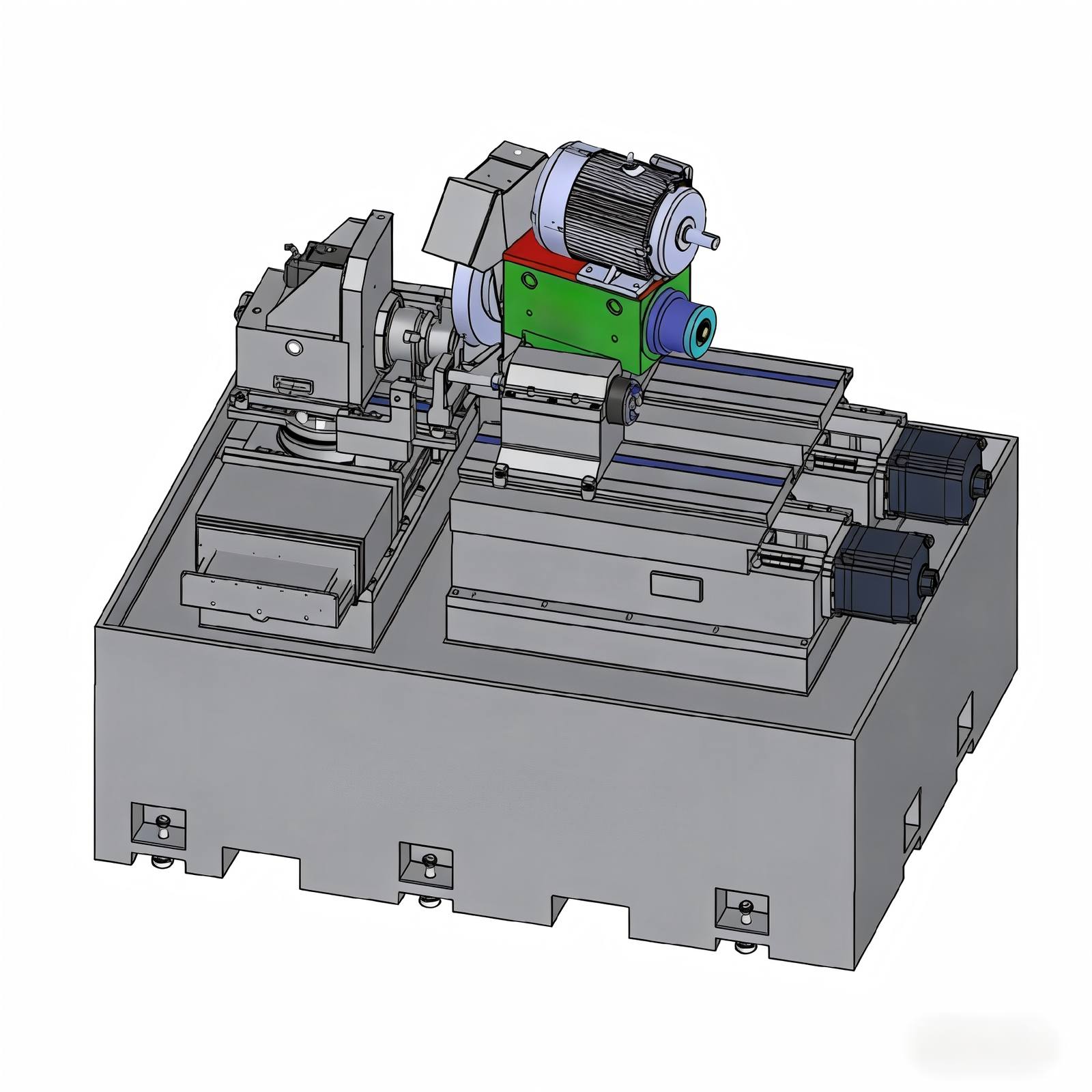

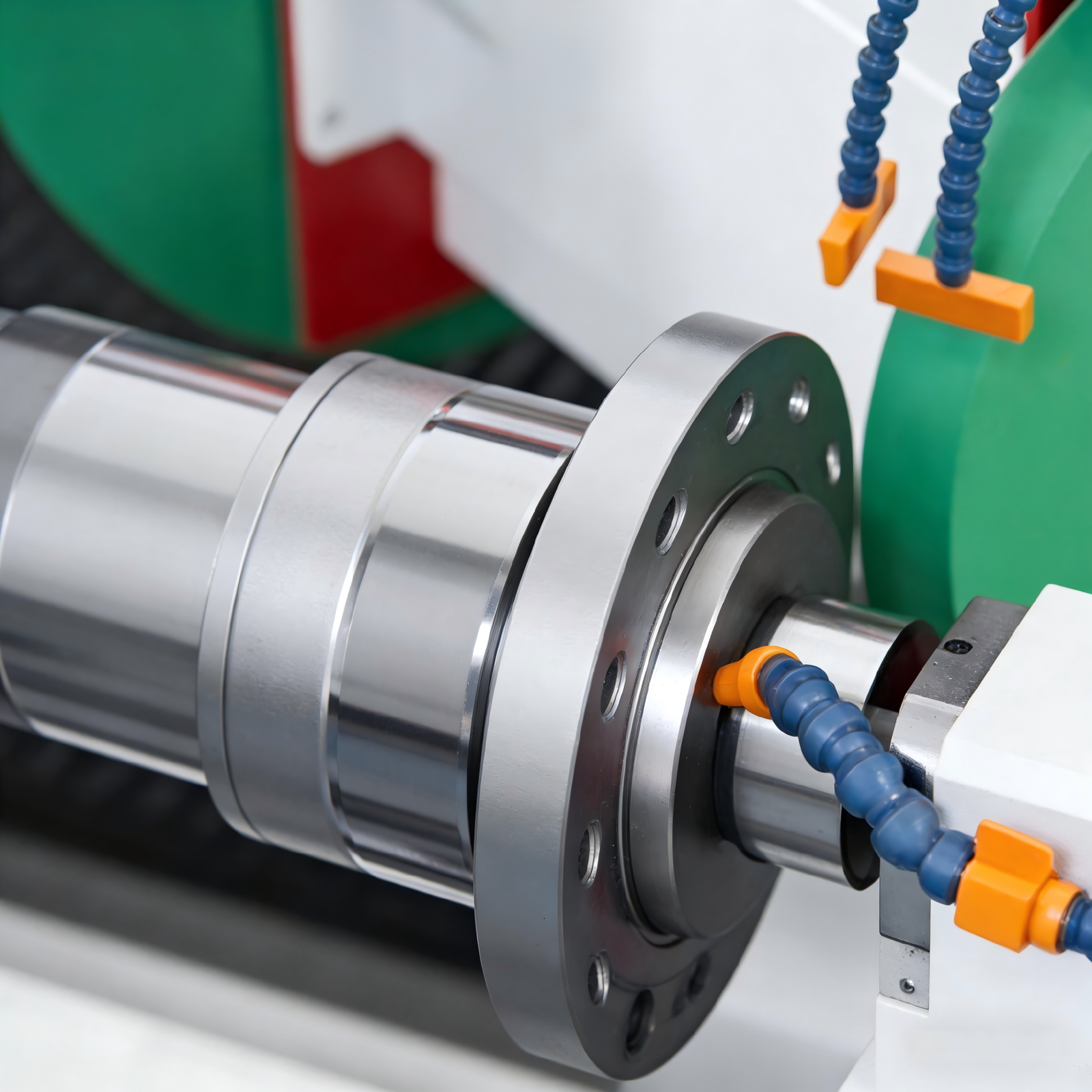

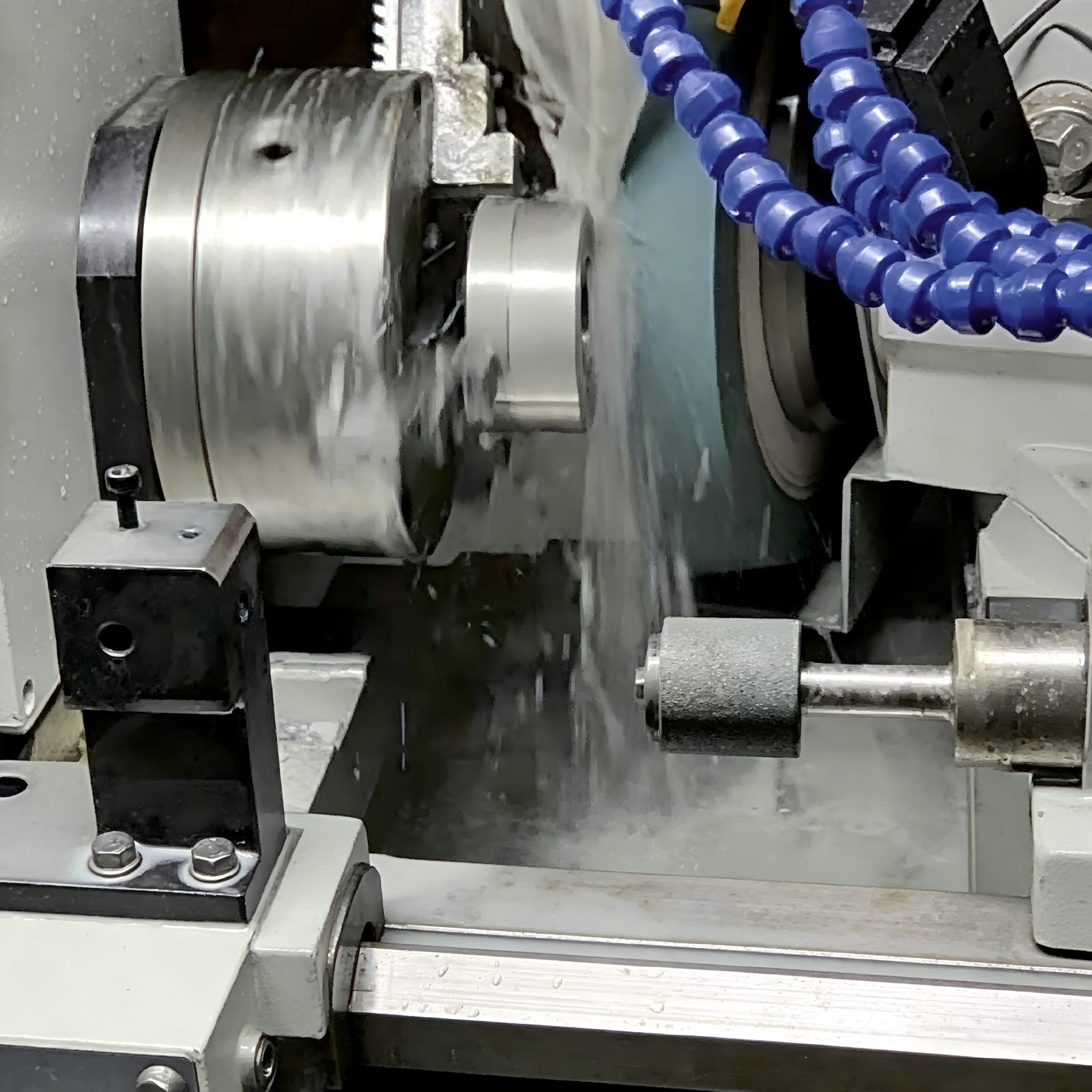

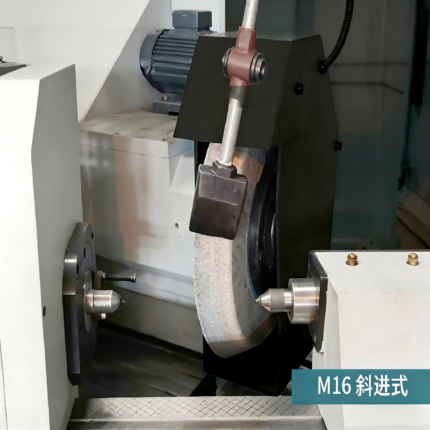

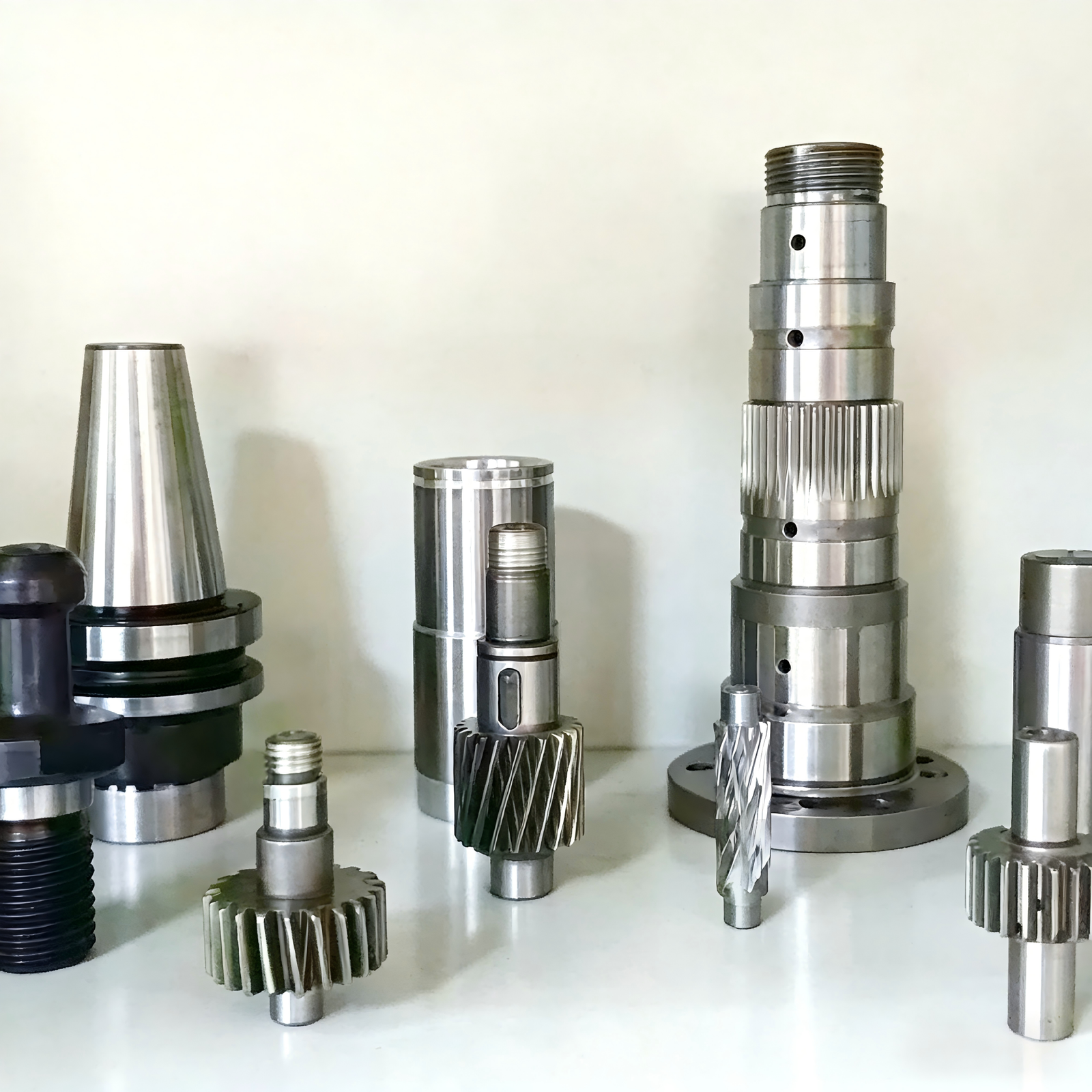

Structural characteristics：
X axis drives the multi-functional workhead through linear motodirect drive to complete the lateral feed of the workpieceduring grinding. Z1 axis is the feed axis of the external grinding,
and Z2 isthe feed axis of the internal grinding, C Axis (workhead)adopts servo motor to drive workpiece rotation, which can be combined with X axis and Z axis to complete the grinding of
special-shaped surface. Z axis adoptsintelligent ball screw drive
Description
Composite Grinding Machine
| Item | Unit | MKS2720×500 | MKS2732×1000 |
| Overall performance | |||
| Center height | mm | 180 | 180 |
| Grinding diameter range of cylindrical specimens | mm | 08～200 | 08-320 |
| Maxirum grinding length of outer circular specimen | mm | 500 | 1000 |
| Grinding hole range of inner circular specimens | mm | 10-80 | 10-80 |
| Depth of grinding hole for inner circular specimens | mm | 125 | 125 |
| Minimum feed rate of grinding wheel stand | mm | 0.0005 | 0.0005 |
| Minimum feed rate of worktable | mm | 0.001 | 0.001 |
| Minimum resolution of XZ-axis drive servo system | mm | 0.0001 | 0.0001 |
| Z-axis normal feed rate | m/min | 10m | 10 |
| X-axis normal feed rate | m/min | 8 | 8 |
| Precision headstock | / | High precision dual-purpose headstock | High precision dual-purpose headstock |
| Precision tailstock | / | Position of preloaded bearrings | Position of preloaded bearrings |
| Cylindrical grinding head (standard configuration) | |||
| Brand | / | Imported well-known brand grinding electric spindle | Imported well-known brand grinding electric spindle |
| Grinding wheel specifications (outer diameter max * width * inner diameter | mm | 500×63×203 | 500×63×203 |
| Cooling method | / | Circulating water cooling | Circulating water cooling |
| Sealing method | / | Front gas seal | Front gas seal |
| Linear speed | m/s | 50 | 50 |
| Internal grinding head (standard configuration) | |||
| Brand | / | Domestic well-known brands | Domestic well-known brands |
| Cooling method | / | Circulating water cooling | Circulating water cooling |
| Sealing method | / | Front gas seal | Front gas seal |
| Spindle speed | rmp/min | 30000(standard) | 30000(standard) |
| Grinding wheel specifications (outer diameter max * width * inner diameter | mm | 50×25×10 | 50×25×10 |
| Tool turret (B-axis) | |||
| Workstation | / | T4(standard) | T4(standard) |
| Turret drive | / | Mechanicalturntable/DDR direct drive turntable | Mechanical turntable/DDR direct drive turntable |
| Rotation angle | ° | +30～-280 | +30～-280 |
| Turntable positioning accuracy | " | ±5/±2.5 | ±5/±2.5 |
| control methods | / | Closed loop control | Closed loop control |
