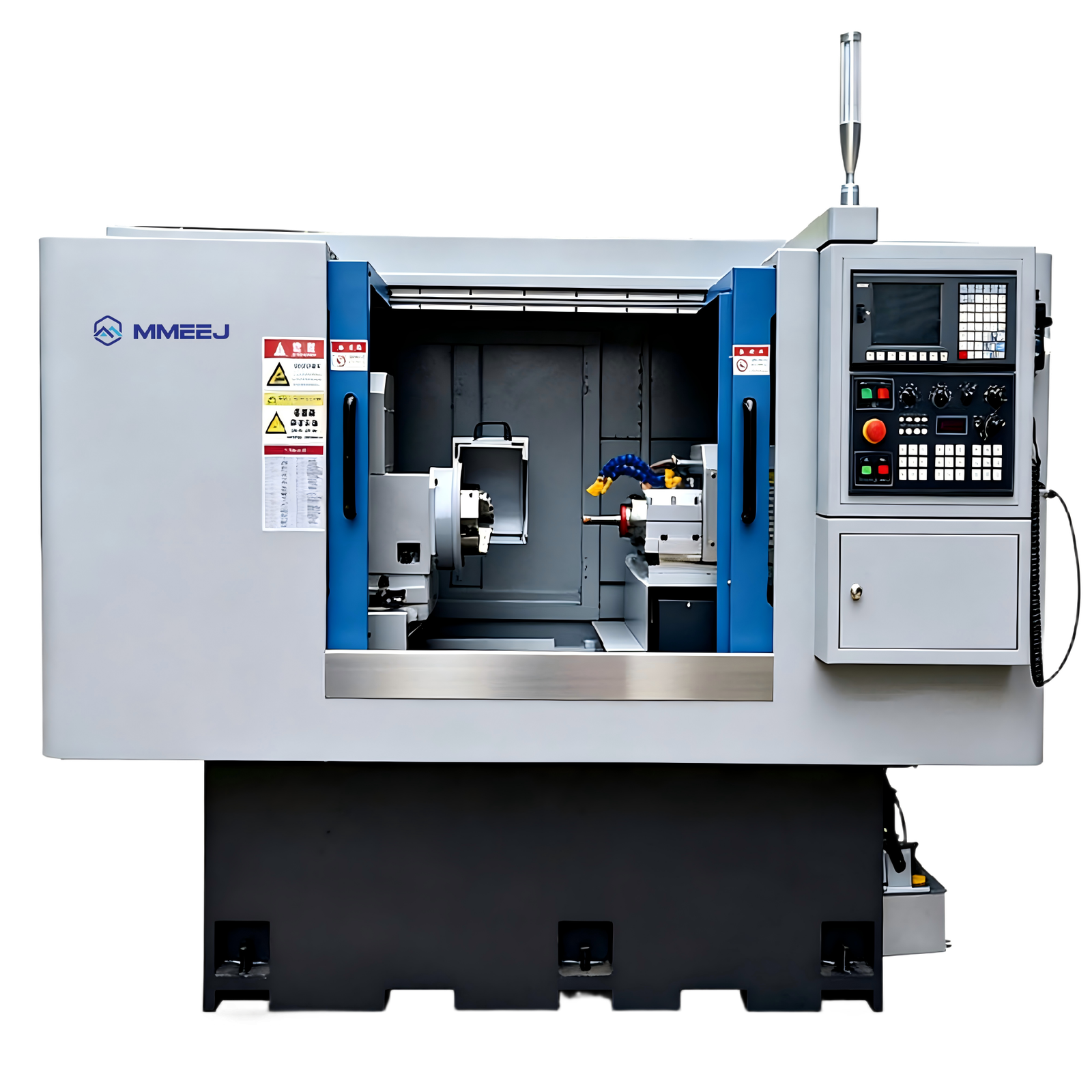

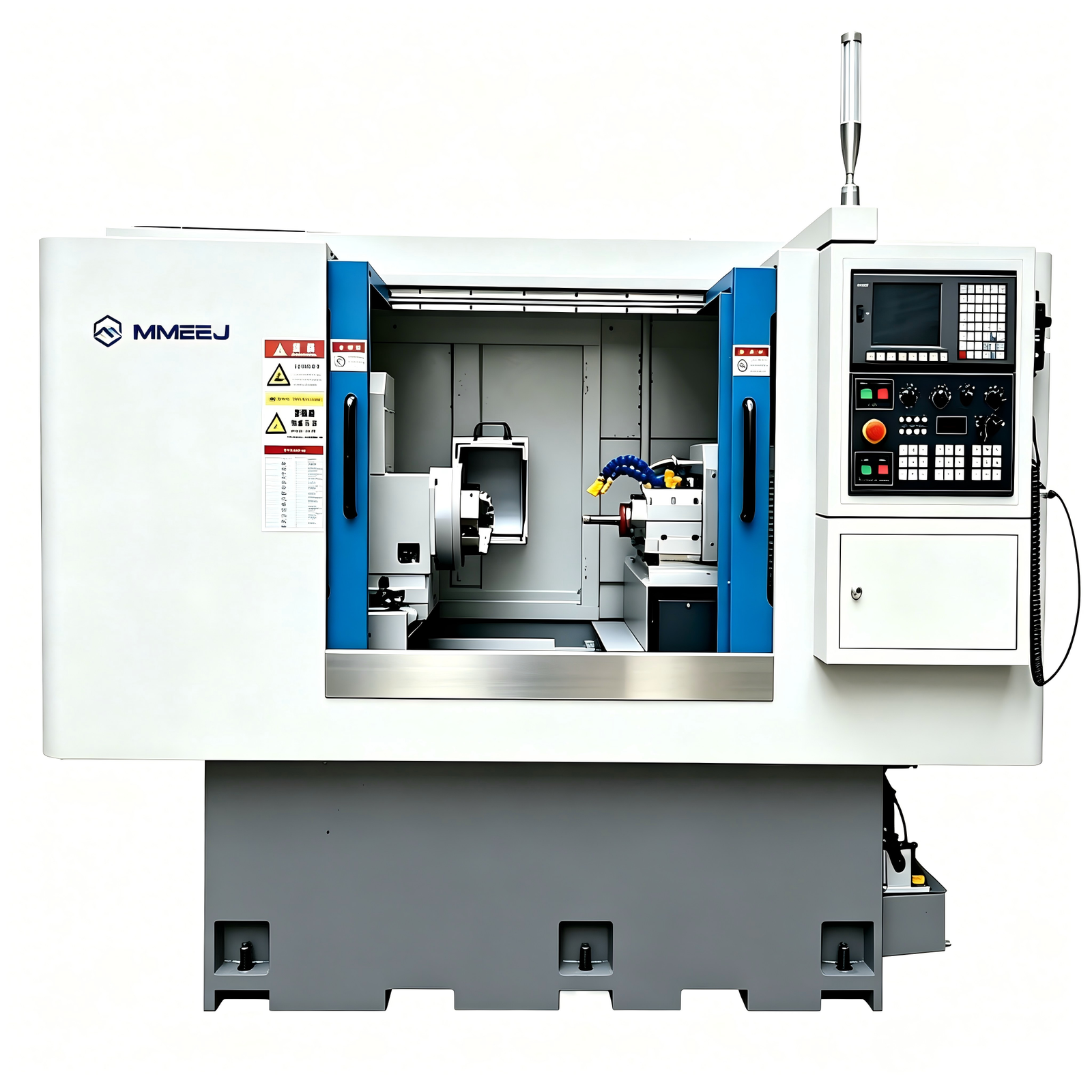

Internal Cylindrical Grinding Machine

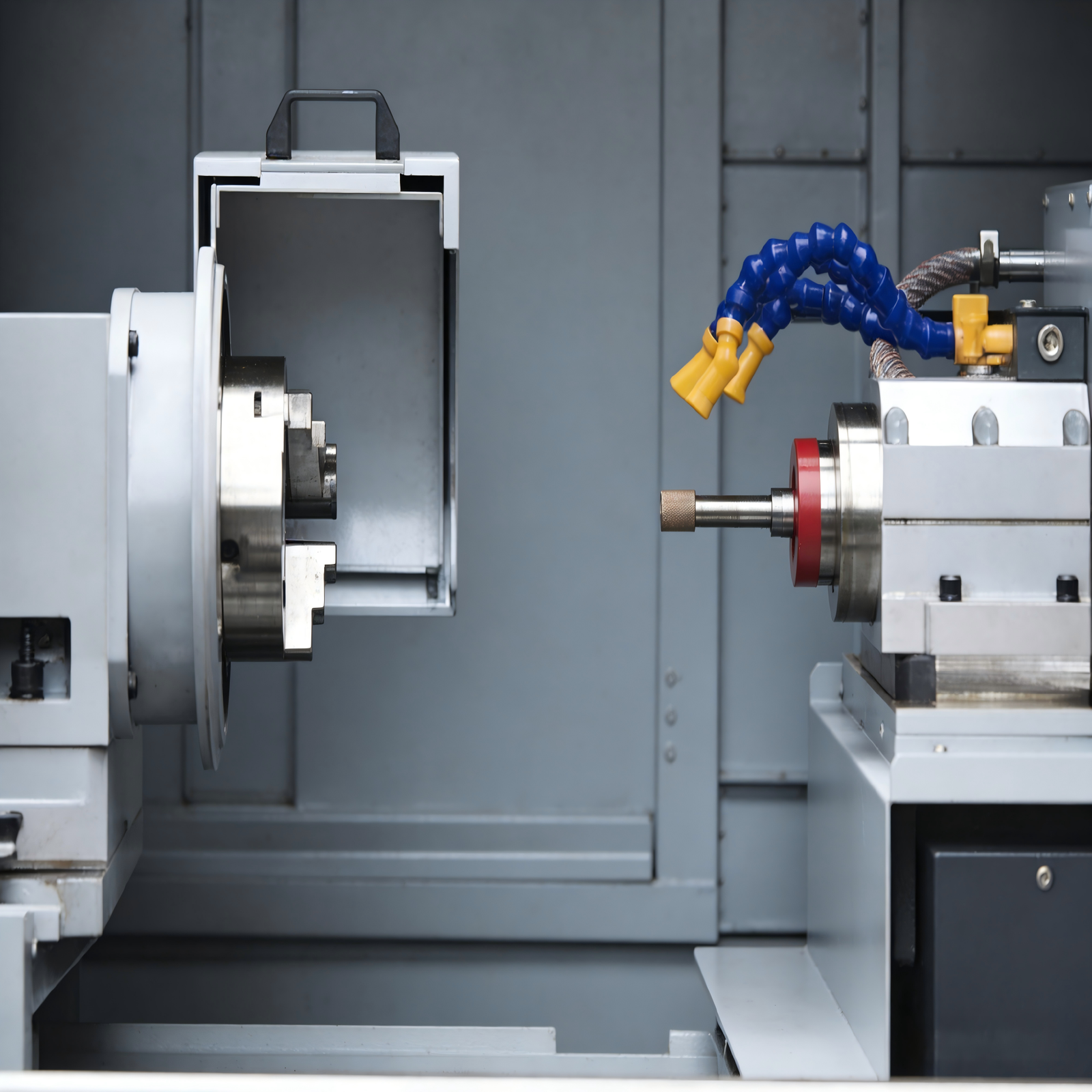

This model is the most widely utilized internal grinding machine, featuring a high-performance CNC system.

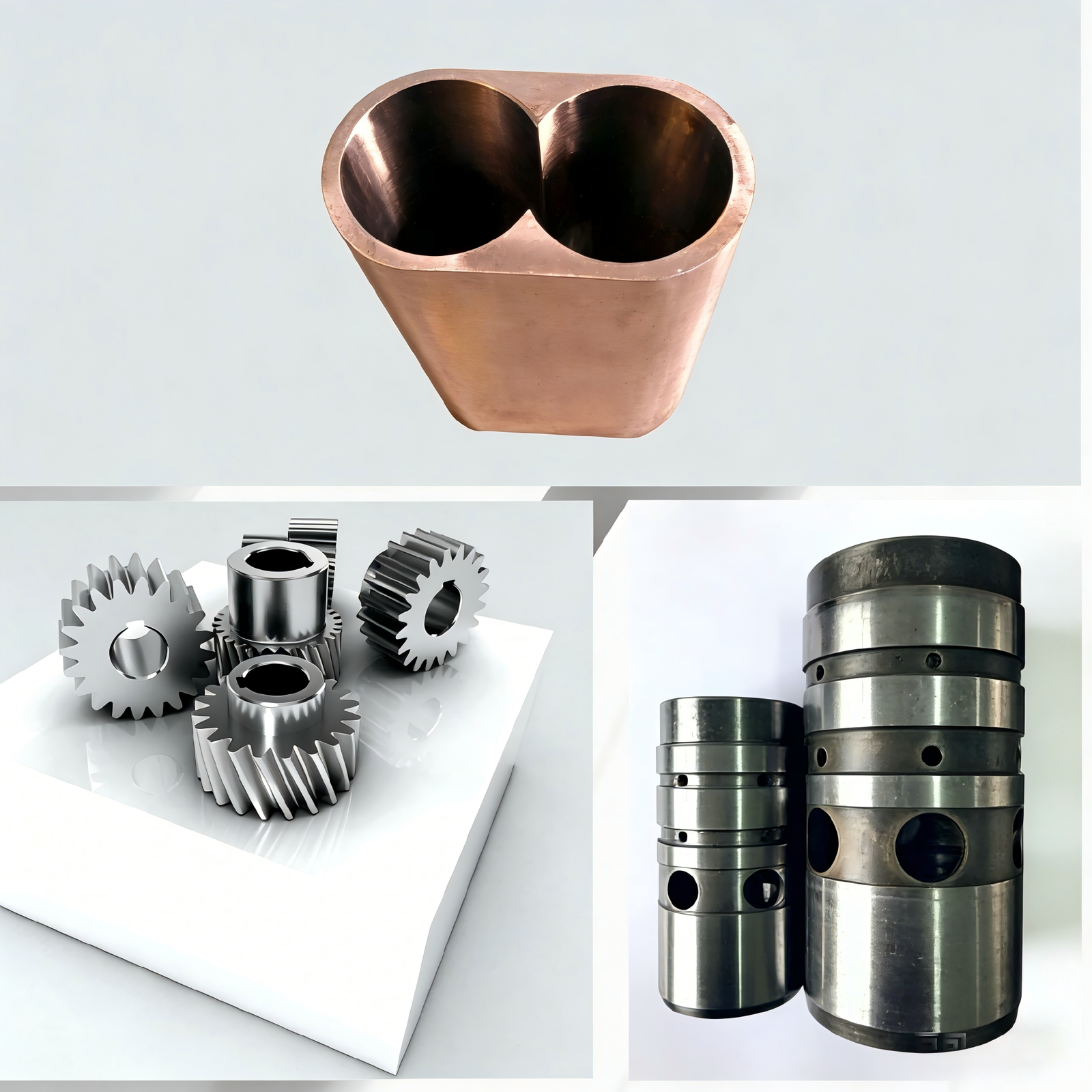

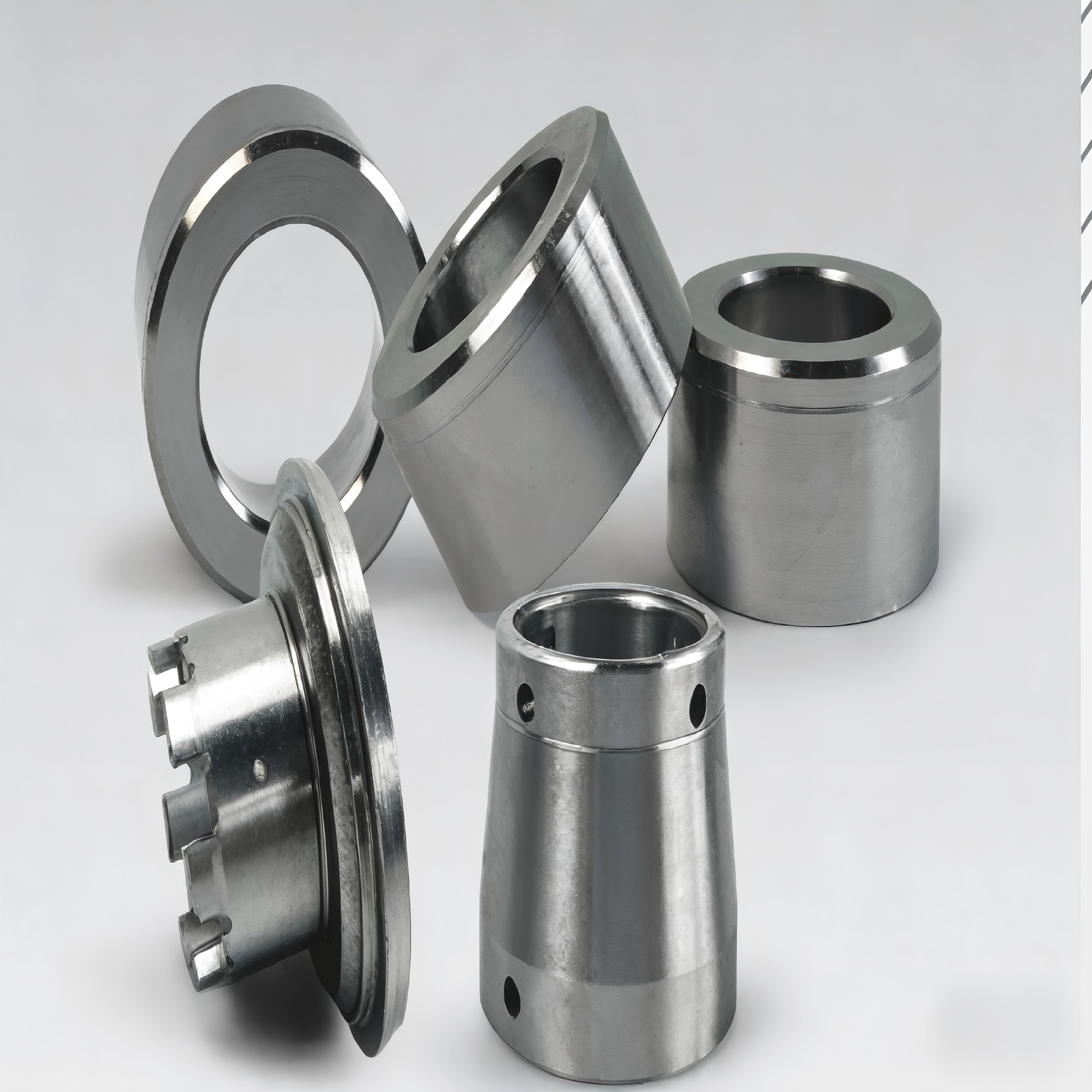

It is capable of machining internal straight bores, internal end faces, internal grooves, internal steps, internal fillets, internal tapers, and external end faces.

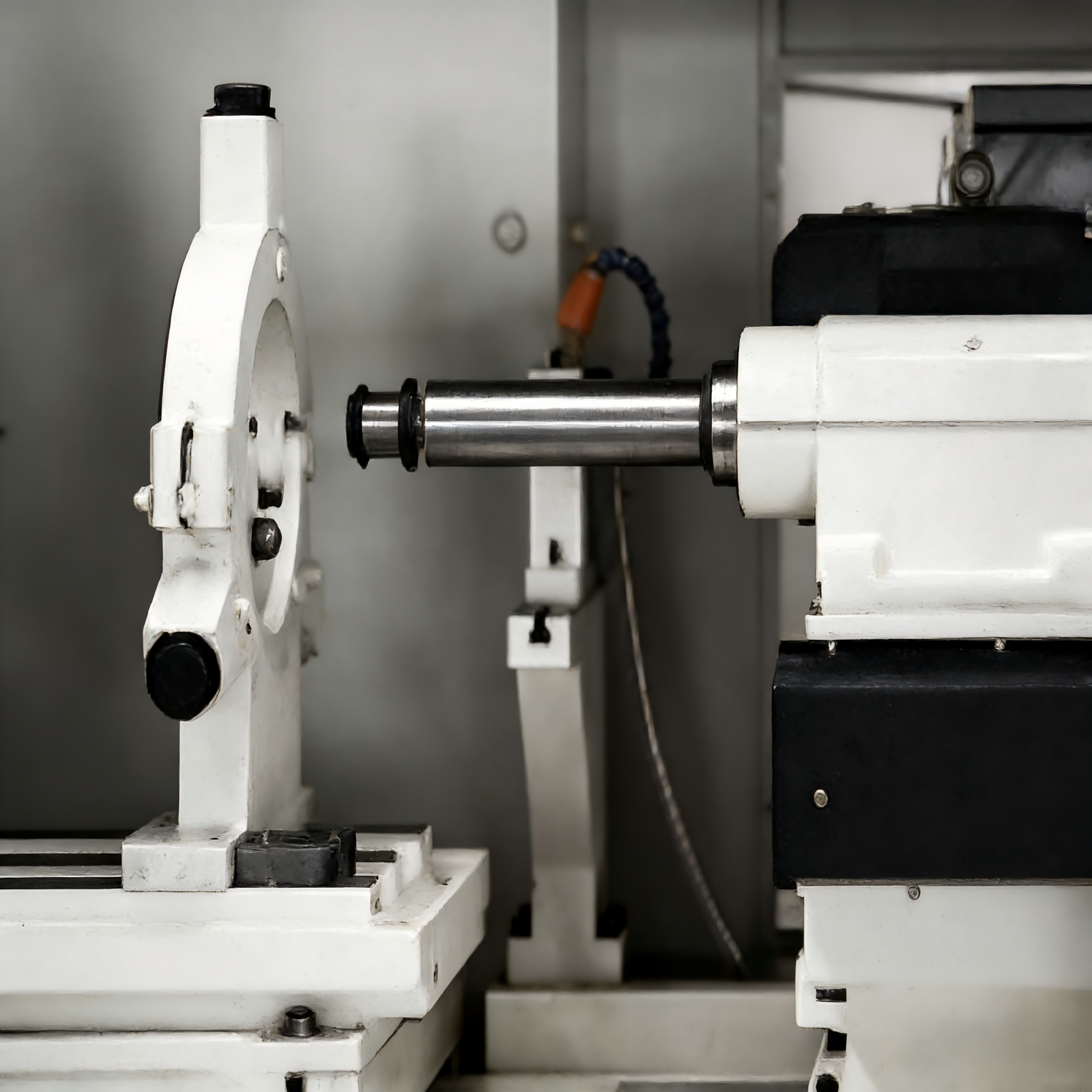

It offers the option of either a mechanical spindle or an electric spindle.
For high-volume production, it can be integrated with various robotic automation systems.

Internal Cylindrical Grinding Machine

Model	Unit	15-15CNC	20-20CNC	20-60CNC	50-45CNC	50-100CNC
Maximum Swing Diameter	mm	530	400	500	800	900
Grinding Hole Range	mm	06～150	Ø30～200	Ø30～200	50～500	Ø100～500
Grinding Depth	mm	150	200	600	450	1000
Maximum Table Travel	mm	500	600	1000	800	1300
Maximum Workpiece Weight	kg	50	150	500	500	1200
Grinding Head Spindle Speed	rmp/min	Select based on the workpiece hole diameter.
