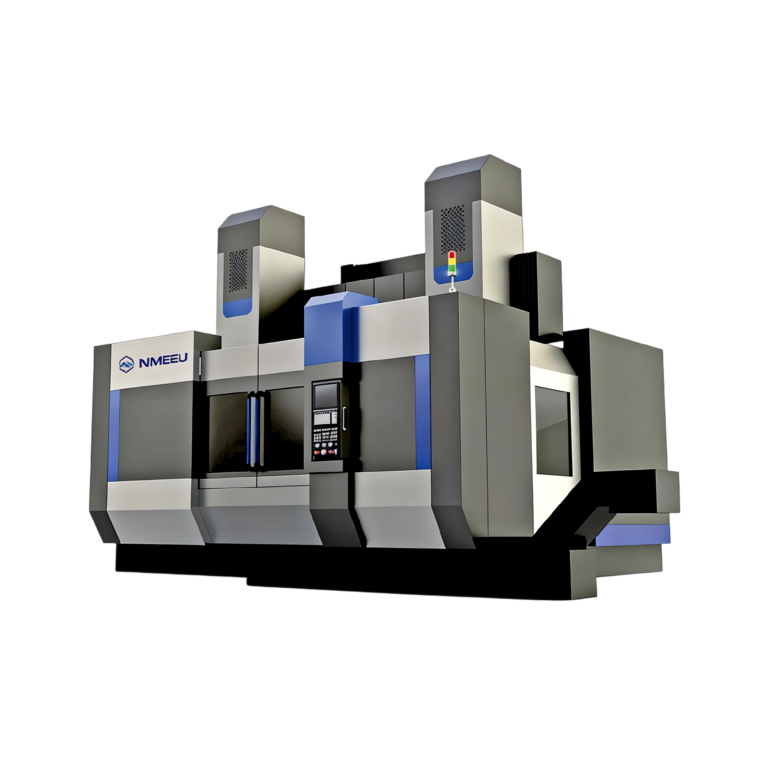

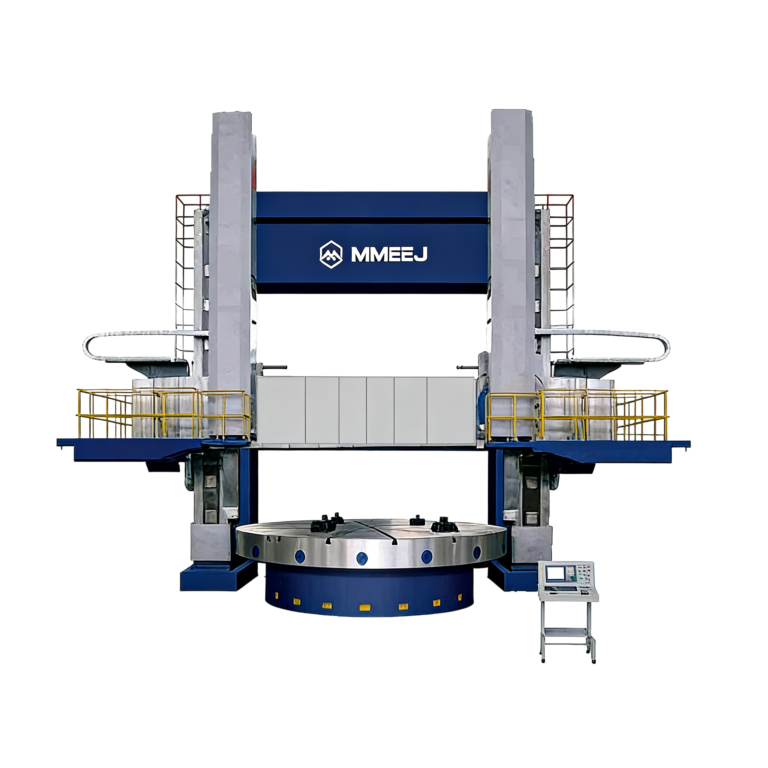

CNC Double Column vertical lathe F series
Machine Material: HT250-HT300 gray cast iron, aged & stress-relieved,high rigidity, minimal deformation
Material Hardness: ≥ HB180; rough machining→secondary aging →finish machining
Manual Scraping: Contact surfaces hand-scraped for low friction & oxide layer; crossbeam with convexity; PTFE soft strips on tool post slideways
Gear & Gear Ring: Forged, quenched, ground gears (40Cr, 45 steel); ground spacers/shim for assembly precision
Spindle&Ram: QT600 ductile (nodular) cast iron
Ball Screw: Domestic brand (NJGR/Hanjiang), ф63 mm
Electrical & Bearings: Chint electrical with overload protection; HRB/LY-C/C&U bearings

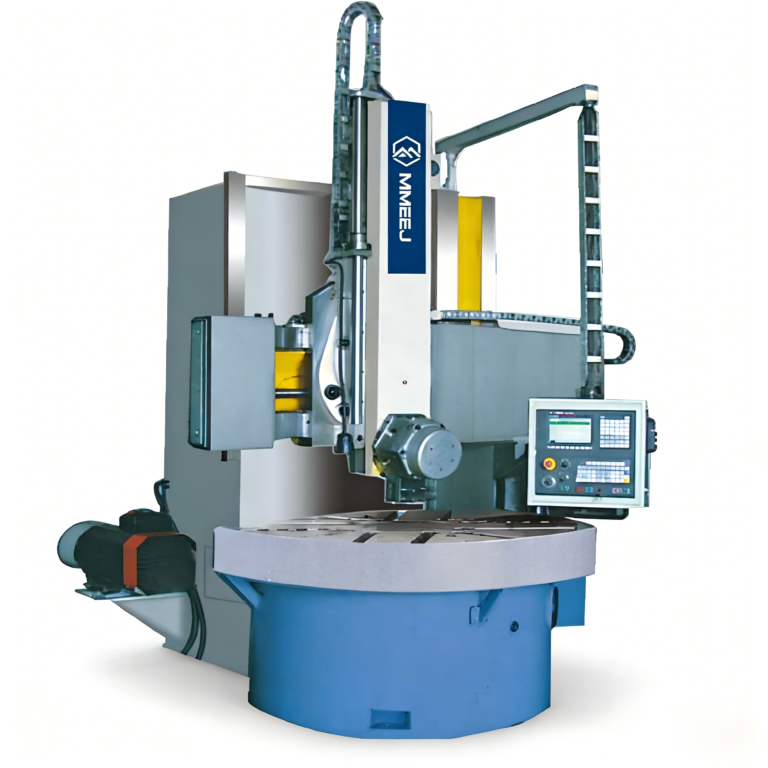

CNC Single Column Vertical Lathe F series
Machine Material: HT250-HT300 gray cast iron, aged & stress-relieved, high rigidity, minimal deformation
Material Hardness: ≥ HB180;rough machining→secondary aging finish machining
Manual Scraping: Contact surfaces hand-scraped for low friction & oxide layer; crossbeam with convexity; PTFE soft strips on tool post slideways
Gear & Gear Ring: Forged, quenched, ground gears (40Cr, 45 steel); ground spacers/shim for assembly precision
Spindle&Ram: QT600 ductile (nodular) cast iron
Ball Screw: Domestic brand (NJGR/Hanjiang), ф63 mm
Electrical & Bearings: Chint electrical with overload protection; HRB/LY-C/C&U bearings

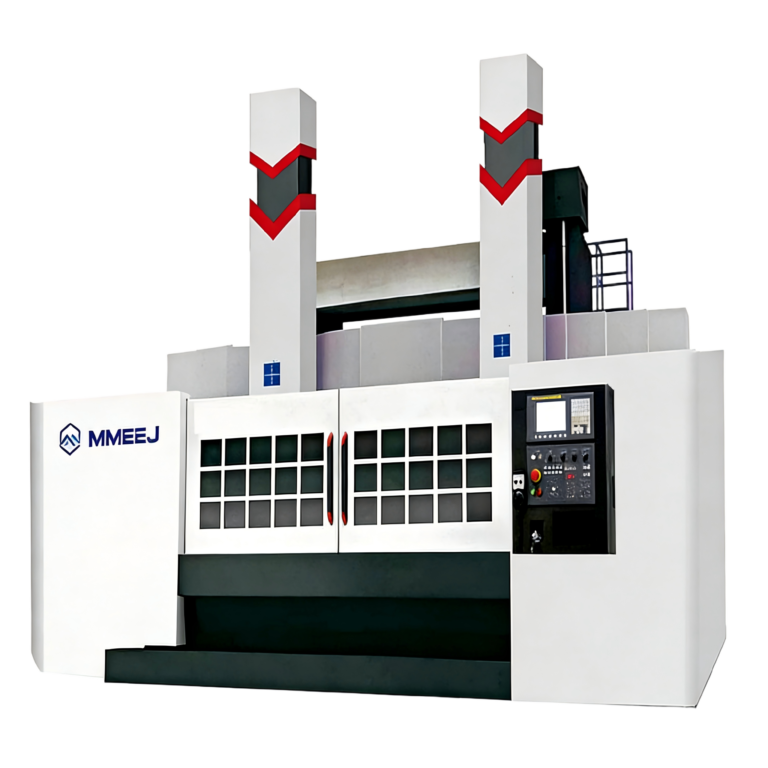

Double Column Vertical Lathe D series
Product Introduction：
Machine Material: HT250-HT300 gray cast iron, aged & stress-relieved,high rigidity, minimal deformation
Material Hardness:> HB180;rough machining→secondary aging →finish machining
Manual Scraping:Contact surfaces hand-scraped for low friction &oxide layer; crossbeam with convexity; PTFE soft strips on tool post slideways
Gear & Gear Ring:Forged, quenched, ground gears (40Cr, 45 steel);ground spacers/shim for assembly precision
Spindle & Ram:QT600 ductile (nodular) cast iron
Ball Screw:Domestic brand (NJGR/Hanjiang), ф63 mm
Standard Single Column D Series
Machine Material:HT250-HT300 gray cast iron, aged & stress-relieved, high rigidity, minimal deformation
Material Hardness:≥ HB180; rough machining→secondary aging →finish machining
Manual Scraping:Contact surfaces hand-scraped for low friction &oxide layer; crossbeam with convexity; PTFE soft strips on tool post slideways
Gear & Gear Ring:Forged, quenched, ground gears (40Cr, 45 steel);ground spacers/shim for assembly precision
Spindle&Ram: QT600 ductile (nodular) cast iron
Ball Screw: Domestic brand (NJGR/Hanjiang), ф63 mm

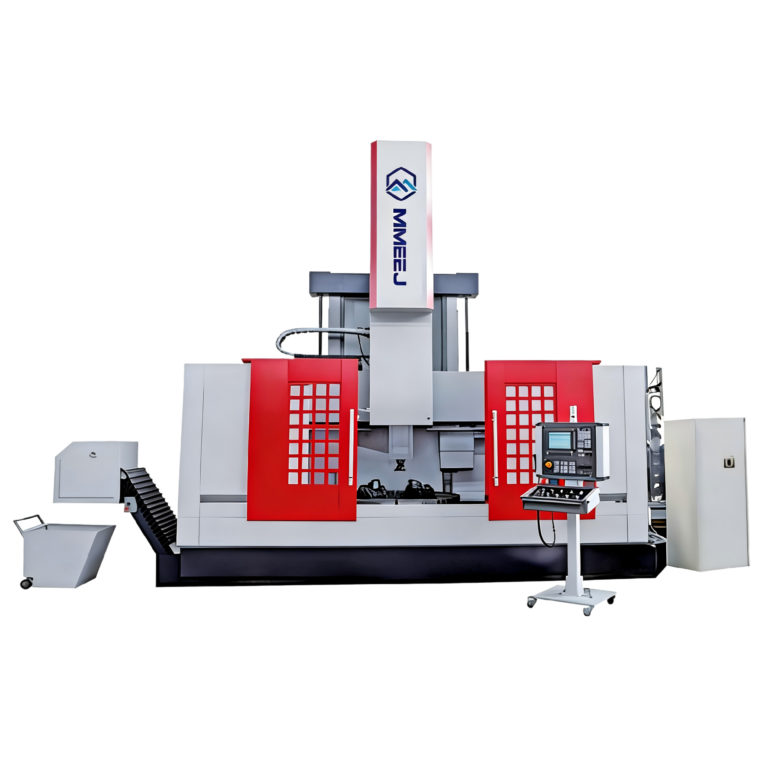

Vertical Lathe（CK51-HC turning and milling composite series）
The CK51-HC series single column CNC vertical turning iron composite machinetoolis a new product developed by ourcompany.
The product technology is mature and reliable in performance.
It can complete multiple processes such astuming,drilling, tapping, and reaming with a one-time clamping. It can be grinded grinding wheel, andcan complete side machining with angle milling head.
The worktable spindle is centered radially using high-precision double rical roller bearings, andaxially using high-precision large thrust bearin rolling guides. Alternatively, alternating and alternating rotationcan alsbe used.
The workbench has a indexing function, which can eliminate transmissionarance of the gears when theC-axis fed and transmitted, so that the positioning accuracy ofthe C-axis can reach plus or minus 5 arcseconds.
Vertical Lathe（CK51-HM CNC turning and grinding machine）
The CK51 -HM series single column numerical control vertical car, grinding mpound machine tool, is our own research and development of the domesthe and foreign
advanced level of vehicle, grinding integrated machine tool. Suitable fior mechanical manufacture industry and valves, automotive parts, grinding tools, aerospace,
military products and other industries.
The crossbeam is equipped with two CNC turrets, the right tool rest is Ig tool rest, the left tool rest grind the tool carrier, andthe workpiece ed by
one clamping to realize two processes of vehicle and grinding, which can improve work eficiency andreduce cost.Improve processing precision and reduce labor
intensity.
The grinding head adopts the electric spindle structure, the electric smounted on the lower end ofthe ram, and the watercooling mode is adoptedto keep
the motorized spindle running for a long time, ensuring the running speed and the noise ofthe grindinghead are high.The torque is big and thhe stability is good.
The worktable is a thermo symmetric structure. The main shaft radialadopts the high-precision adjustable radial dearancedouble row shorcylindrical roller
bearing centring, and the axial hieh-precision thrust bearing is used for rolling guide.Cross rollerbearings can also be used for rail.
