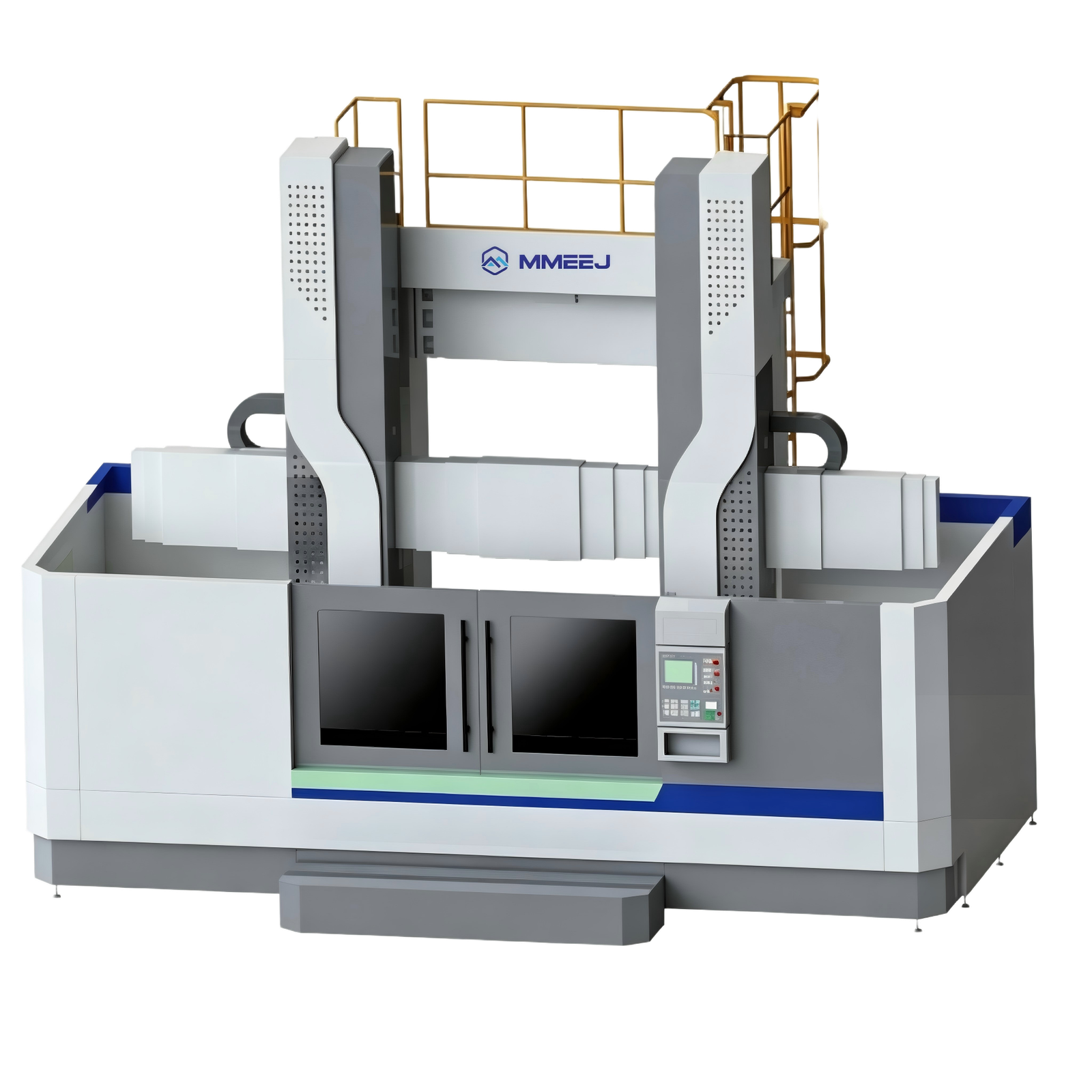

Vertical Lathe（CK52-HA CNC double column vertical lathe）
The CK52-HA series CNC lathe is a kind of advanced equipment with good performanced a wide range of technology, highproduction eficiency, machining applicab industries, can be used for inner and outer cylinder and inner and outerconicasurface and grooving,arc curve surface,and various threads ofrough and fnish machining.

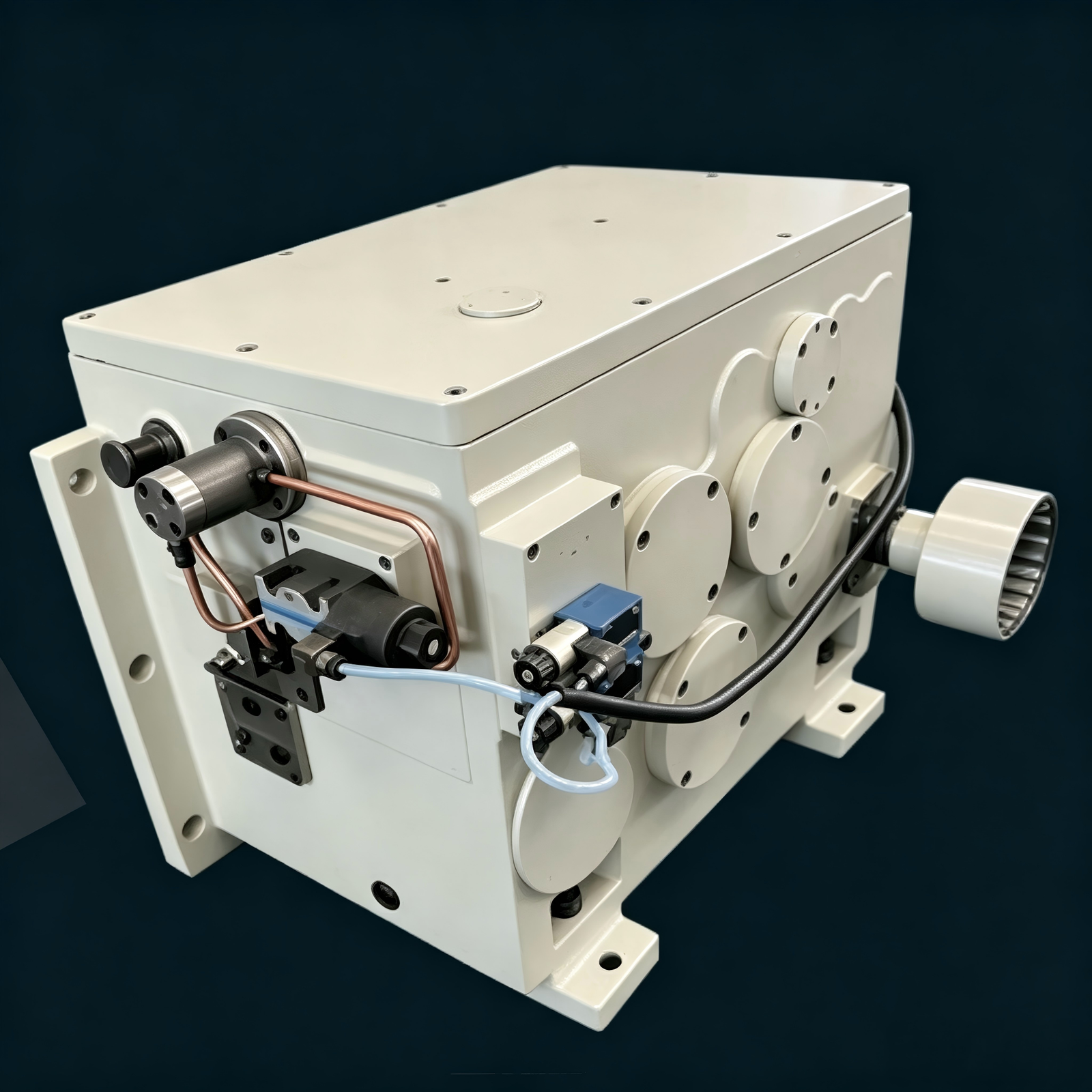

The main drive of machine tool is divided into two kinds of motor driven by AC and DC.The speed range ofthe worktableis realized by the exchange through the l6 stage spindle speed changing mechanism and the two gear transmission through DC.

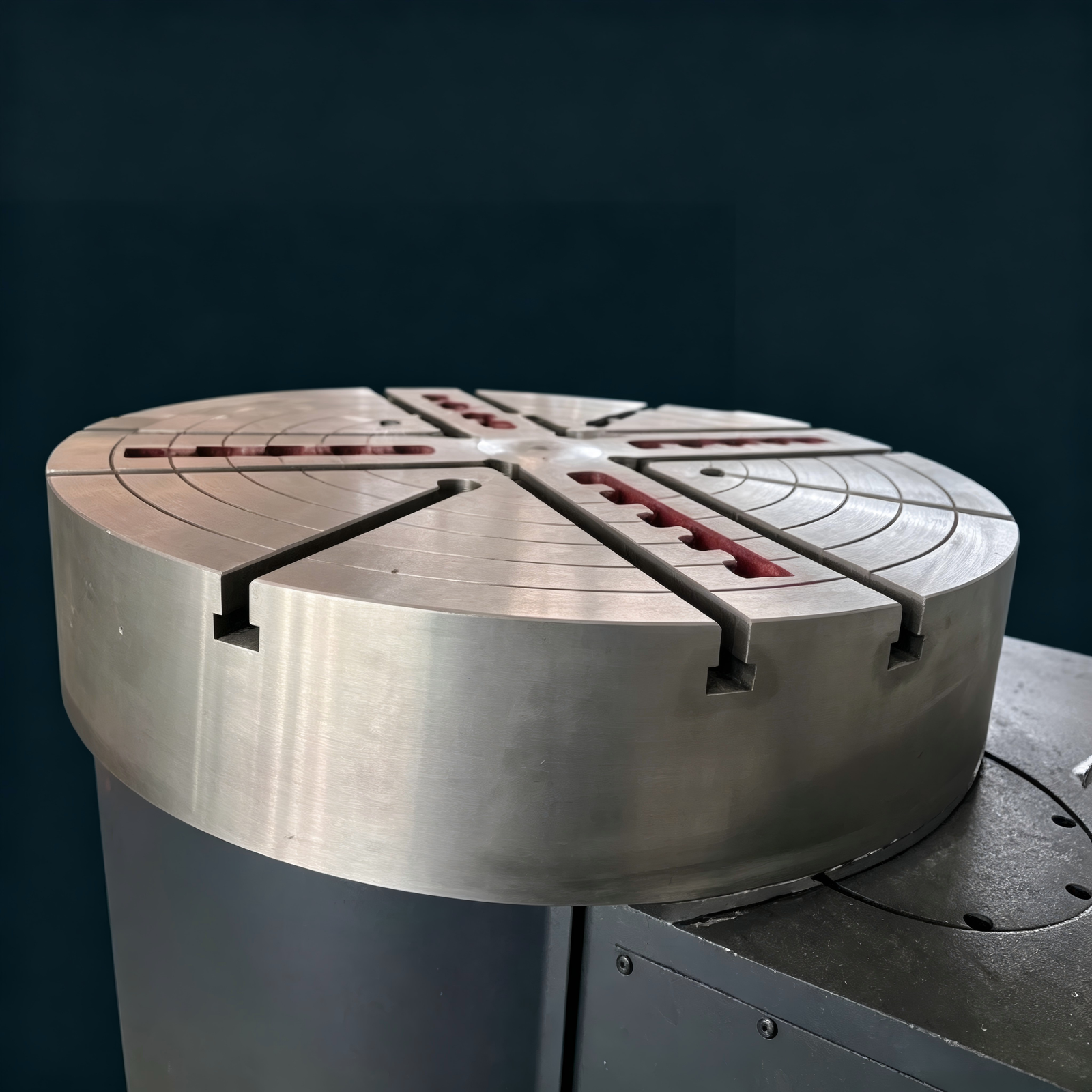

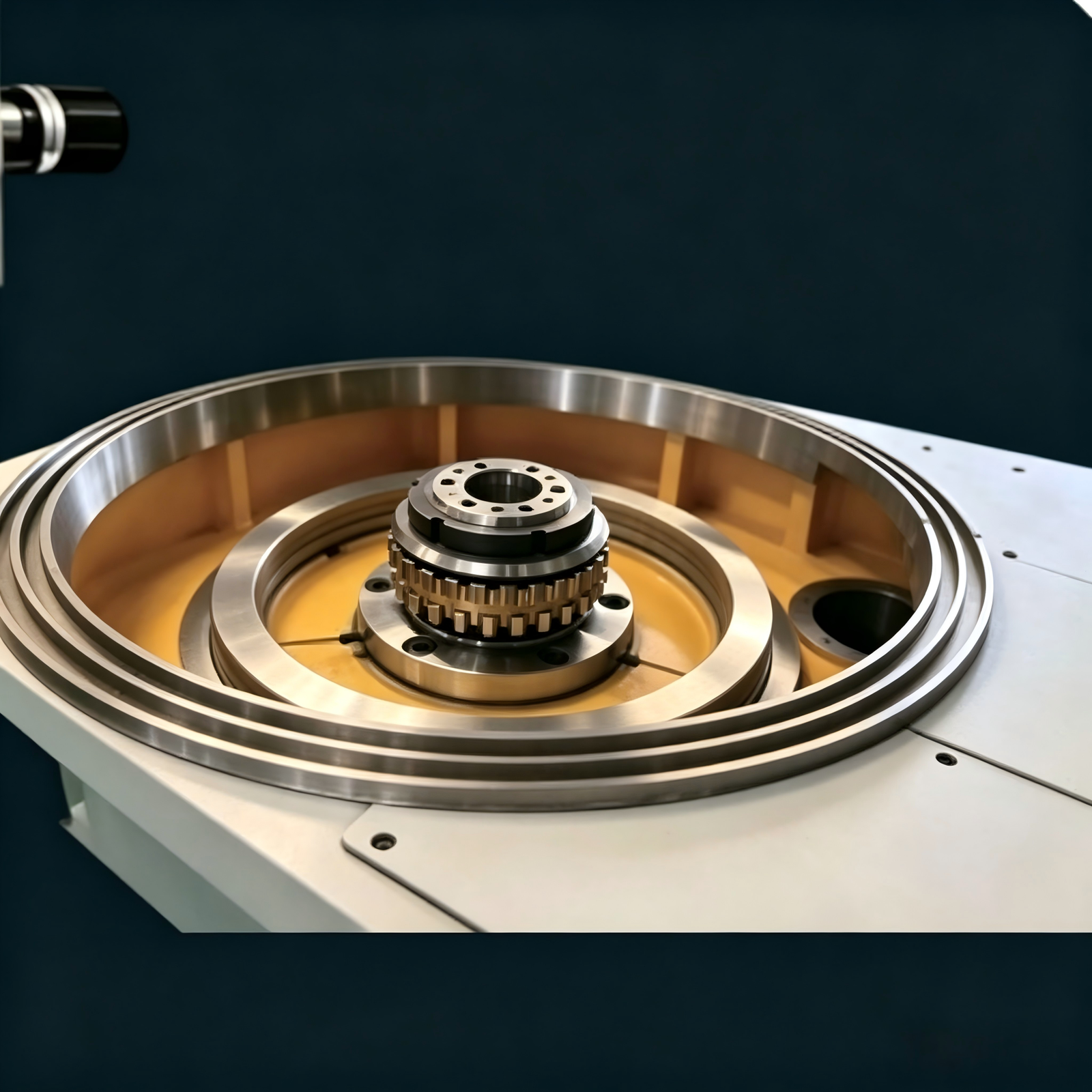

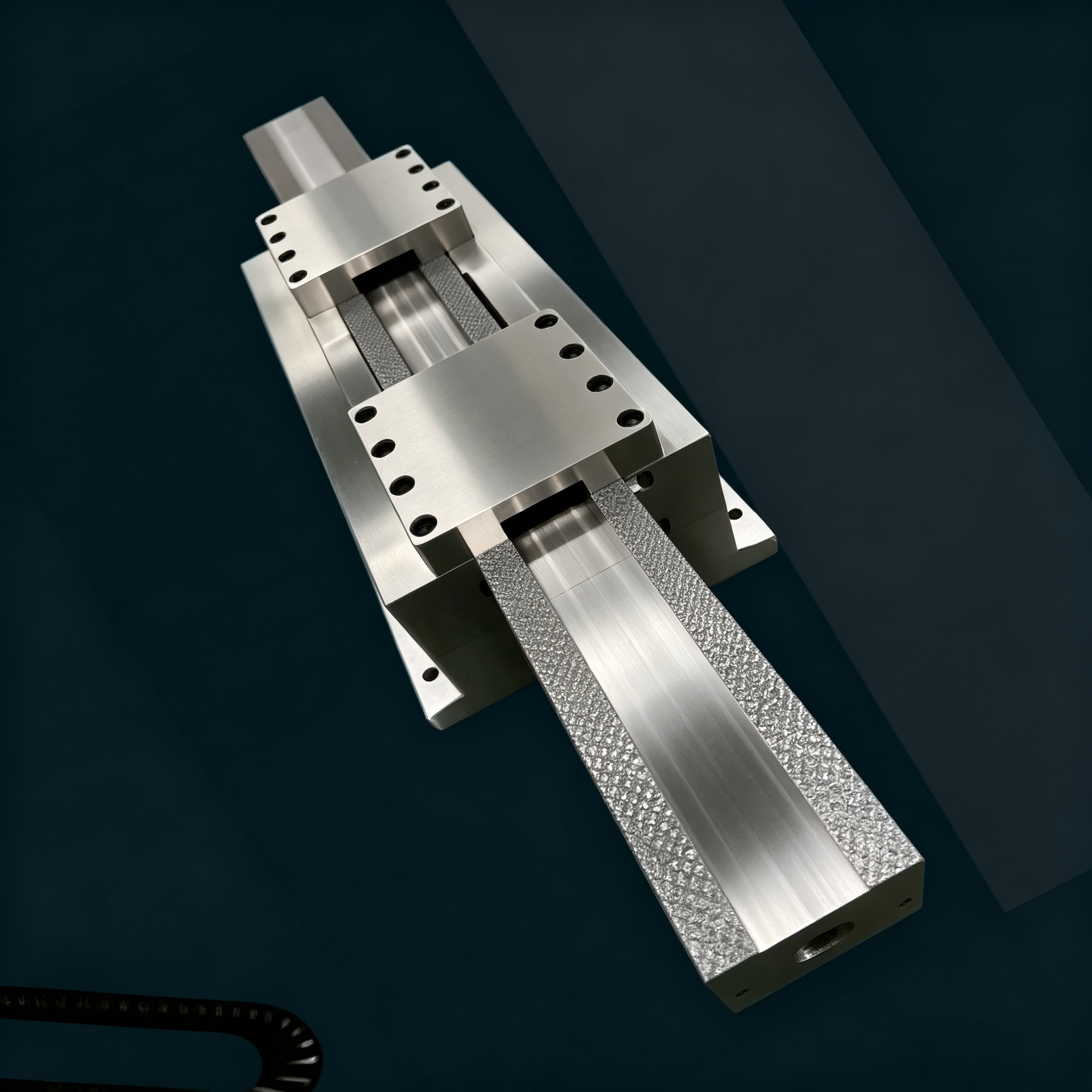

The main shaft of the worktable adopts the high accuracy adjustable raadial clearance double row short cylindrical rollerbearing centring.the worktable adopts the constant current hydrostatic guide way,so that the worktable has the characteristics oihigh rotation accuracy,large bearing capacity and small thermal deformation.

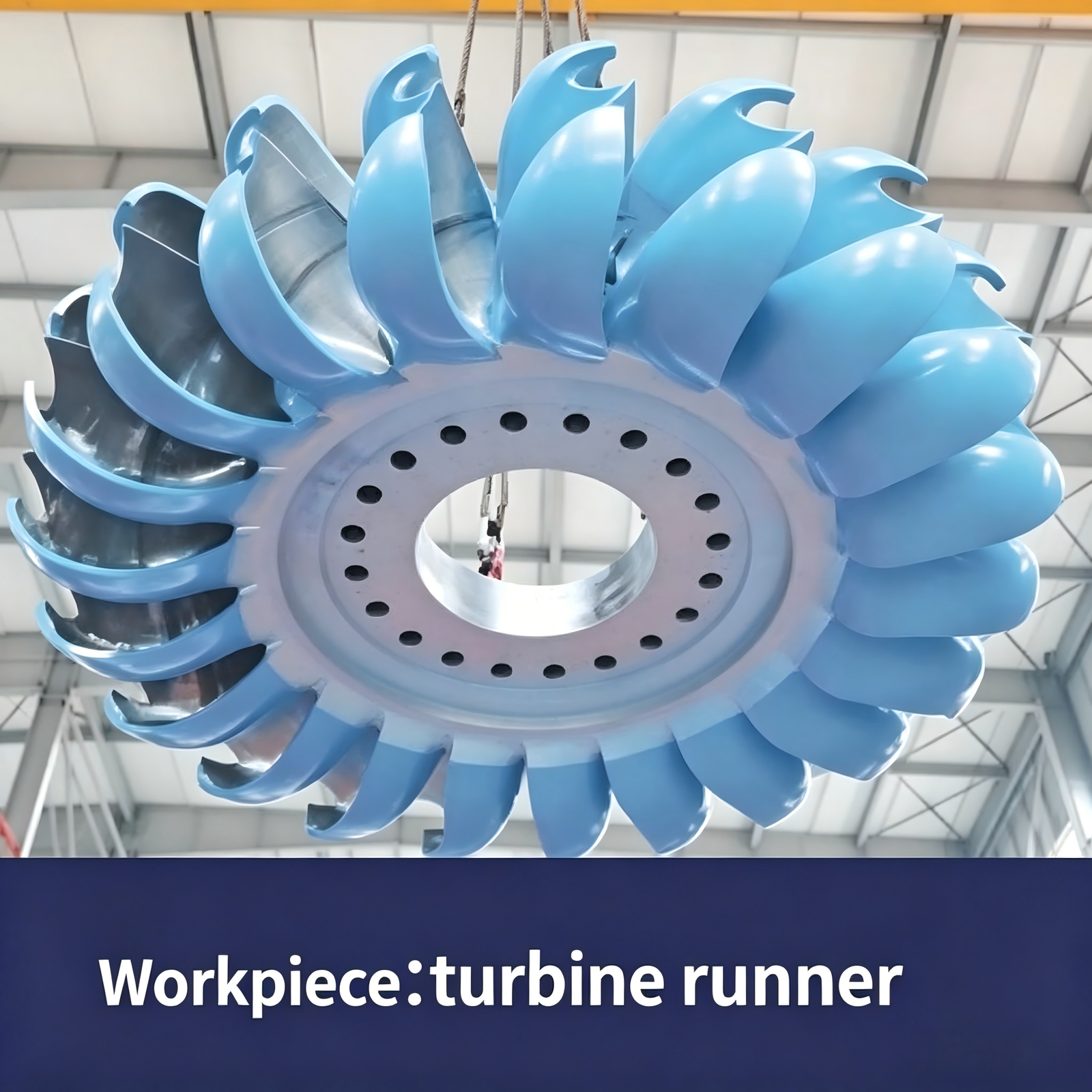

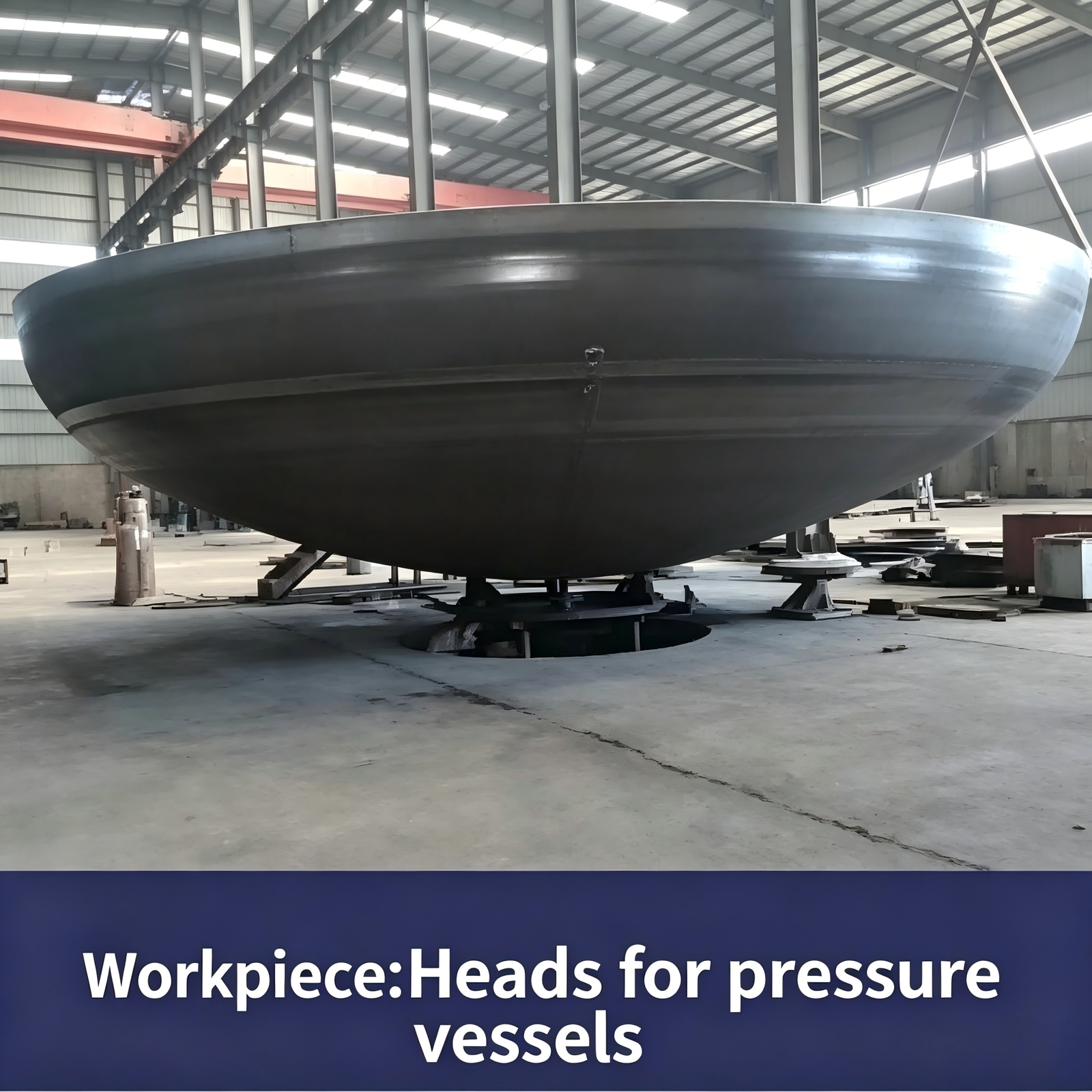

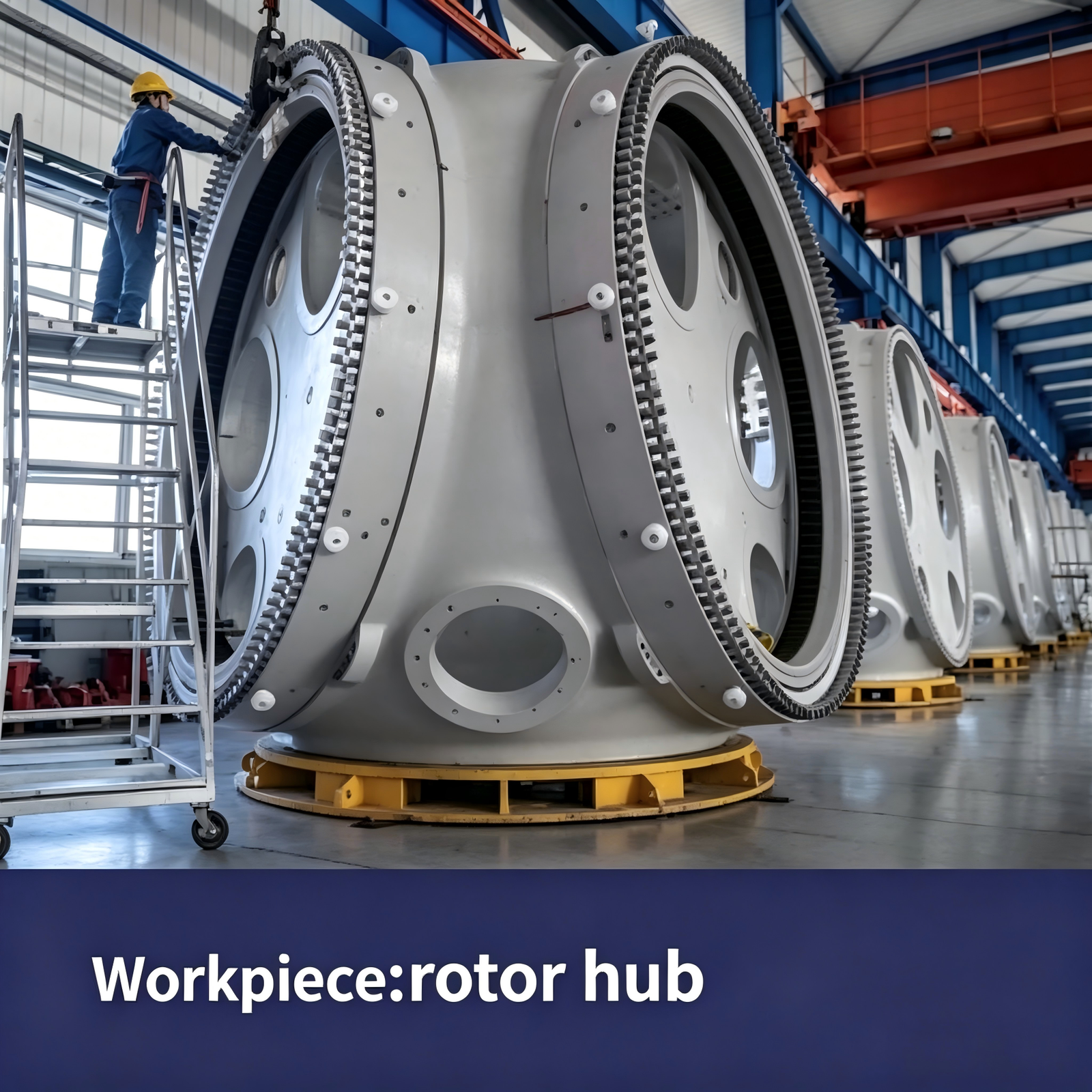

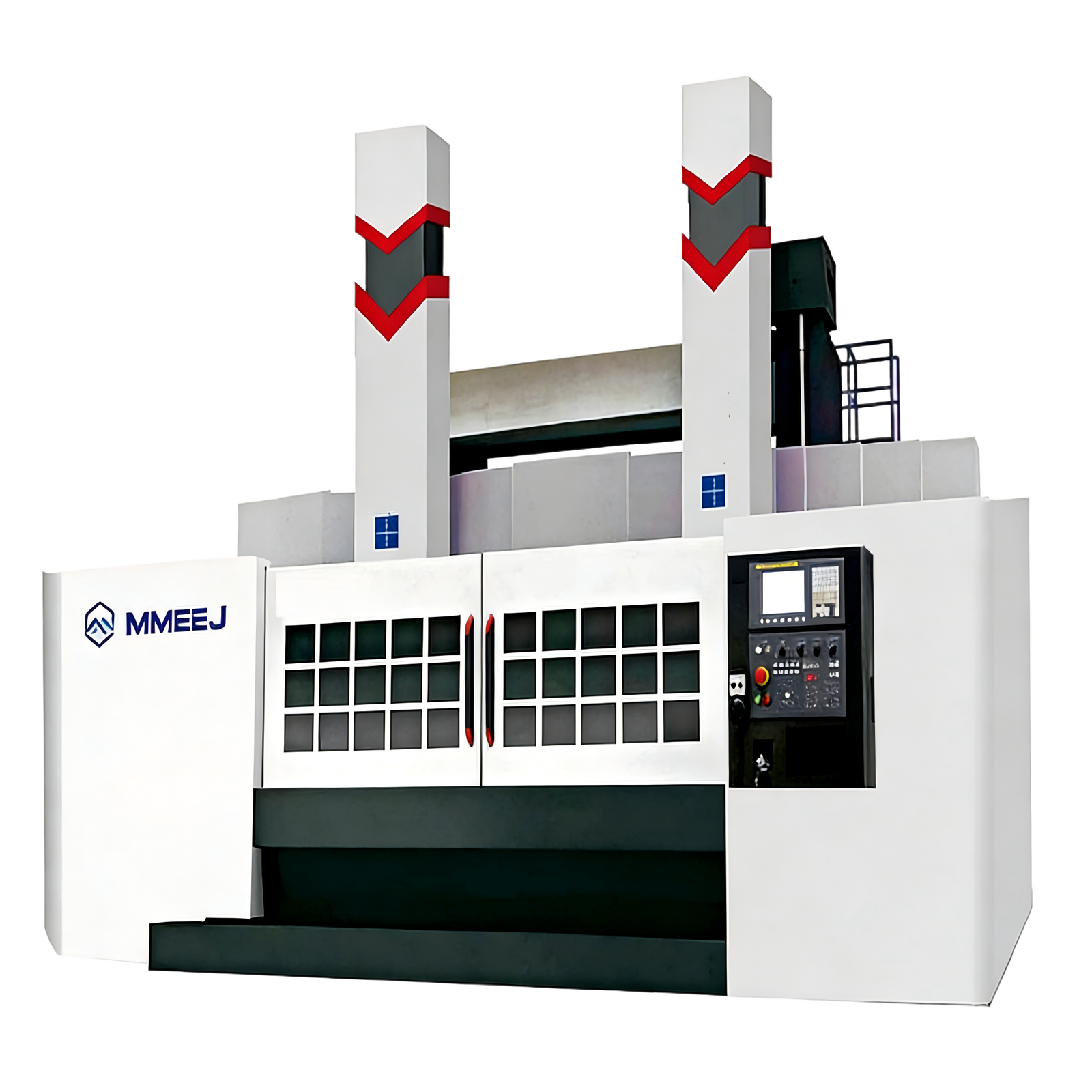

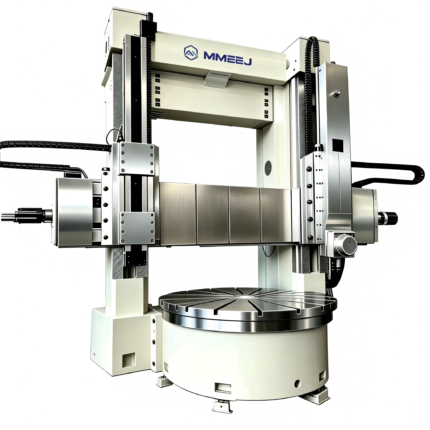

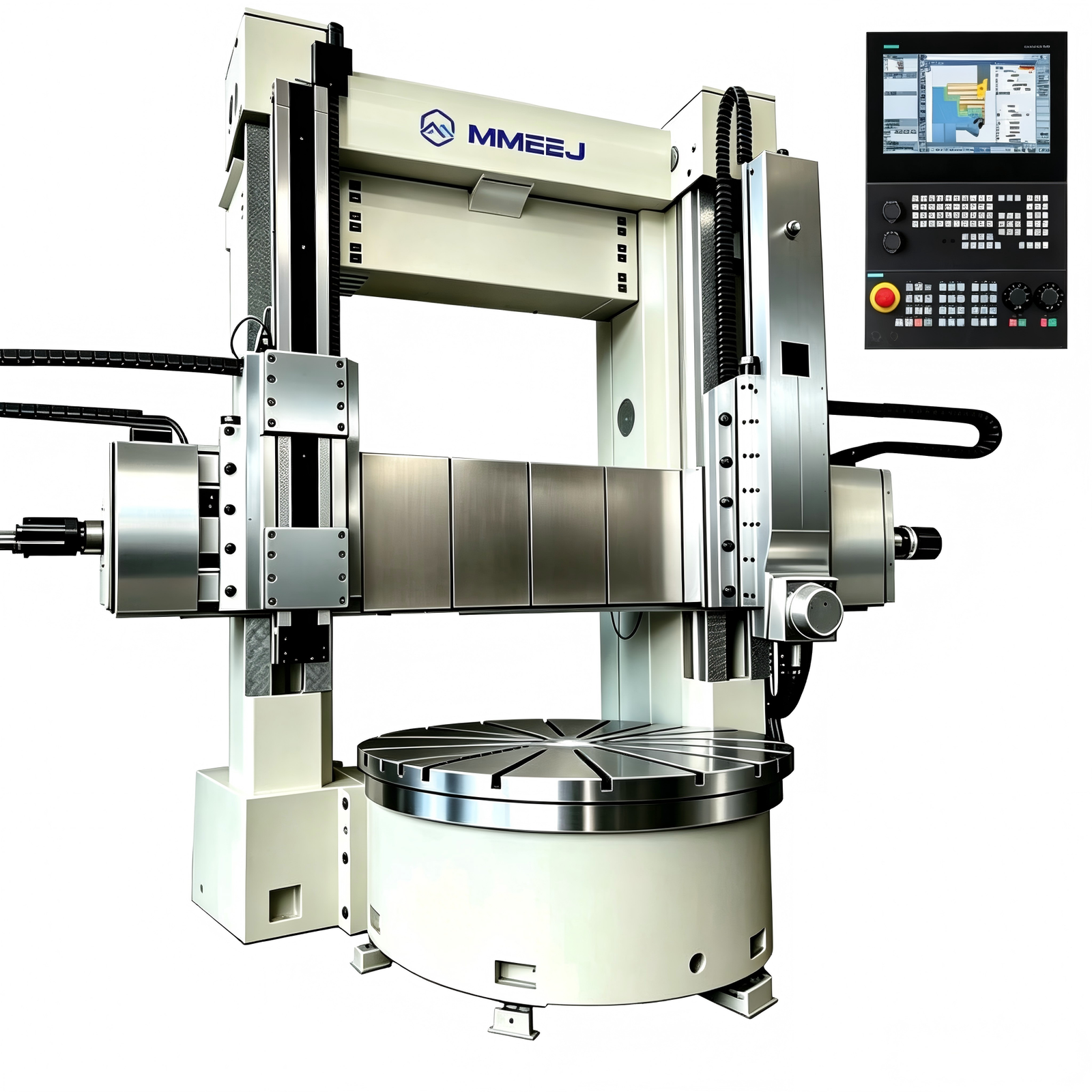

CK52-HA CNC double column
| Product model | Unit | CK5225-HA | CK5231-HA | CK5240-HA | CK5250-HA | CK5263-HA | CK5280-HA | CK5290-HA | CK52100-HA |
| Maximum processing diameter | mm | 2500 | 3150 | 4000 | 5000 | 6300 | 8000 | 9000 | 10000 |
| Maximum processing height | mm | 1600/2000/2500 | 2000/2500 | 1600/2000/3150 | 2500/3150 | 3200 | 3150/4000 | 3150/4000 | 4000 |
| Maximum load-bearing | T | 10/20 | 20/32 | 65 | 65/80 | 80/120 | 100/120 | 200 | |
| Table size | mm | 2250 | 2830 | 3200/3600 | 4500 | 4500/5700 | 7200 | 8000 | 8500 |
| Main motor power | KW | 55 | 75 | 90 | 132 | 160 | |||
| Working table rotation range | r/min | 2-63 | 0.4-20 | 0.4-32 | 0.4-20 | 1-20 | |||
| Horizontal stroke of verticaltool holder X | mm | -20-1400 | -20-1840 | -20-2150 | -20-2760 | -20-3415 | -20-4400 | -20-4700 | -50-5200 |
| Vertical tool postram stroke Z | mm | 1000/1250 | 1250/1600 | 1600/2000 | 2100 | ||||
