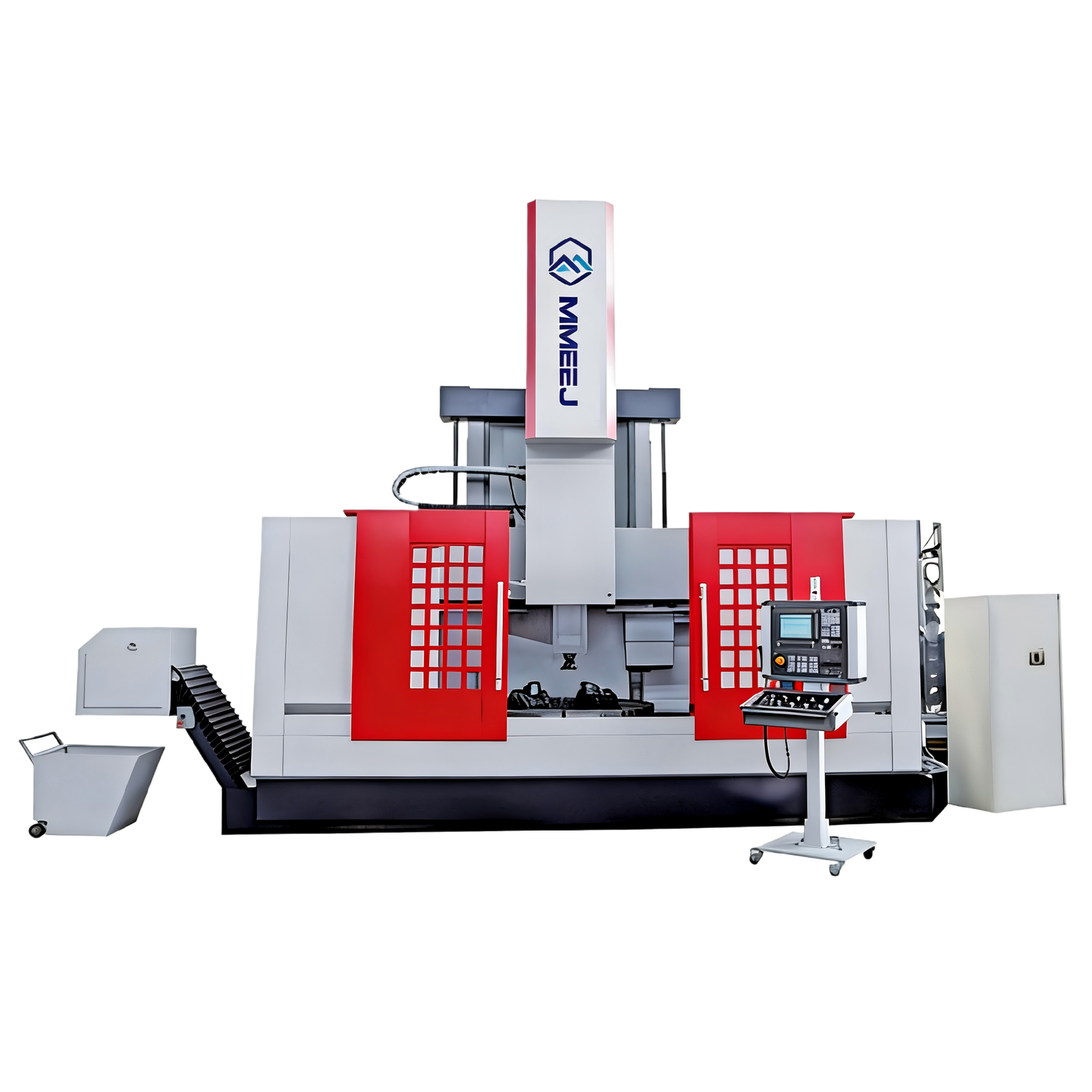

Vertical Lathe（CK51-HC turning and milling composite series）
The CK51-HC series single column CNC vertical turning iron composite machinetoolis a new product developed by ourcompany.
The product technology is mature and reliable in performance.
It can complete multiple processes such astuming,drilling, tapping, and reaming with a one-time clamping. It can be grinded grinding wheel, andcan complete side machining with angle milling head.
The worktable spindle is centered radially using high-precision double rical roller bearings, andaxially using high-precision large thrust bearin rolling guides. Alternatively, alternating and alternating rotationcan alsbe used.
The workbench has a indexing function, which can eliminate transmissionarance of the gears when theC-axis fed and transmitted, so that the positioning accuracy ofthe C-axis can reach plus or minus 5 arcseconds.
CK51-HC turning and milling
| Product model | Unit | CK5112-HC | CK5116-HC | CK5120-HC |
| Maximum processing diameter | mm | 1400 | 1730 | 2200 |
| Maximum rotation diameter | mm | 1500 | 1800 | 2300 |
| Maximum processing height | mm | 1200/1400/1600 | 1200/1600/2000 | 1600/2000 |
| Maximum load-bearing | T | 5 | 8 | 10 |
| Workbench size | mm | 1200 | 1500 | 2000 |
| Main motorpower | KW | 22/30 | 30/37 | 37/45 |
| Spindle speed | r/min | 1-350 | 1-300 | 1-200 |
| Second spindle power | KW | 5.5/7.5 | 5.5/7.5 | 7.5/11 |
| Second axis rotation speed | r/min | 2-4000 | 2-3000 | 2-3000 |
| Horizontal stroke of vertical toolholder X | mm | -150-1150 | -150-1350 | -300-1550 |
| Vertical tool post ram stroke Z | mm | 800 | 800/1000 | 1000 |
| Cross beam up and down stroke | mm | 800/1000/1200 | 800/1000/1200 | 1200/1600 |
| Tool holder form | style | BT50-12 | ||
