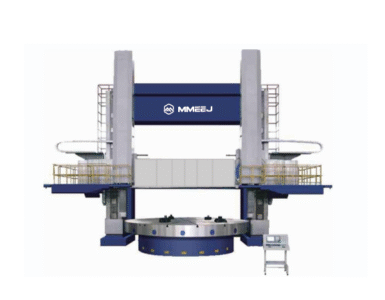

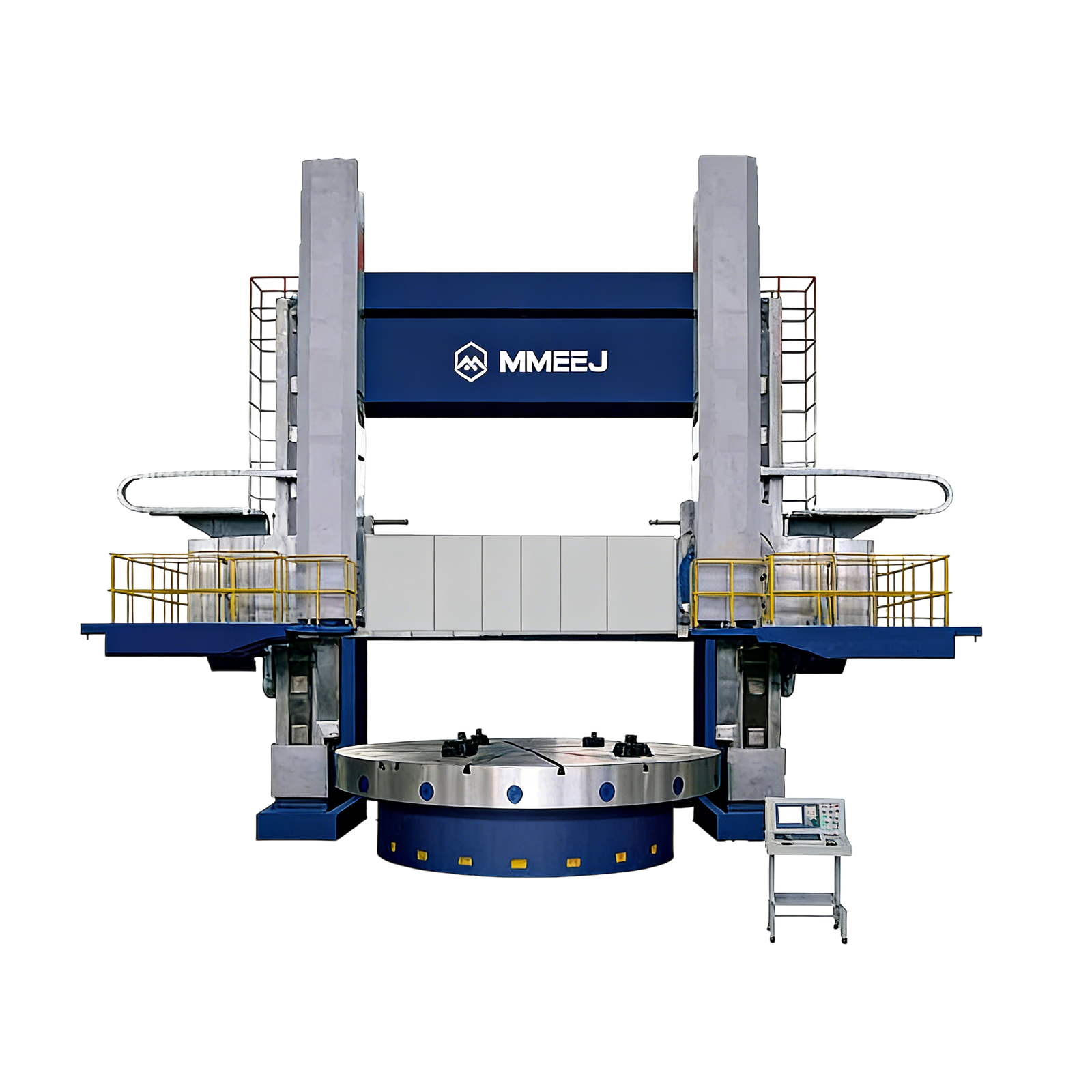

Double-column Programmable Vertical Lathes

Product Introduction：

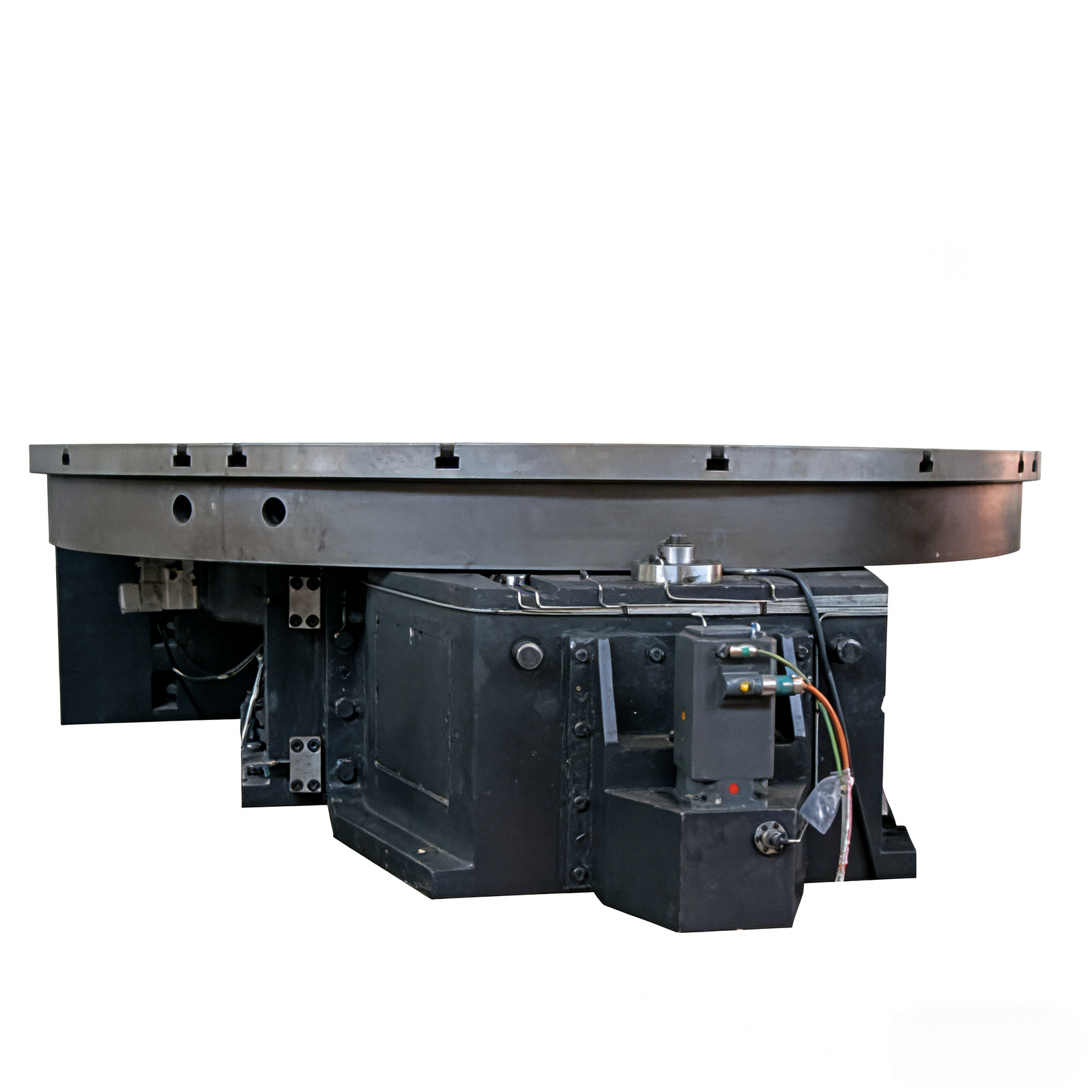

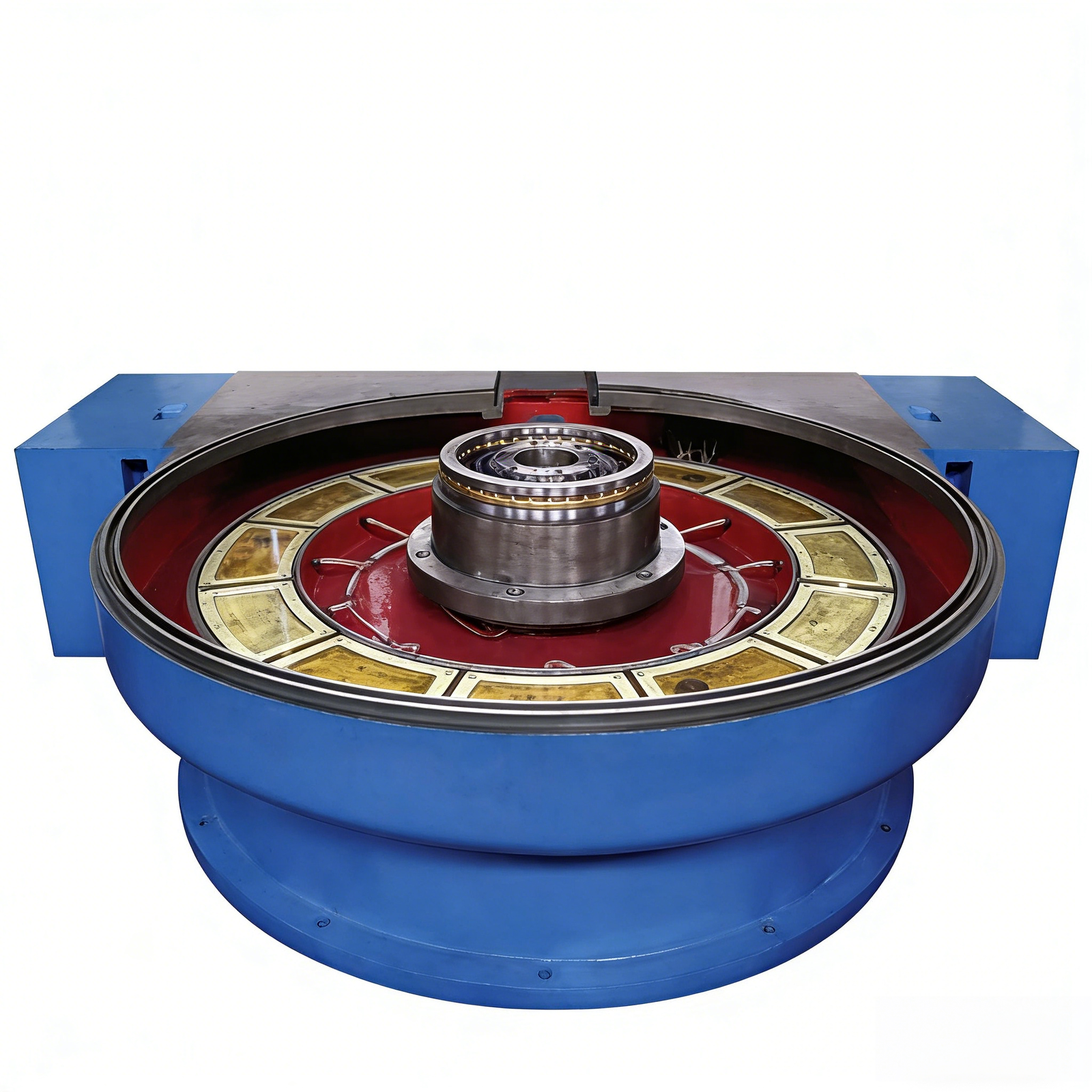

 The worktable and worktable base adopt an integral cast thermosymmetrical structure. The spindle bearing uses high-precision double-row short cylindrical ball bearings, and the worktable guide rail uses constant current hydrostatic guide rails.

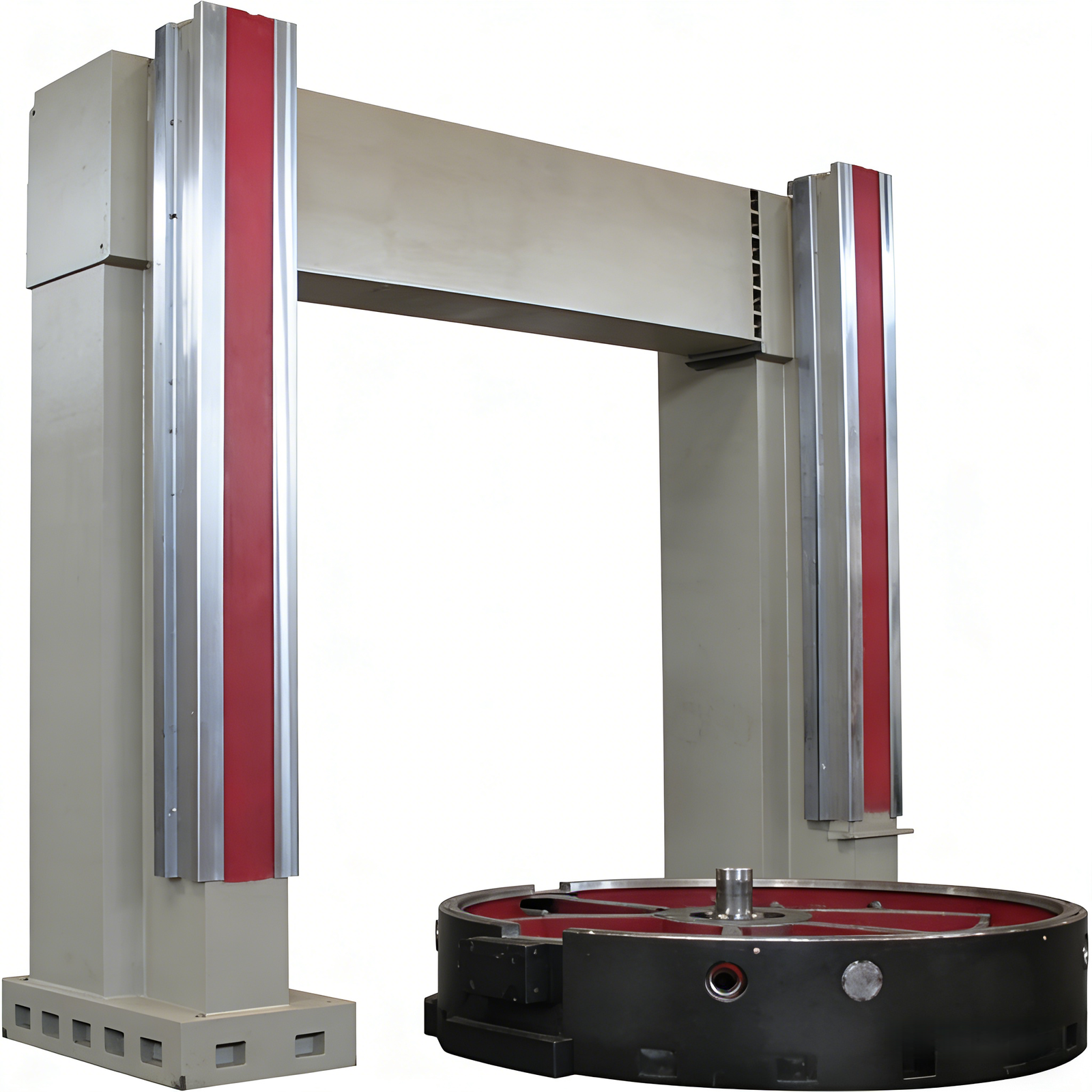

 Through finite element analysis calculations, a closed gantry frame structure is implemented to achieve the optimal stress state for the machine tool.

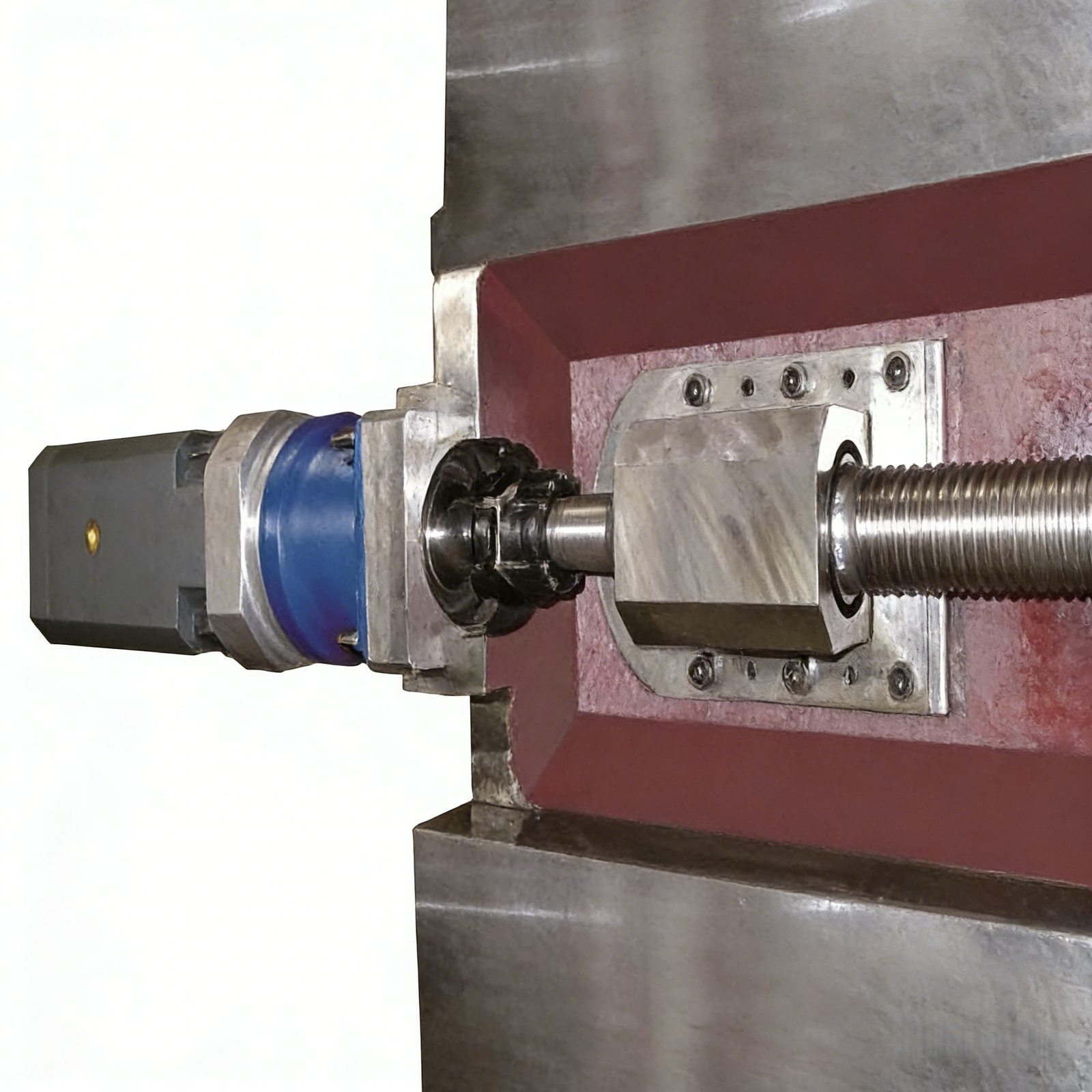

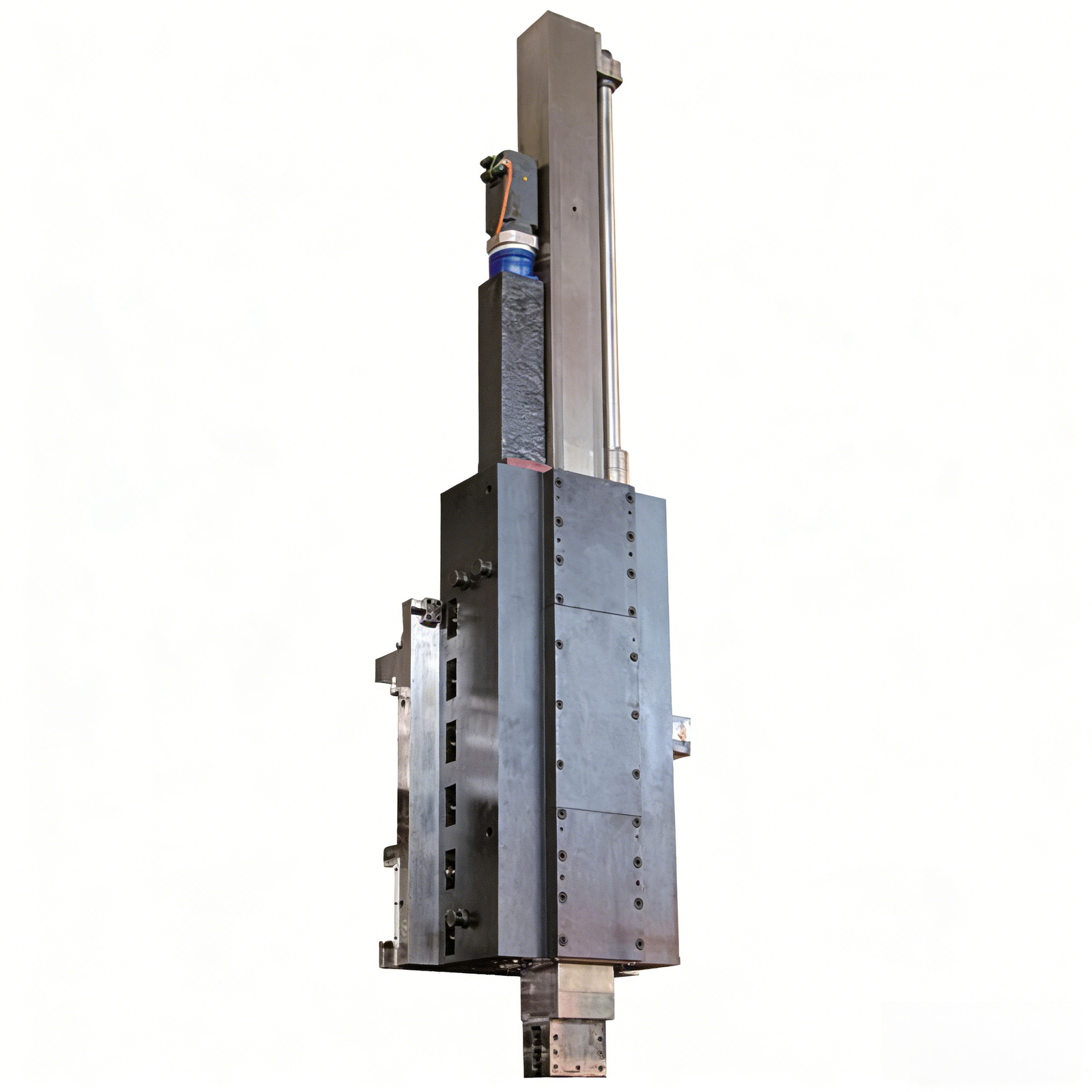

The vertical tool post uses sliding guide rails or constant current hydrostatic guide rails for horizontal movement, and sliding guide rails or roller-sliding composite guide rails for vertical movement. The feed is driven by an AC servo motor and ball screw transmission.

 The main drive of the machine tool is driven by a DC motor, and the required speed of the worktable is achieved through two-speed mechanical transmission.

The CNC system adopts Siemens, Fanuc.

According to user needs, tool magazines, in-machine tool setting devices, automatic workpiece measuring devices, grinding functions, cooling and chip removal devices, and other functional components can be provided.

Complete process solutions are provided to users.

The C52 series, including models C5225-52100, has a machining diameter ranging from 2500mm to 10000mm.
