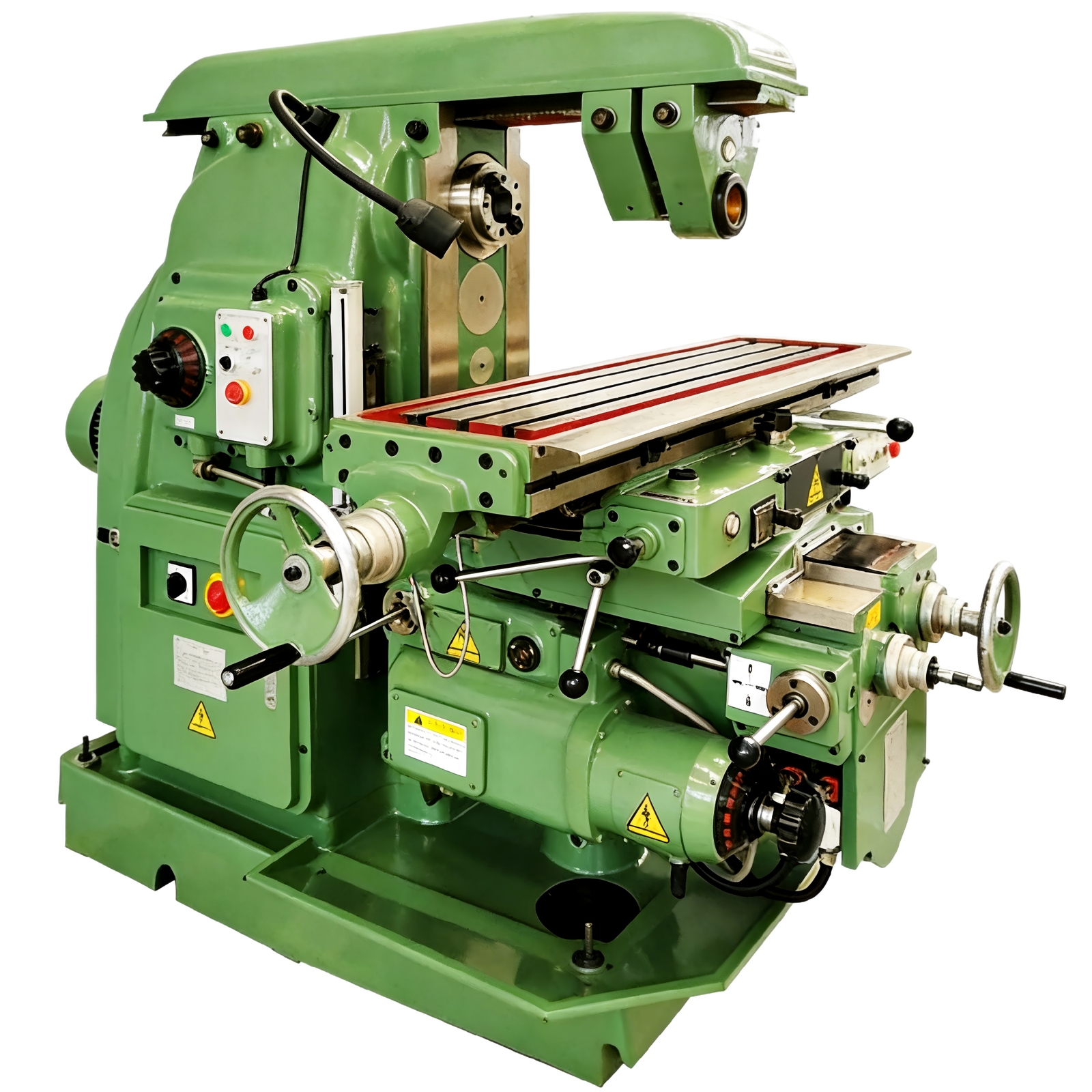

Milling Machine（Manual horizontal milling machine）
FEATURES:
This series of universal lifting table milling machine is easy to operate and reliable。It is widely used in various mechanical processing departments tprocessvarious
planes, grooves and gears.The milling machine accessories such as universal milling heead, round table and indexing head can be equipped to further expand the scope of useof the machine.
Description
Milling Machine（Manual horizontal milling machine）
| PARAMETER ITEM | UNIT | XA6132 | XA6140 |
| Working desk size | mm | 1320×320(1600x320) | 1700×400(2000x400) |
| Work table T-slot number/width /spacing | mm | 3-18-70 | 3-18-90 |
| Workbench maximum overload | kg | 500 | 800 |
| X direction (table longitudinal)manual /maneuver | mm | 700/680(900 optional) | 900/880(1100 optional) |
| Y direction(slide lateral)manual/maneuver | mm | 255/240 | 315/300 |
| Z direction (lifting table vertical)manual /maneuver | mm | 380/360 | 380/360 |
| Cutting feed rate | mm/min | X.Y:23.5-1180 Z:8-394 | X.Y:23.5-1180 Z:8-394 |
| Fast moving speed | mm/min | X:2300 Y:2300 Z:770 | X:2300 Y:2300 Z:770 |
| Spindle speed range | rpm | 30-1500 | 30-1500 |
| Spindle speed serie | steps | 18 | 18 |
| Worktable maximum turning angle | ° | ±45° | ±45° |
| Spindle center to table distanc | mm | 30-350 | 30-410 |
| Spindle motor power | kw | 7.5 | 11 |
| Dimensions | mm | 2294×1770×1665 | 2560×2130×1800 |
| Machine weight(about) | kg | 2650 | 3850 |
