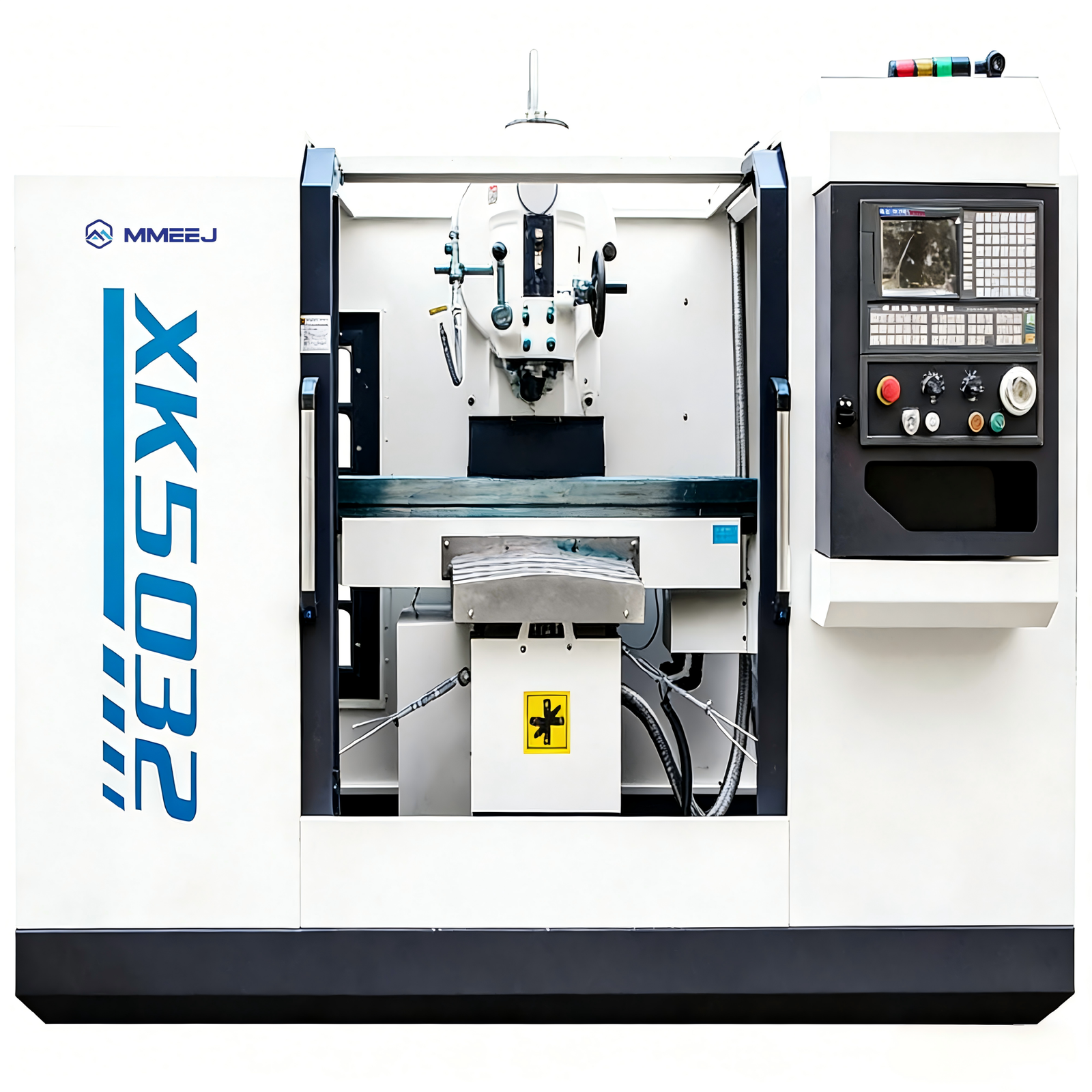

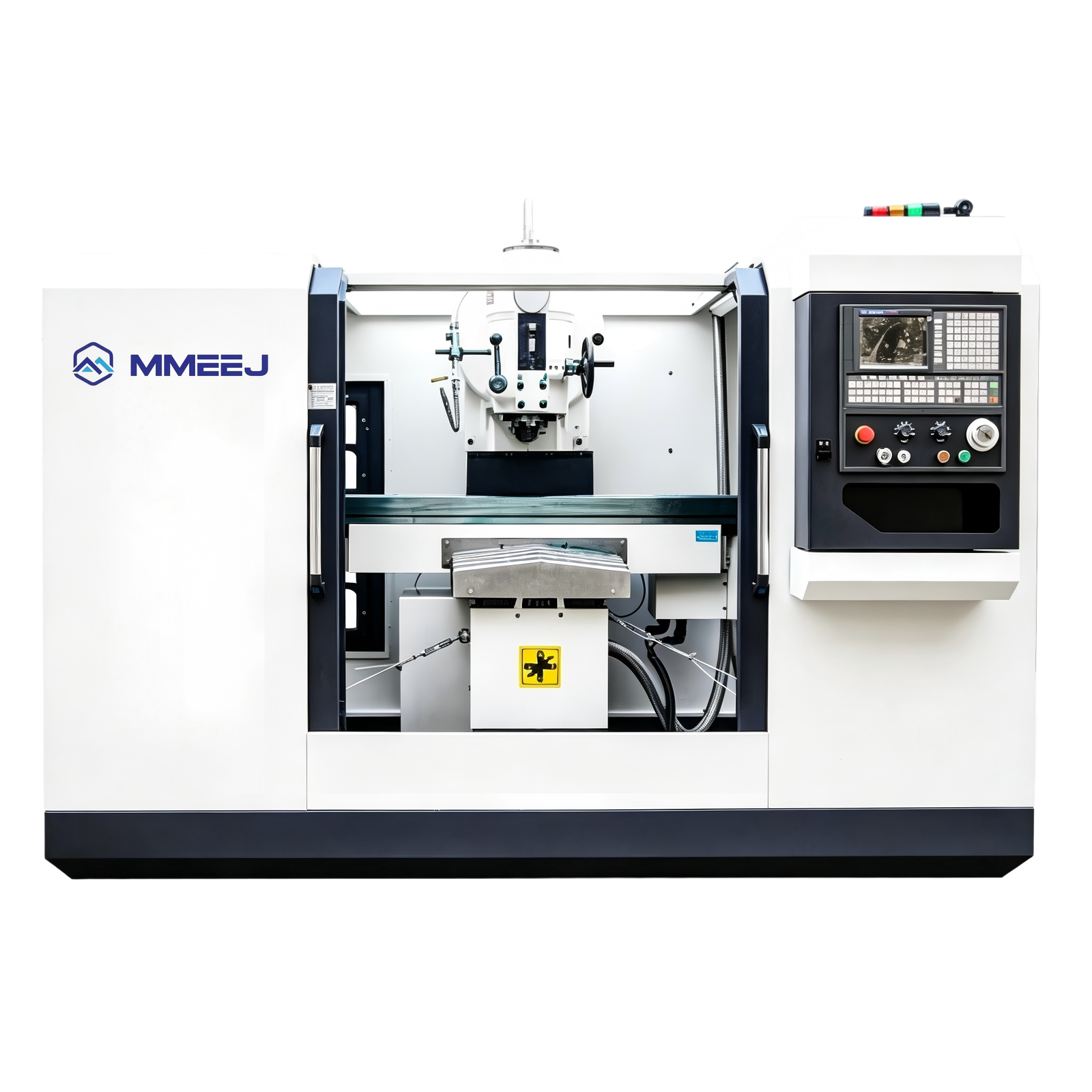

Milling Machine（CNC vertical milling machine）
Standard configuration:
Guangtai 130system/Three axis CNC/Manual transmission of spindle/Electronicoil pump/Three-axishard rail
Optionalconfiguration:
System:GSK、KND/CNCdividinghead/TopTailstock/Pneumaticbroach/Fully protectedsheet metal
Description

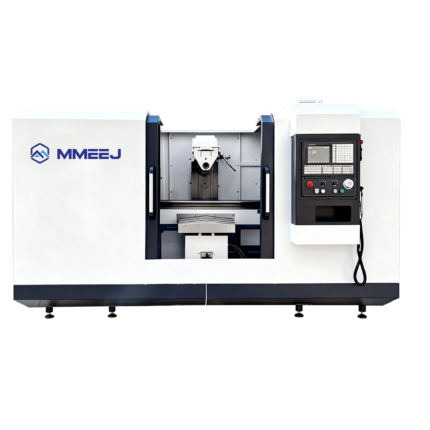

Milling Machine（CNC horizontal milling machine）
| PARAMETER ITEM | UNIT | XK5032 | XK5040 |
| Size of worktable | mm | 1500x320 | 1700x400 |
| Table travel | mm | 900x310x350 | 880x300x365 |
| T-groove | mm | 3-14-70 | 3-18-90 |
| Spindle Taper | / | ISO:50/7:24 | ISO:50/7:24 |
| Table rotation angle (optional) | degree | ±45° | ±45° |
| Distance between spindle end face and table top | mm | 30-380 | 45-410 |
| Bed Vertical Guidetothe spindle center line distance | mm | 350 | 450 |
| Spindle speed range(series) | rpm | 30-1500/18 | 30-1500/18 |
| Fast moving speed(x/y/z) | mm/min | 6000/6000/3000 | 3000/3000/1500 |
| Positioning accuracy | mm | 0.025/300 | 0.05/300 |
| Repeat positioning accuracy | mm | 0.015/300 | 0.025/300 |
| Main Drive motor power | kw | 7.5 | 11 |
| Cooling pump motor power | kw | 0.125 | 0.125 |
| Extemal dimensions | mm | 2272x1825x2094 | 2556x2160x2400 |
| Weight of machine | kg | 3250 | 4320 |
