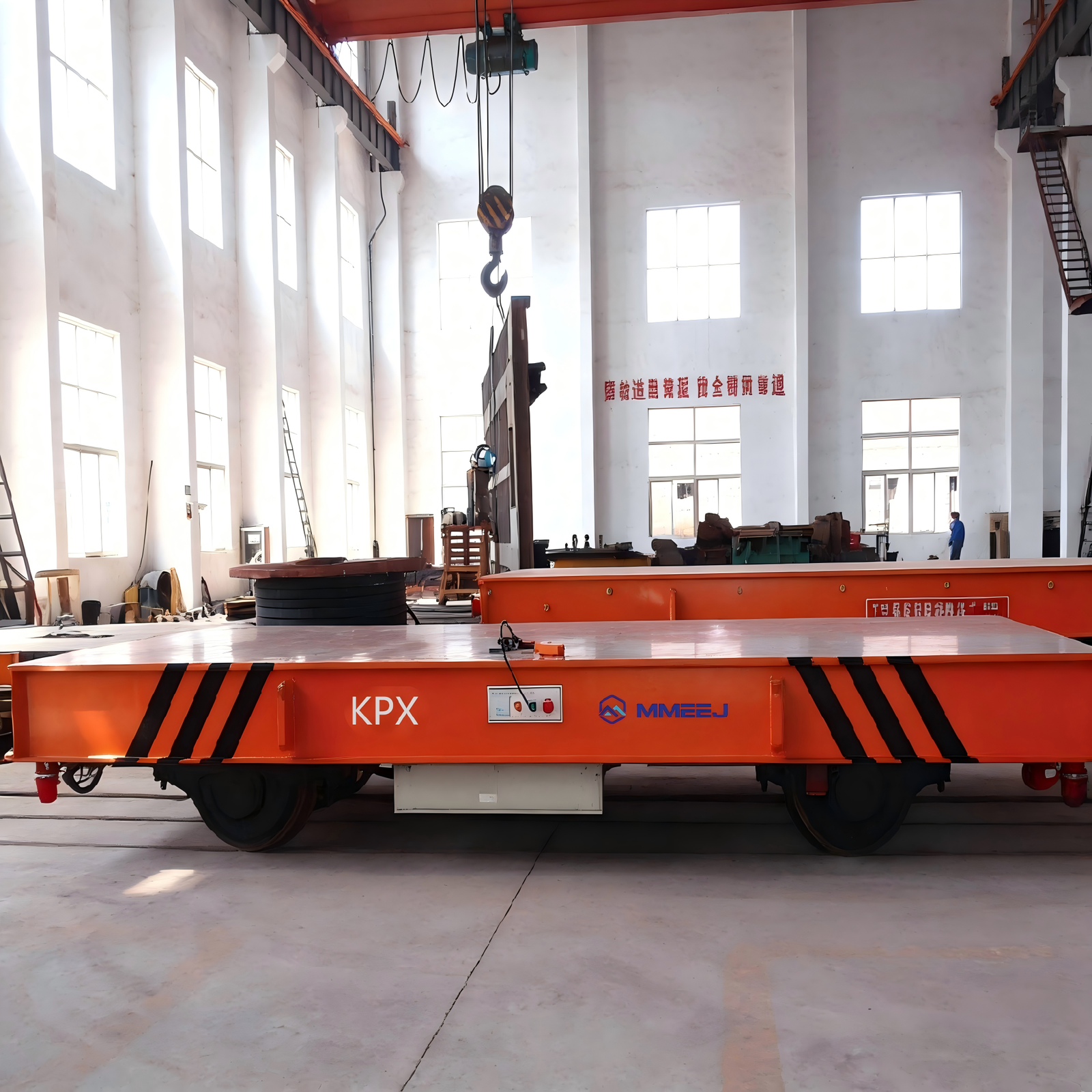

Industrial Transfer Carts(KPX series)
The KPX series electric flat car uses batteries as its power supply and is suitable for long-distance and cross-transportation.
It is easy to achieve remote control and speed regulation control. Moreover, it has low requirements for the laying of steel rails. Conventional laying methods can ensure the operation of the vehicle.
It is particularly suitable for running on old tracks and can be used without modification. It avoids the increase in track cost caused by the requirement for track inssulation due to track power supply for low-voltage power supply
flatcars. Because it is driven by a DC motor, it starts and stops very smoothly and reliably.
Description
Indrial Transfer Carts(KPX series)
| KPX series electric flat car parametertable | ||||||||
| Model | Single-phase pover supply | KPX-5-1 | KPX-10-1 | KPX-20-1 | KPX-30-1 | KPX-50-1 | KPX-75-1 | KPX-100-1 |
| Loadcapacity(t) | 5 | 10 | 20 | 30 | 50 | 75 | 100 | |
| Countertop size | Length(mm) | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6000 |
| Width(mm) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | |
| Height(mm) | 550 | 550 | 650 | 650 | 700 | 850 | 900 | |
| Speed(m/min) | 0~25 | 0~25 | 0~25 | 0~25 | 0~25 | 0~25 | 0~20 | |
| Motor power | 1.5KW | 3KW | 5KW | 6.3KW | 6.3KW | |||
| Battery | Model | 6D120 | D250 | D440 | D440 | |||
| Voltage | 3×12V | 20×2V | 24×2V | 24×2V | ||||
| Working voltage | 36V | 40V | 48V | 48V | ||||
| Self-weight (t) | 3.9 | 4.3 | 5.2 | 6.5 | 8.3 | 11.4 | 14.5 | |
| Gauge(mm) | 1435 | |||||||
| Minimum curve radius | 30m | 35m | 55m | 70m | ||||
