Horizontal Lathe （Flat Bed CNC Type）
Product Presentation:

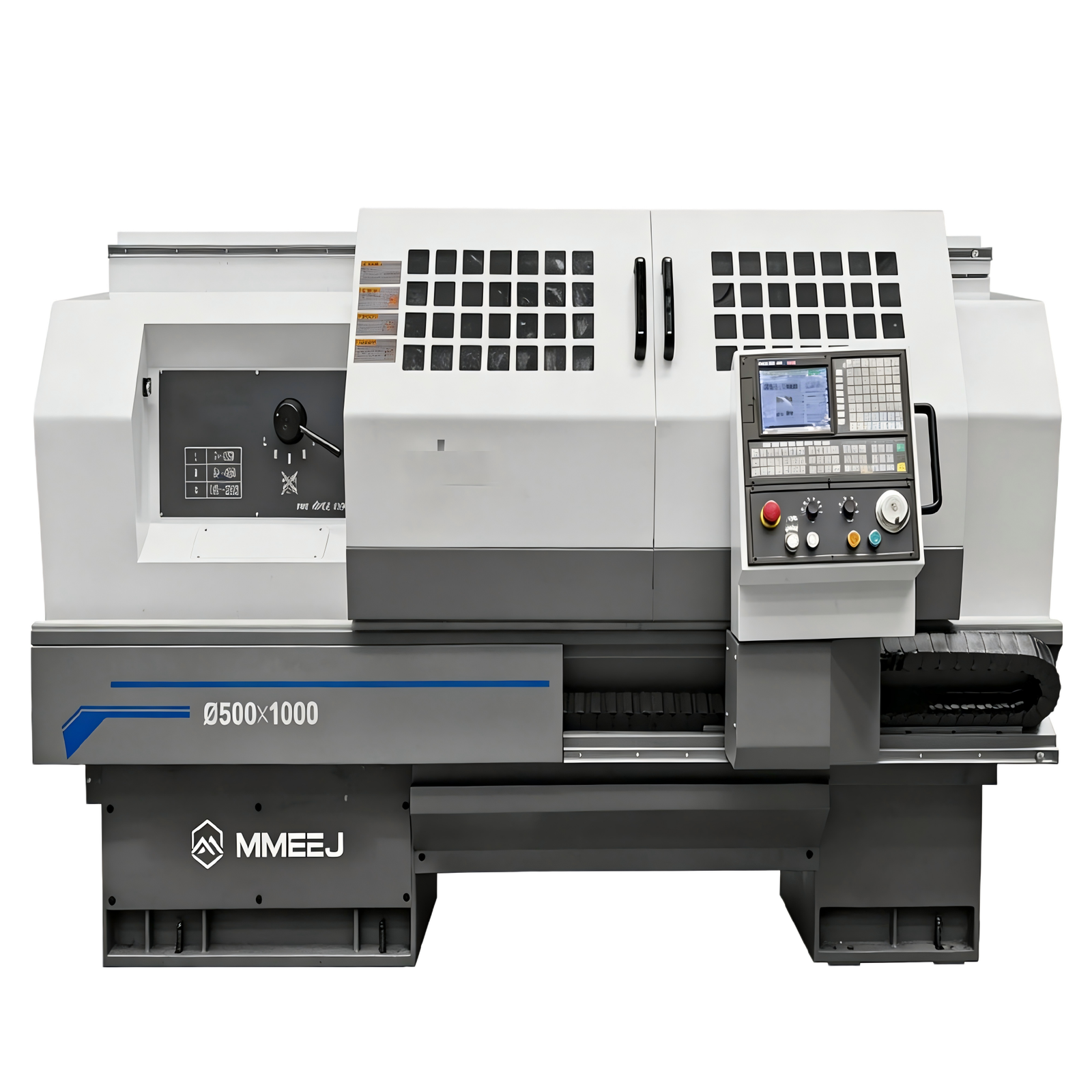

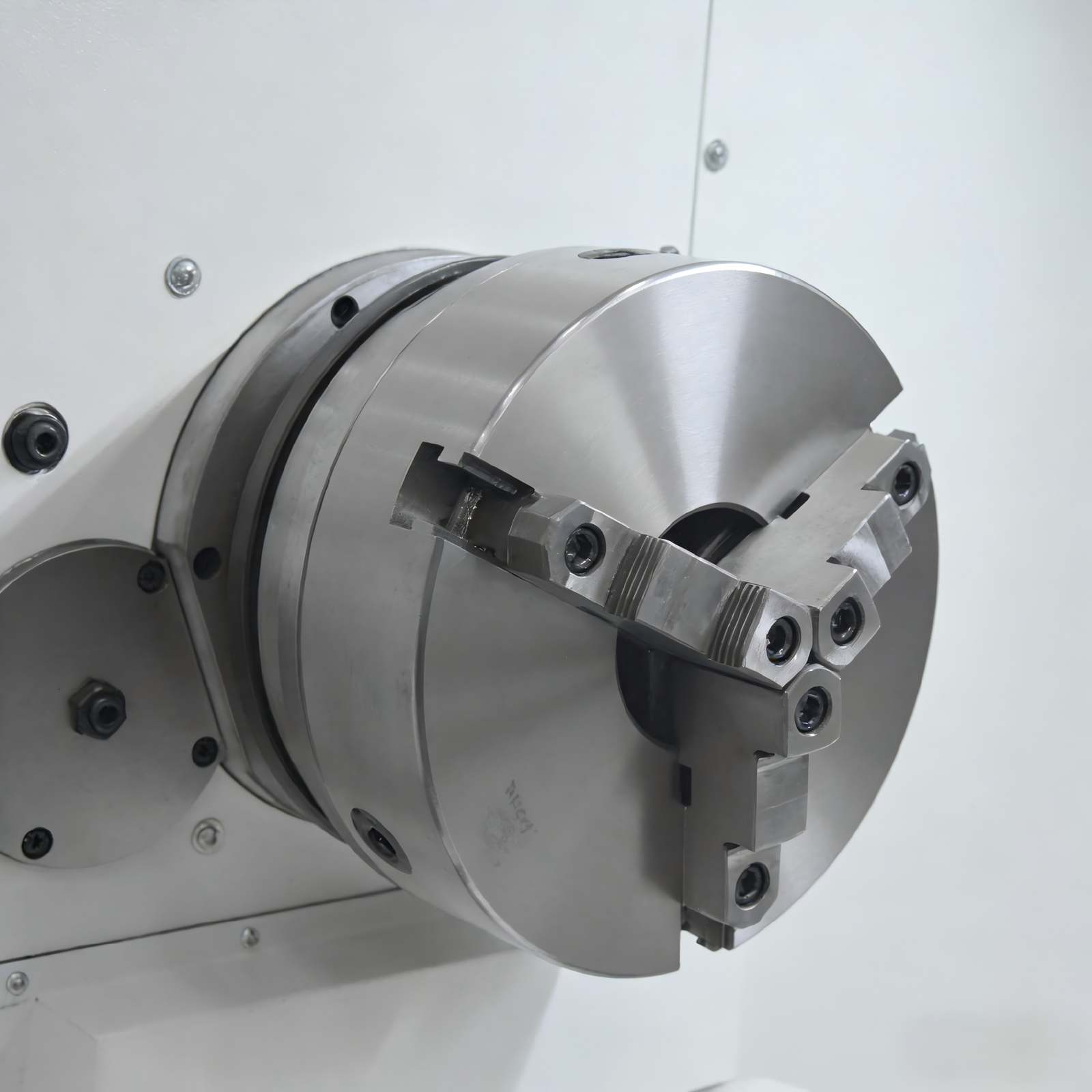

The CKA series CNC lathes are horizontal CNC lathes with a flat bed controlled by both longitudinal (Z) and transverse (X) axes.

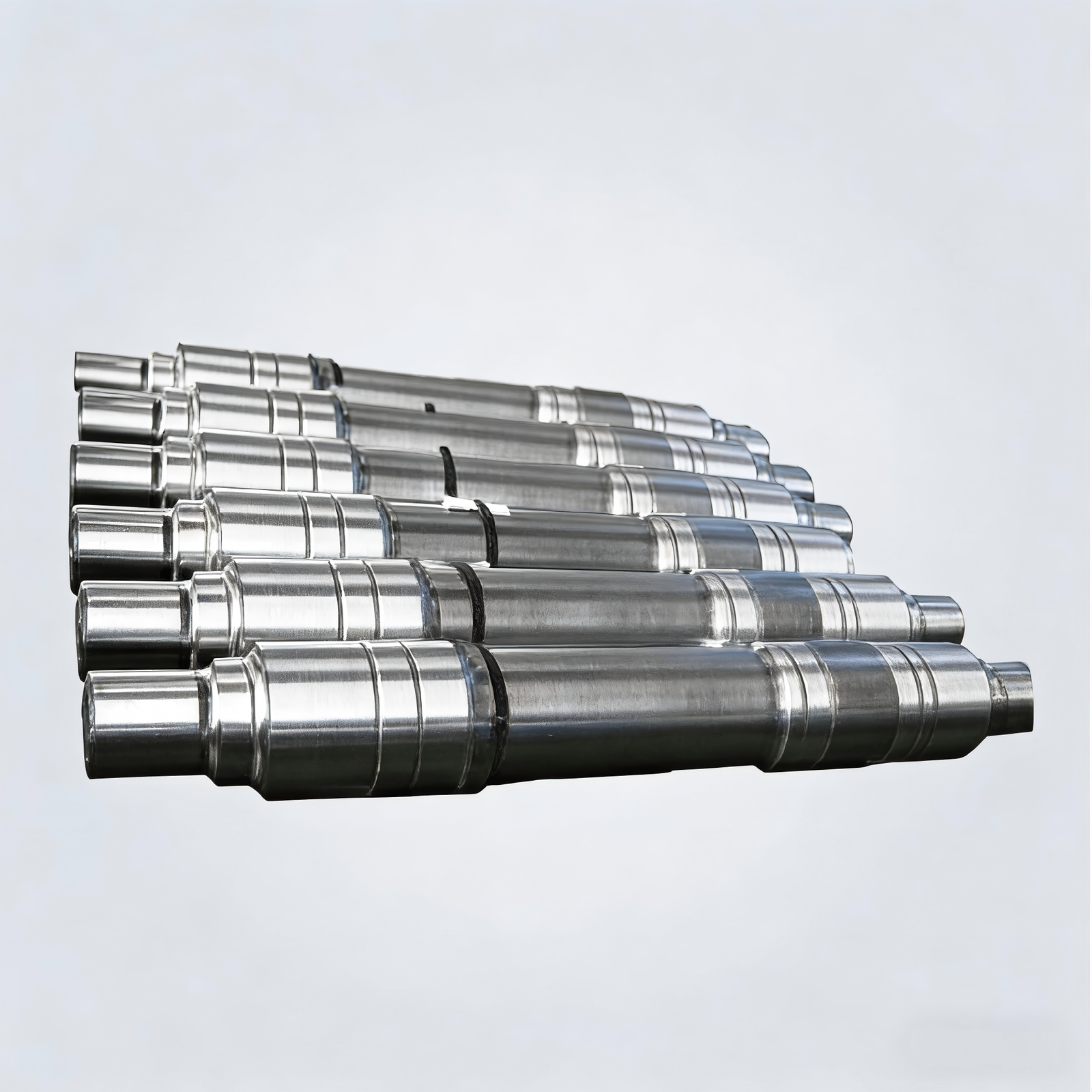

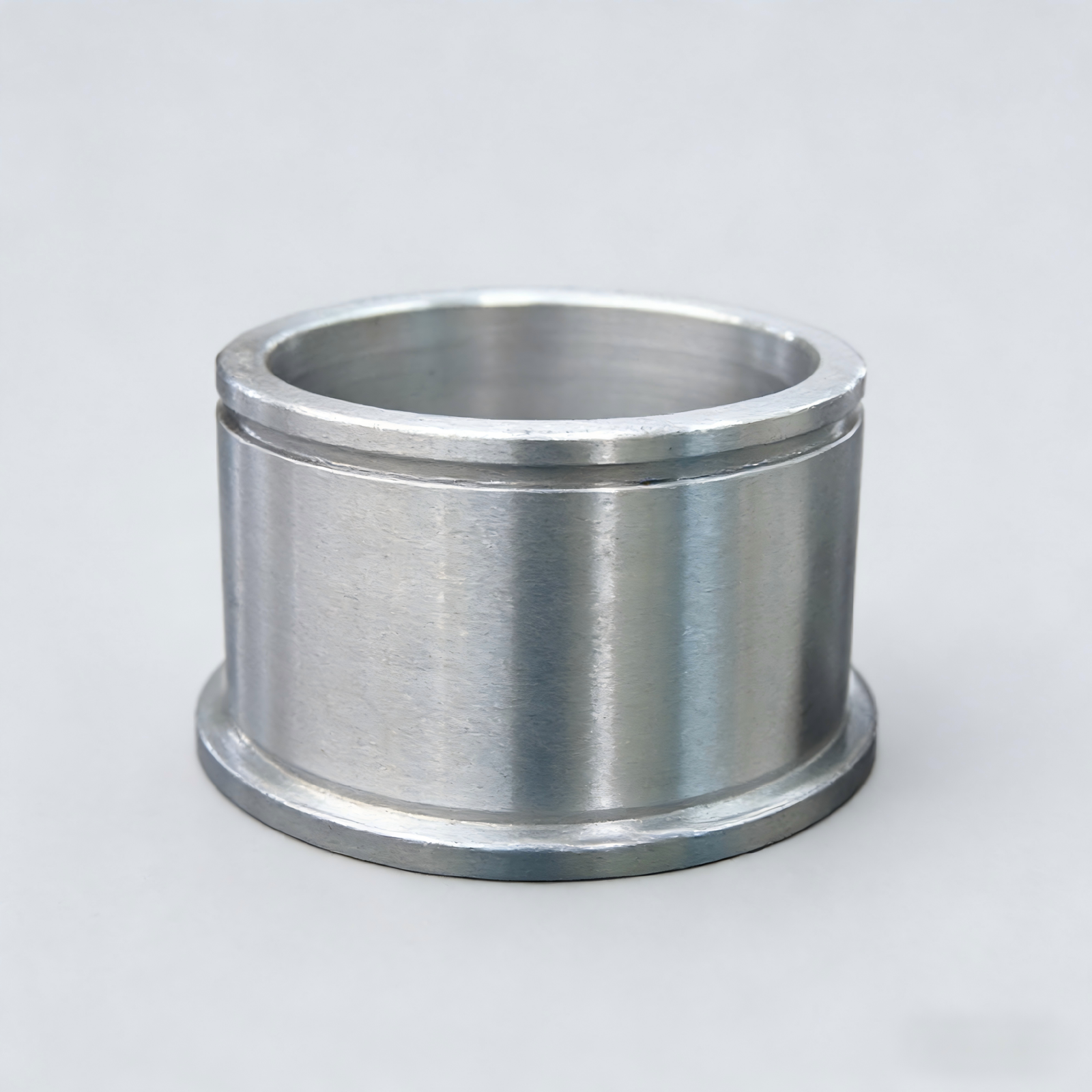

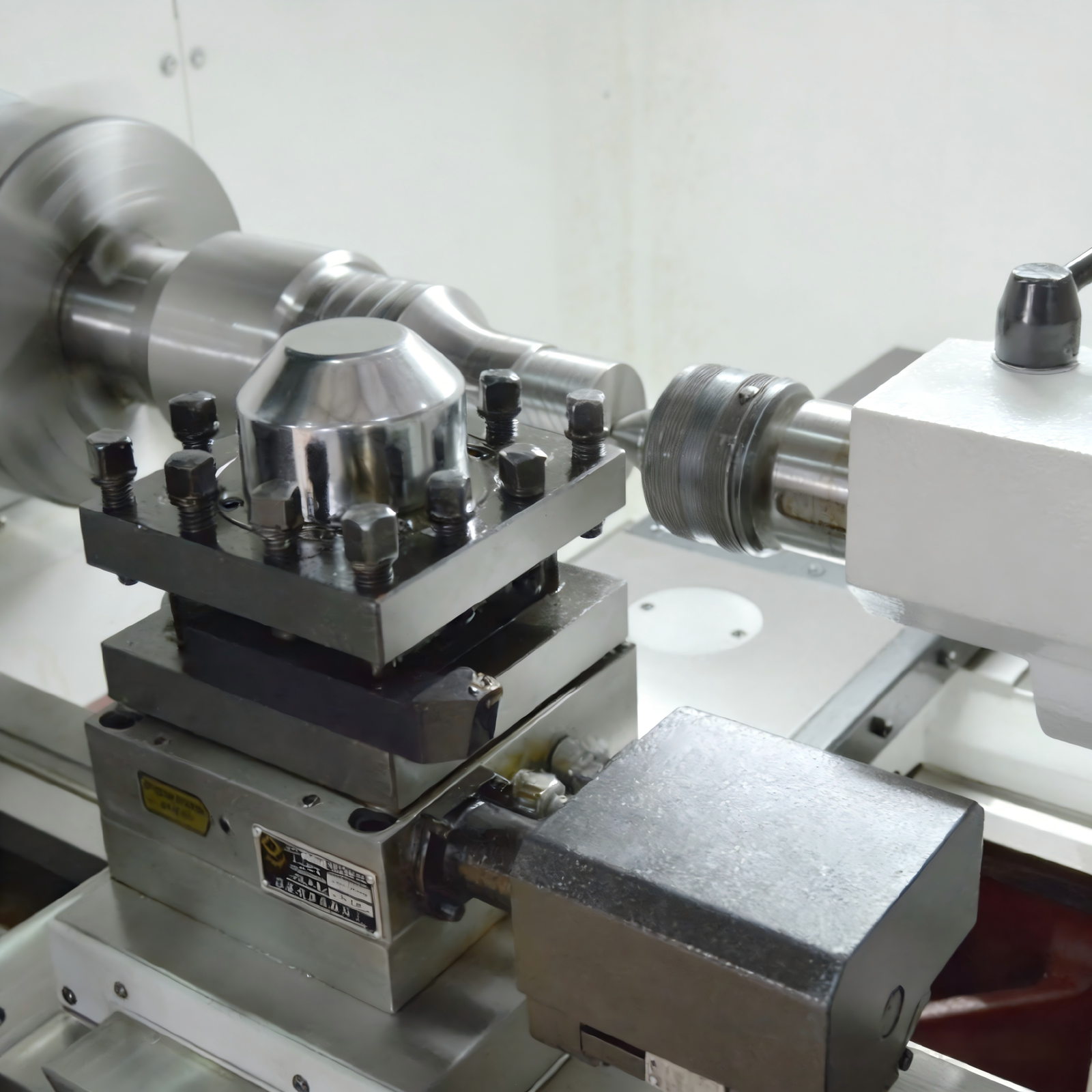

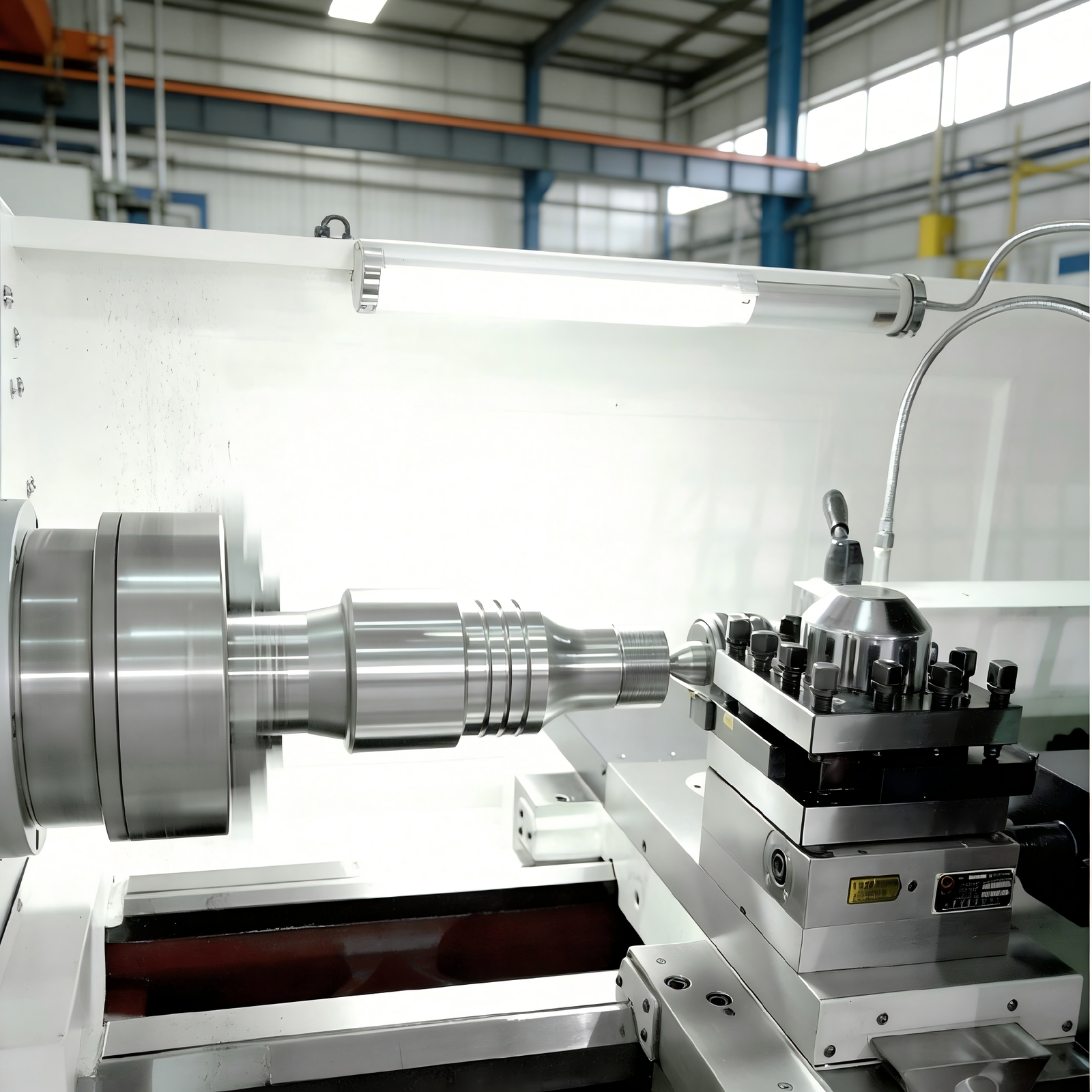

They can automatically complete cutting operations on various shaft and disc parts, including internal and external cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, and chamfering.
They can also perform turning operations on metric straight threads, end face threads, and imperial straight and tapered threads. Suitable for the production of diverse, small-batch products, they demonstrate superior performance on complex, high-precision parts.
Machining Range:
Bed rotation diameter from 400mm to 800mm, workpiece length from 750mm to 5000mm, with custom length options available.
CKA Series

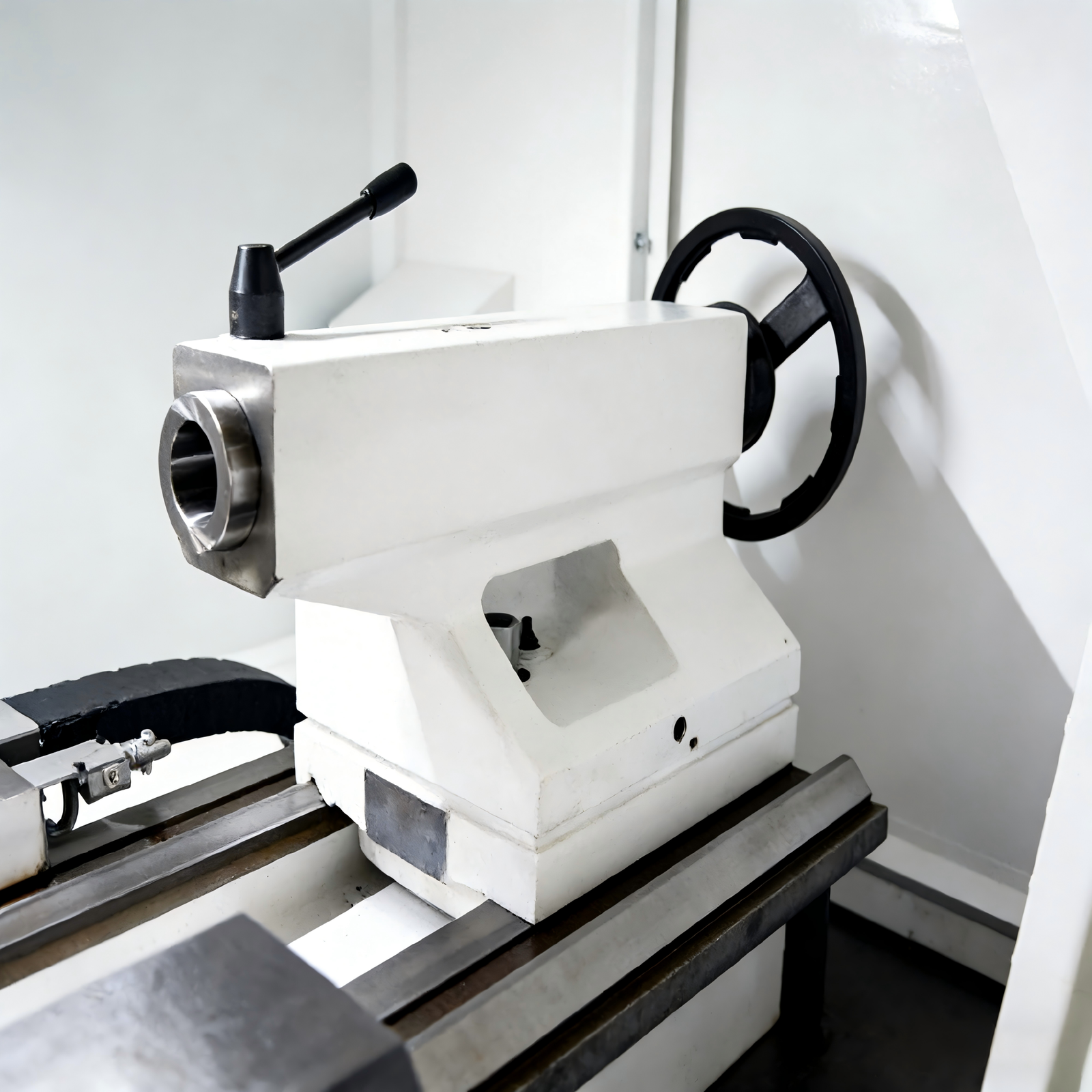

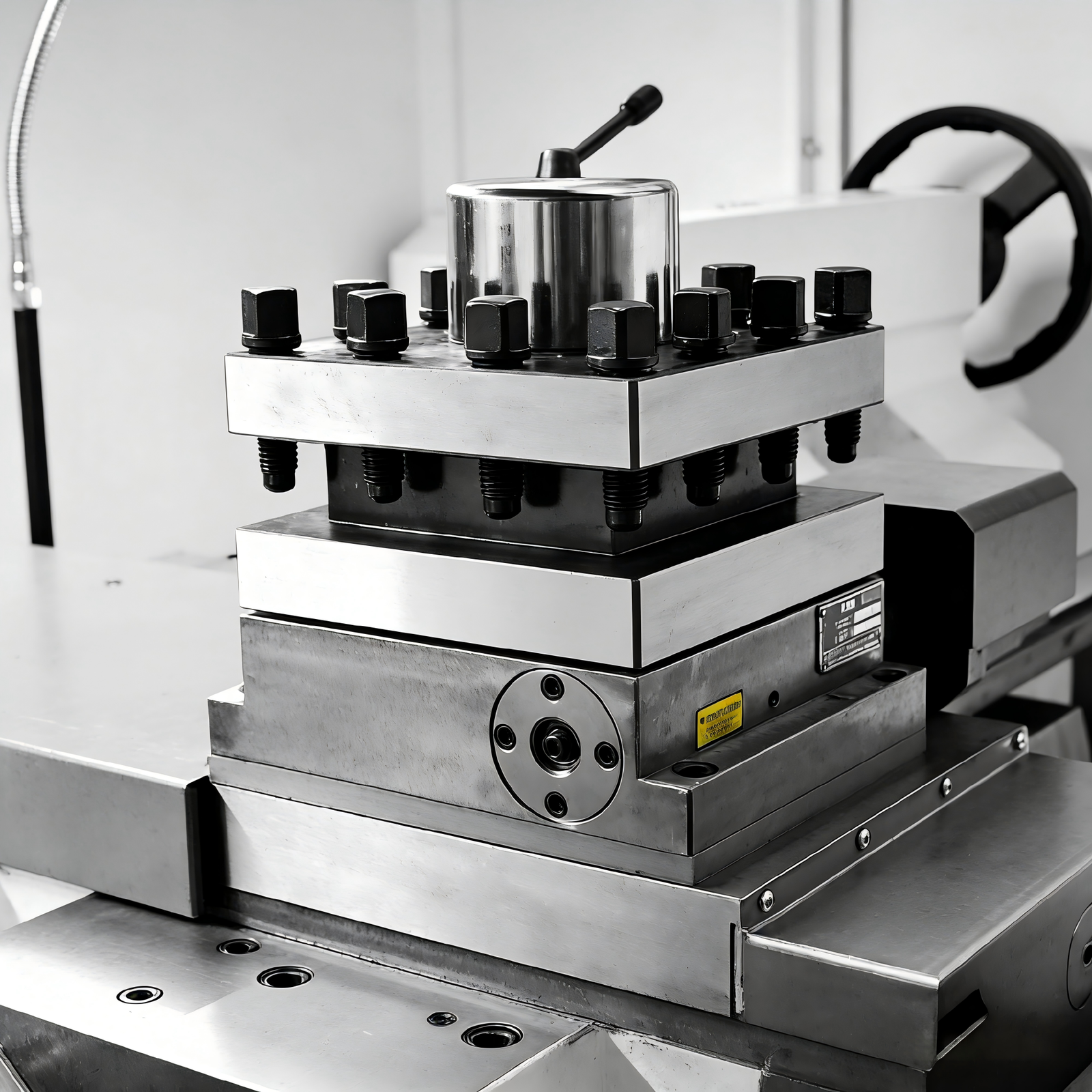

| Product model | Unit | CKA6140 | CKA6140i | CKA6150 | CKA6150i | CKA6163A | CKA6180A | |
| Max.swing diameter over bed | mm | φ400 | φ400 | φ500 | φ500 | φ630 | φ800 | |
| Max.swing diameter over cross slide | mm | φ200 | φ200 | φ280 | φ280 | φ320 | φ490 | |
| Max.workpiece length | mm | 750/1000 | 750/1000 | 750/1000/1500/2000 | 750/1000 | 1000/1500/2000/3000/4000/5000 | ||
| Max.cutting length | mm | 580/830 | 580/830 | 680/930/1430/1930 | 680/930 | 795/1245/1845/2745/3665/4745(High-position four-station tool holder) 690/1140/1740/2640/3560/4640(Horizontal six-position tool post)700/1150/1750/2650/3570/4650(Horizontal eight-position tool post) | ||
| Max,turning diameter | Vertical 4-position | mm | φ400 | φ400 | φ500 | φ500 | φ630 | φ800 |
| Horizontal 6-position | mm | φ300 | φ300 | φ400 | φ400 | φ620 | φ620 | |
| Opt: Horizontal 6-position | mm | 一 | 一 | φ370 | φ370 | φ620 | φ620 | |
| Spindle center height | mm | 200 | 200 | 250 | 250 | 315 | 400 | |
| Spindle motor power | kW | 5.5(Servo motor) | 5.5(Servo motor) | 7.5/11(Servo motor) | 11/15(Servo motor) | 11(Variable frequency motor、Opt:Servo motor) | ||
| Spindle bore | mm | φ52 | φ40 | φ82 | φ100 | |||
| Taper of spindle bore | MT. NO.6 | MT. NO.6 | Frontφ901:20 | Frontφ1001:20 | Frontφ1201:20 | |||
| Type of spindle nose | r/min | A2-6 | A2-5 | D8 | A2-8 | C11 | ||
| Spindle speed ranges | mm | 20~2500 2 range manual | 20~3500 Single spindle | 7~2200 3 range manual | 30~3000 Single spindle | 10~1000(inverter-driven motor/Op:servor motor) 4 range manual | ||
| Tailstock quil diameter | mm | φ63 | φ63 | φ75 | φ100 | |||
| Tailstock quill travel | 140 | 140 | 150 | 240 | ||||
| Tailstock quill taper | mm | MT.NO.4 | MT.NO.4 | MT.NO.5 | MT.NO.6 | |||
| Max.travel of X-axis | mm | 240 | 240 | 280 | 280 | 320 | 320 | |
| Max.travel of Z-axis | m/min | 580/830 | 580/830 | 685/935/1435/1935 | 685/935 | 800/1250/1850/2750/3670/4750 | ||
| Rapid traverse of x/Z axis | mm | 4/6 | 4/6 | 4/8(750、1000、1500 Specification) 4/6(2000 Specification) | 4/8 | 4/7.5(1000、1500、2000 Specification) 4/4(3000 Specification)、4/3.5(4000、5000 Specification) | ||
| Toolshank size (Vertical4-positon) | mm | 20×20 | 20×20 | 25×25(20×20 Horizontal eight-position tool post) | 32×32(32×25 Horizontal 8-station) | |||
| X/Zaxis positioning accuracy | mm | 0.018/0.021(750 Specification) 0.024(1000 Specification) | 0.018/0.021(750 Specification) 0.024(1000 Specification) | 0.018/0.021(750 Specification) 0.024(1000 Specification)0.026(1500、2000 Specification) | 0.018/0.021(750 Specification) 0.024(1000 Specification) | 0.018/0.024(1000 Specification) 0.026(1500、2000 Specification) 0.030(3000、4000、5000 Specification) | ||
| X/Z axis repeatability accuracy | mm | 0.006/0.008(750 Specification) 0.011(1000 Specification) | 0.006/0.008(750 Specification) 0.011(1000 Specification) | 0.006/0.008(750 Specification) 0.011(1000 Specification)0.014(1500、2000 Specification) | 0.006/0.008(750 Specification) 0.011(1000 Specification) | 0.006/0.011(1000 Specification) 0.014(1500、2000 Specification)0.014(For specifications of 2000mm and above, inspection should be carried out over a normal working measurement length of 2000mm.) | ||
