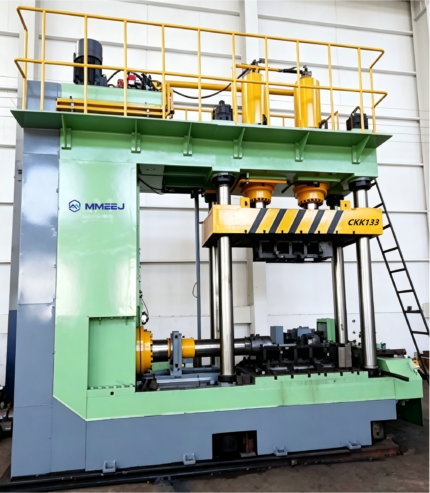

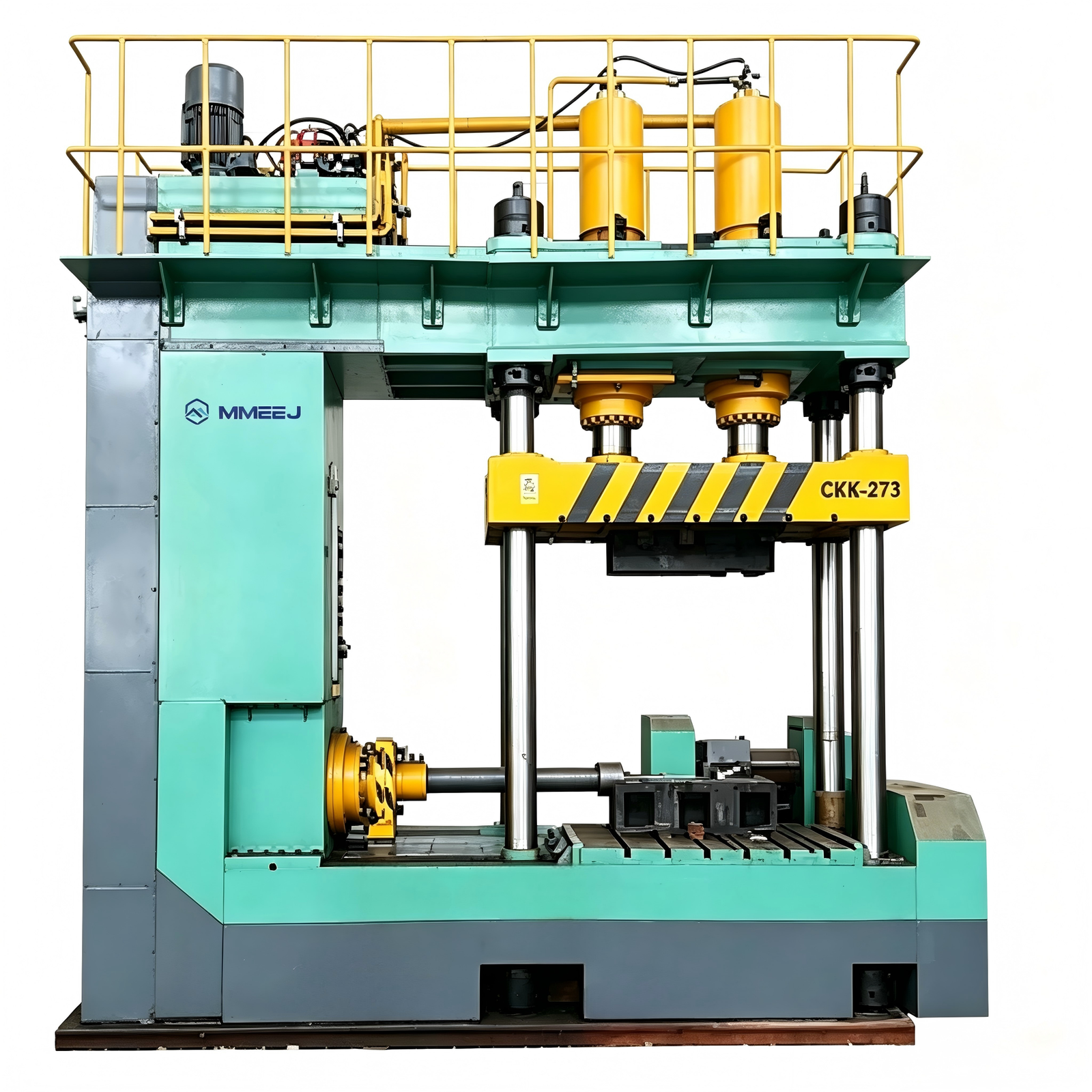

Cold Push Elbow Machine
The cold push elbow machine is one of the pipe fitting equipment, mainly used for the forming of cold push elbows. The cold push elbow machine generally consists of four parts:
mechanical part, hydraulic part, electrical part, and control system. The entire equipment is independently designed and manufactured by our factory.
The top oil cylinder clamps the mold, the side oil cylinder applies pressure, and the demolding oil cylinder separates the elbow from the mandrel.
The PLC control system is more accurate, and the touch screen operation is more convenient.
Description
Cold Push Elbow Machine
| Model | Size Range (mm) | ClampingForce(KN) | Pushing Force(KN)) | Rated workingpressure(Mpa) | Total powerof motor(KW) | Total Weight(kg) |
| EDY-100 | φ25-φ76 | 1000 | 630 | 25 | 11 | 6300 |
| EDY-200 | φ34-φ114 | 2000 | 1250 | 25 | 18.5 | 9000 |
| EDY-40DA | φ133-φ273 | 4000 | 2500 | 25 | 29.5 | 38000 |
| EDY-400B | φ10B-φ219 | 4000 | 2500 | 25 | 29.5 | 35000 |

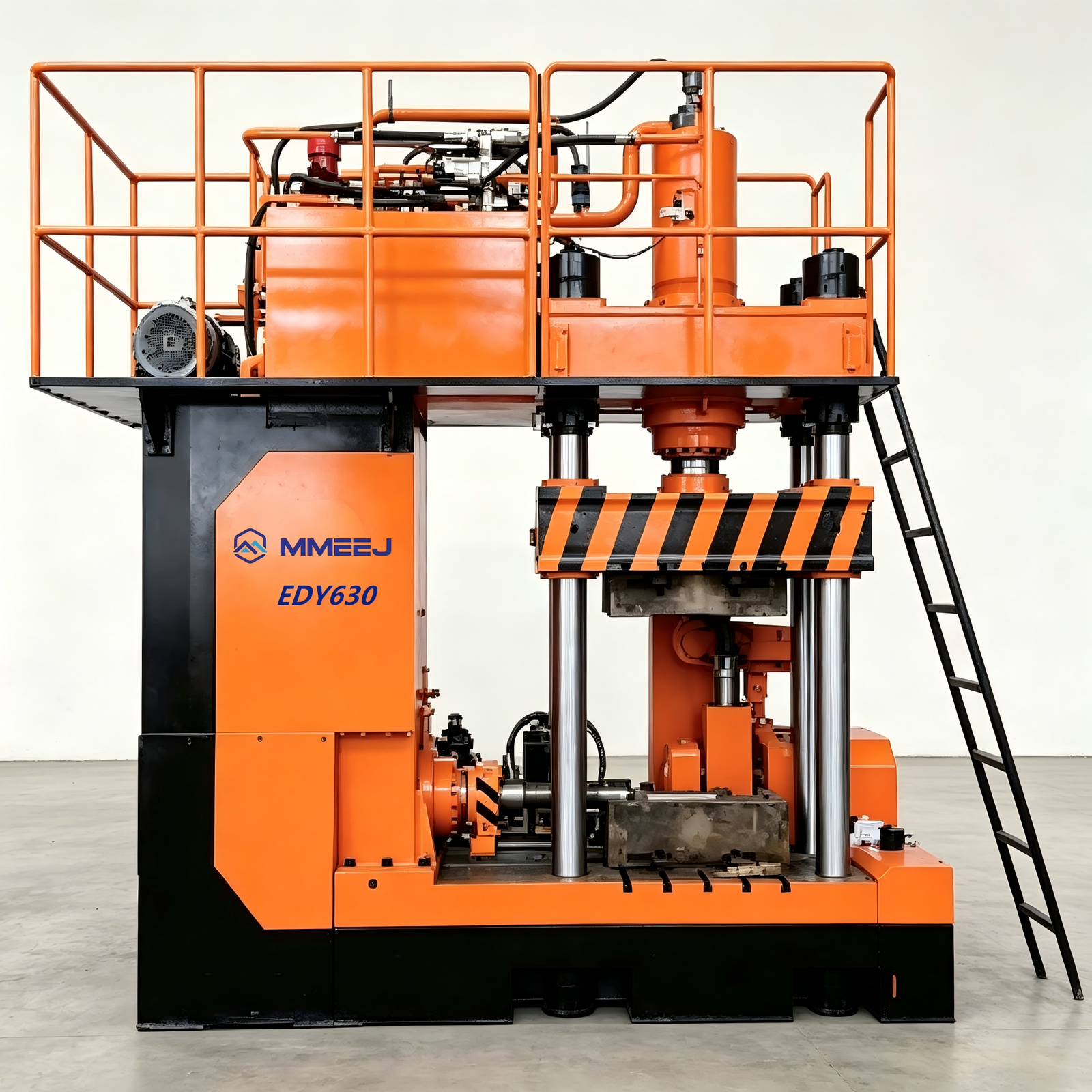

| EDY-630 | φ133-φ325 | 6300 | 3150 | 25 | 36 | 48000 |
| EDY-800 | φ219-φ377 | 8000 | 4500 | 25 | 42 | 76000 |
| EDY-1000 | φ273-φ426 | 10000 | 5000 | 25 | 65 | 98000 |
| EDY-1600 | φ325-φ530 | 16000 | 8000 | 25 | 88.5 | 130000 |
| EDY-2000 | φ406-φ630 | 20000 | 1000D | 25 | 110 | 200000 |
