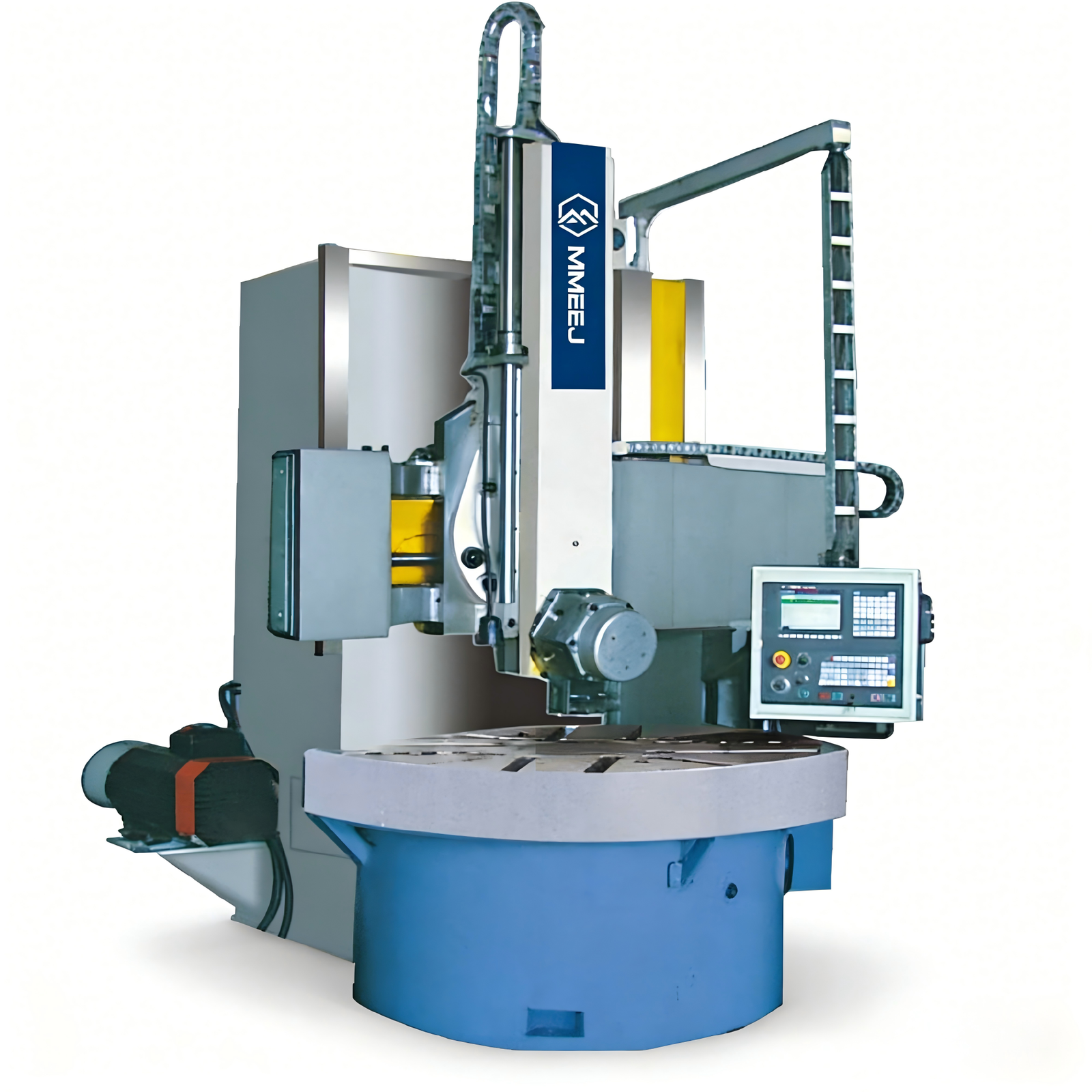

Single-column Programmable Vertical Lathes
The c51 series of machine is single column structure,has one vertical tool posservo motor post, suitable for highspeed steel and hard alloy tools tools
variable of ferrous metals, non-ferrous metaland some non-metal Itcanturning innercylindrical face, outer cylindrical face, end face, inner conI face, outer
conical face, grooving, tapping and so on.
Description
C51 series
| Product model | Unit | C5110-HD | C5112-HD | C5116-HD | C5120-HD | C5123-HD | C5126-HD |
| Maximum processing diameter | mm | 1000 | 1250 | 1600 | 2000 | 2300 | 2600 |
| Maximum processing height | mm | 800 | 1000 | 1200/1400 | 1250/1400 | 1350/1600 | 1500/1800 |
| Maxmum load-bearing | T | 2 | 3.5 | 5 | 8 | 10 | |
| Work bench size | mm | 900 | 1000 | 1400 | 1800 | 2000 | 2300 |
| Main motor power | KW | 18.5 | 22 | 30 | 37 | ||
| Working table rotation range | r/min | 8-250 | 6-200 | 5-160 | 3-100 | 3-80 | 2-63 |
| Horizontal stroke of vertical tool holder X | mm | 670 | 700 | 915 | 1050 | 1180 | 1600 |
| Vertical tool post ram stroke Z | mm | 650 | 800 | 800/1000 | |||
