Horizontal Lathe(Slant Bed DL-M series ）

Product Presentation:

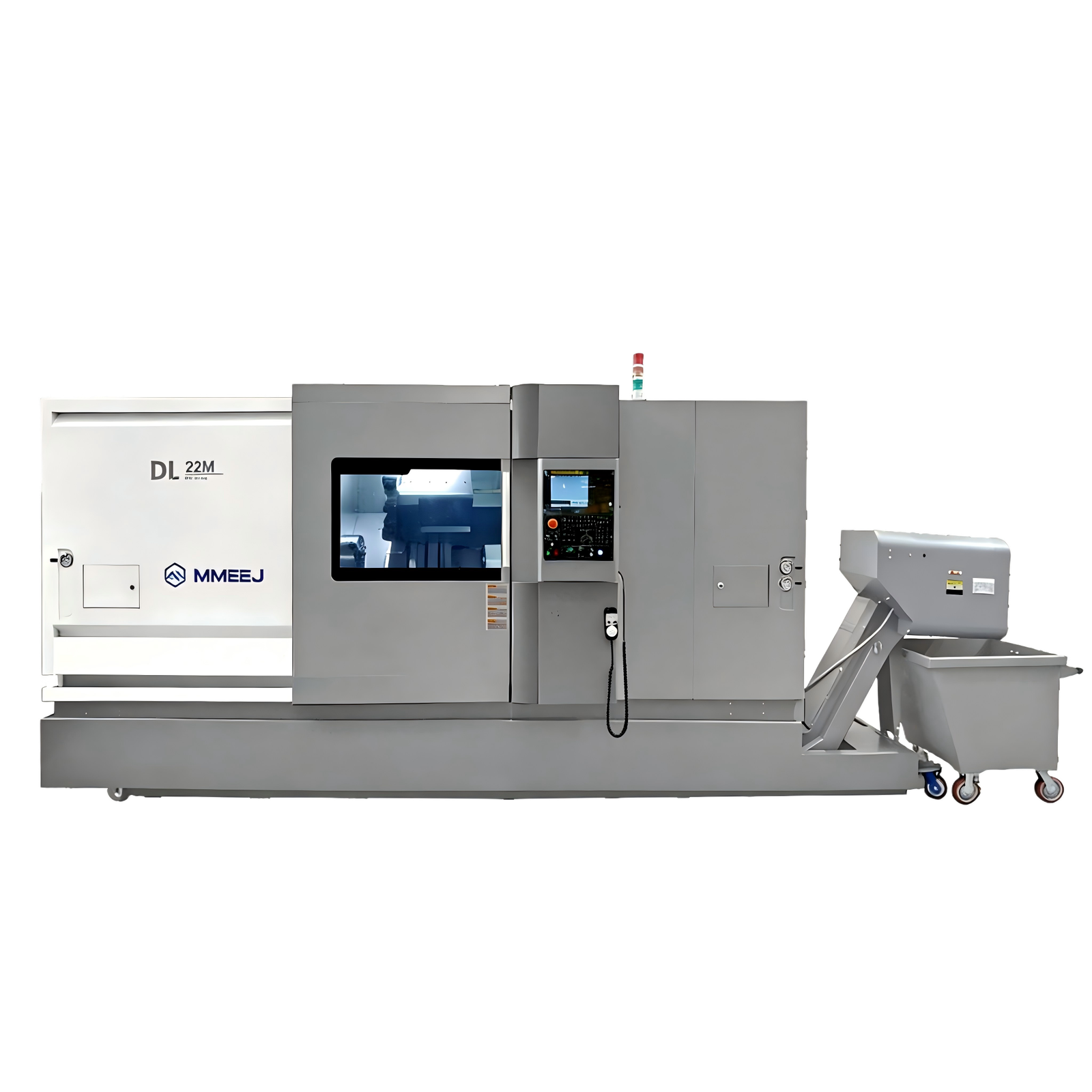

The DL-M series slant bed CNC lathe is a CNC lathe developed and manufactured by our company, possessing internationally advanced technology.

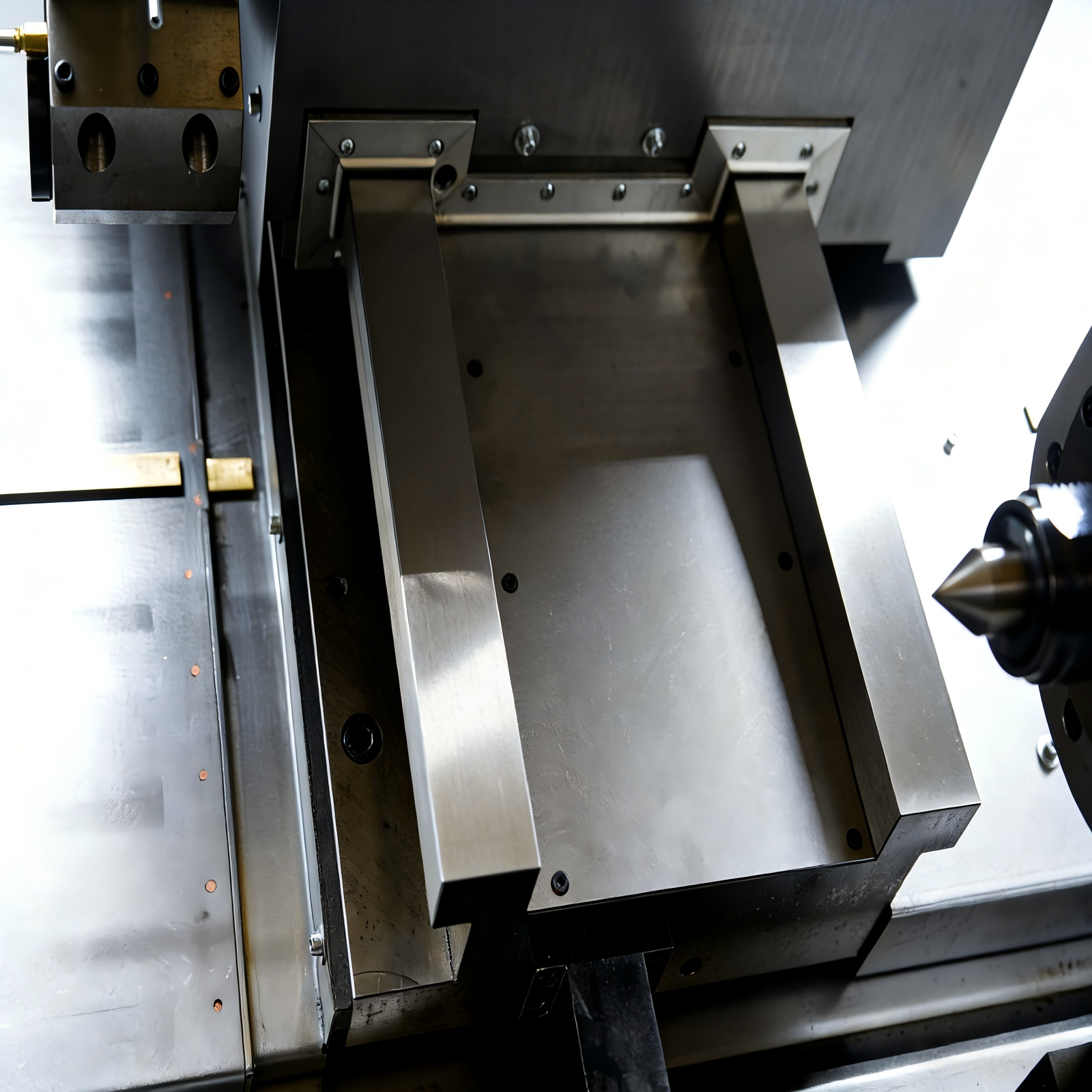

The main machine bed is integrally cast, with a 45° inclined layout of the bed guideways, providing high rigidity.

The control system adopts the Japanese FANUC 0i-TFPLUS system (or other high-quality domestic and international systems) and AC servo drive, ensuring convenient operation and reliable performance.

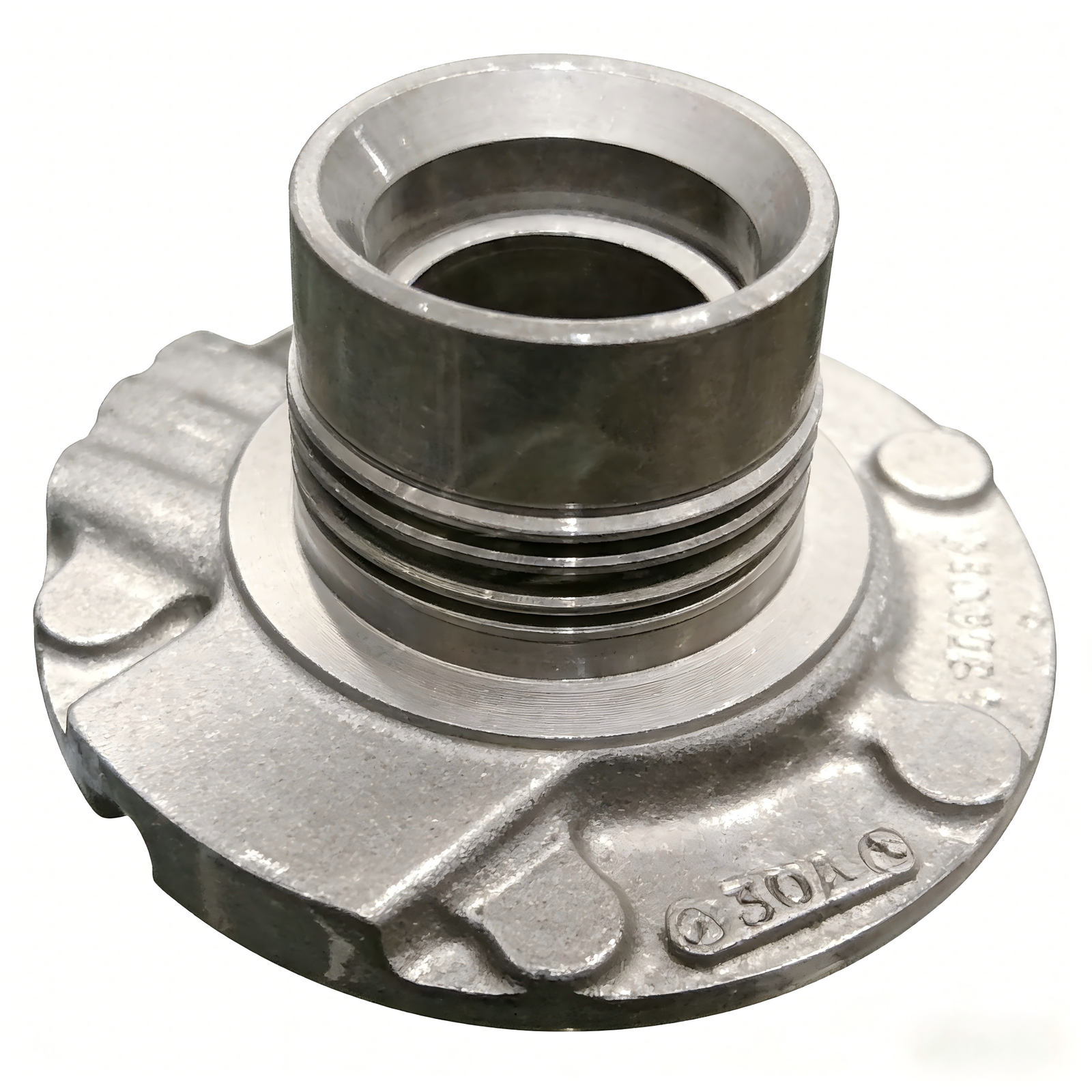

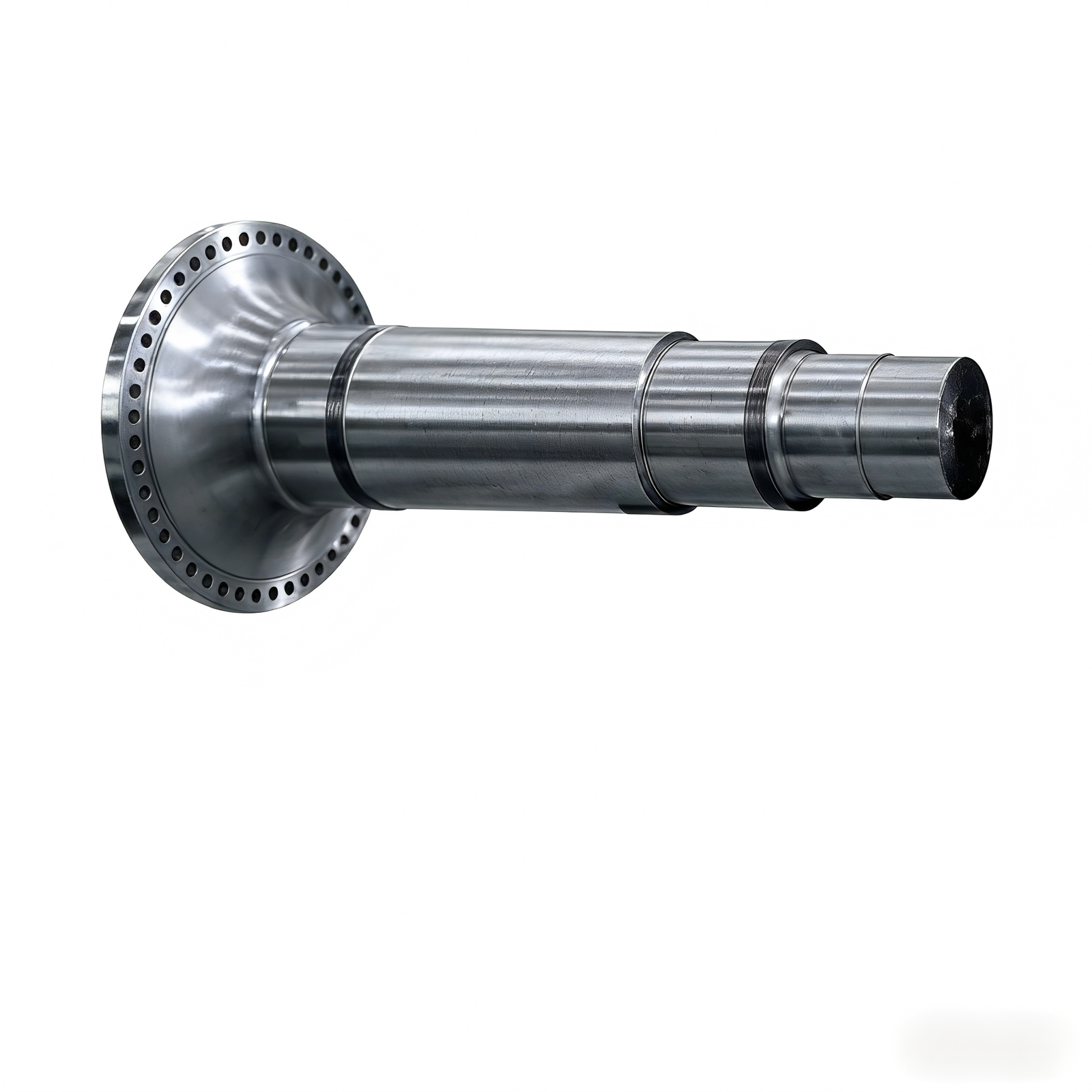

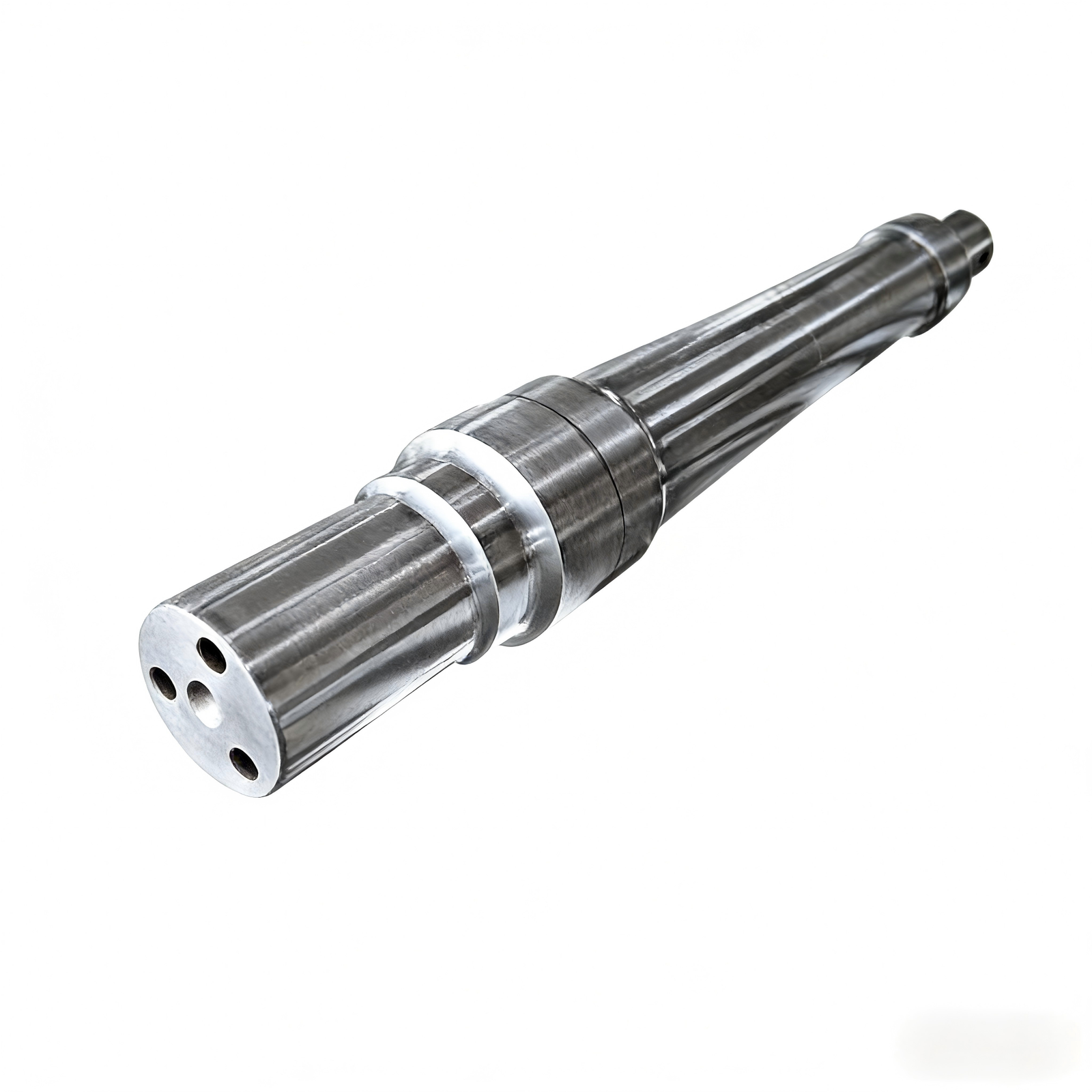

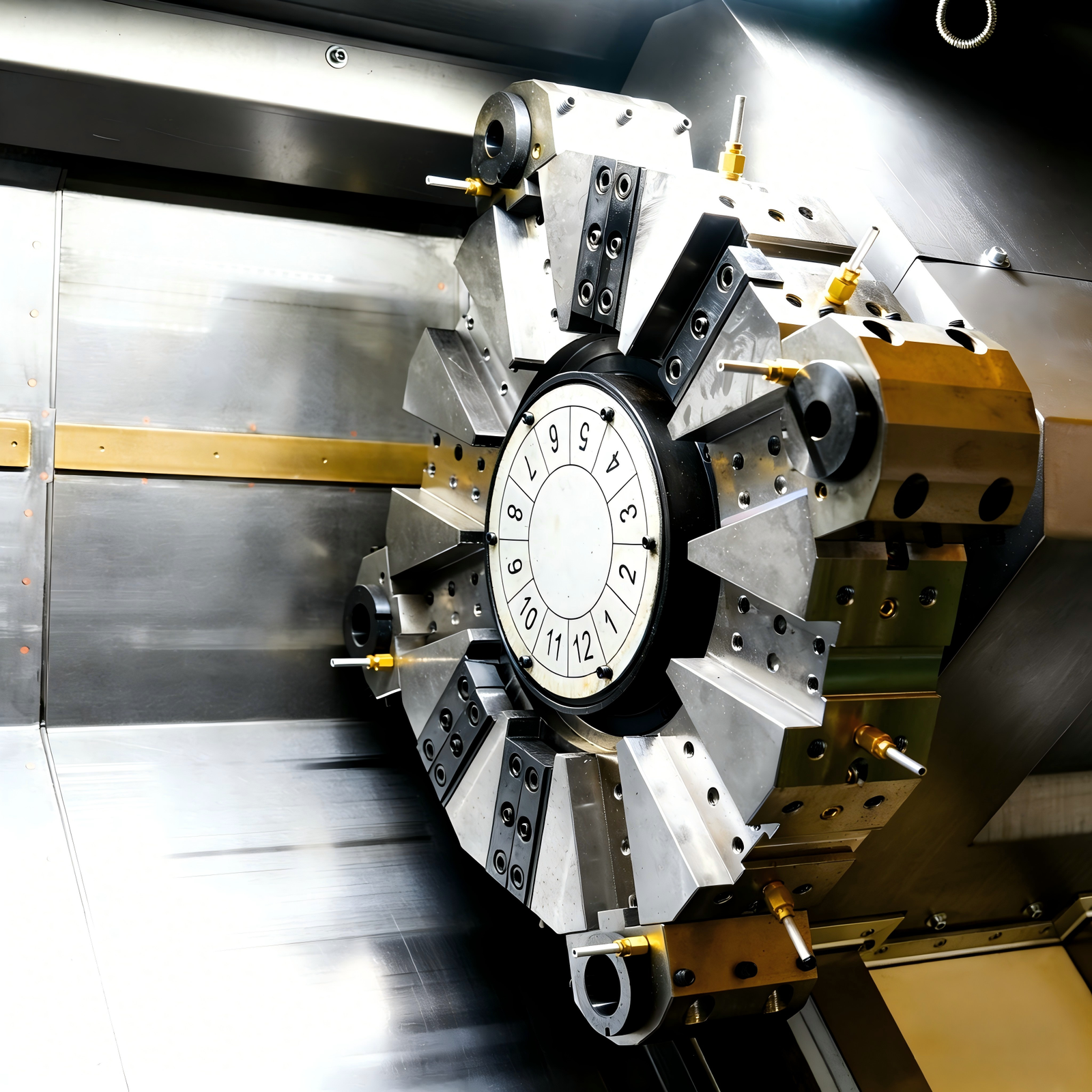

It can perform various turning, drilling, and milling operations on shaft and disc-shaped parts. This machine tool is widely used in the processing of shaft and disc-shaped parts in industries such as automotive parts, molds, bearings, and coal mining machinery manufacturing. Parts can automatically complete multiple processes such as turning, boring, drilling, reaming, and boring in a single clamping. Features include a 45° inclined bed guideway layout, a high-rigidity 12-position turret, high-capacity and high-rigidity sliding guideways, and a modular design with multiple configuration options.

Machining Range:

Bed rotation diameter 520mm-900mm, maximum cutting length 1000mm-3000mm.
