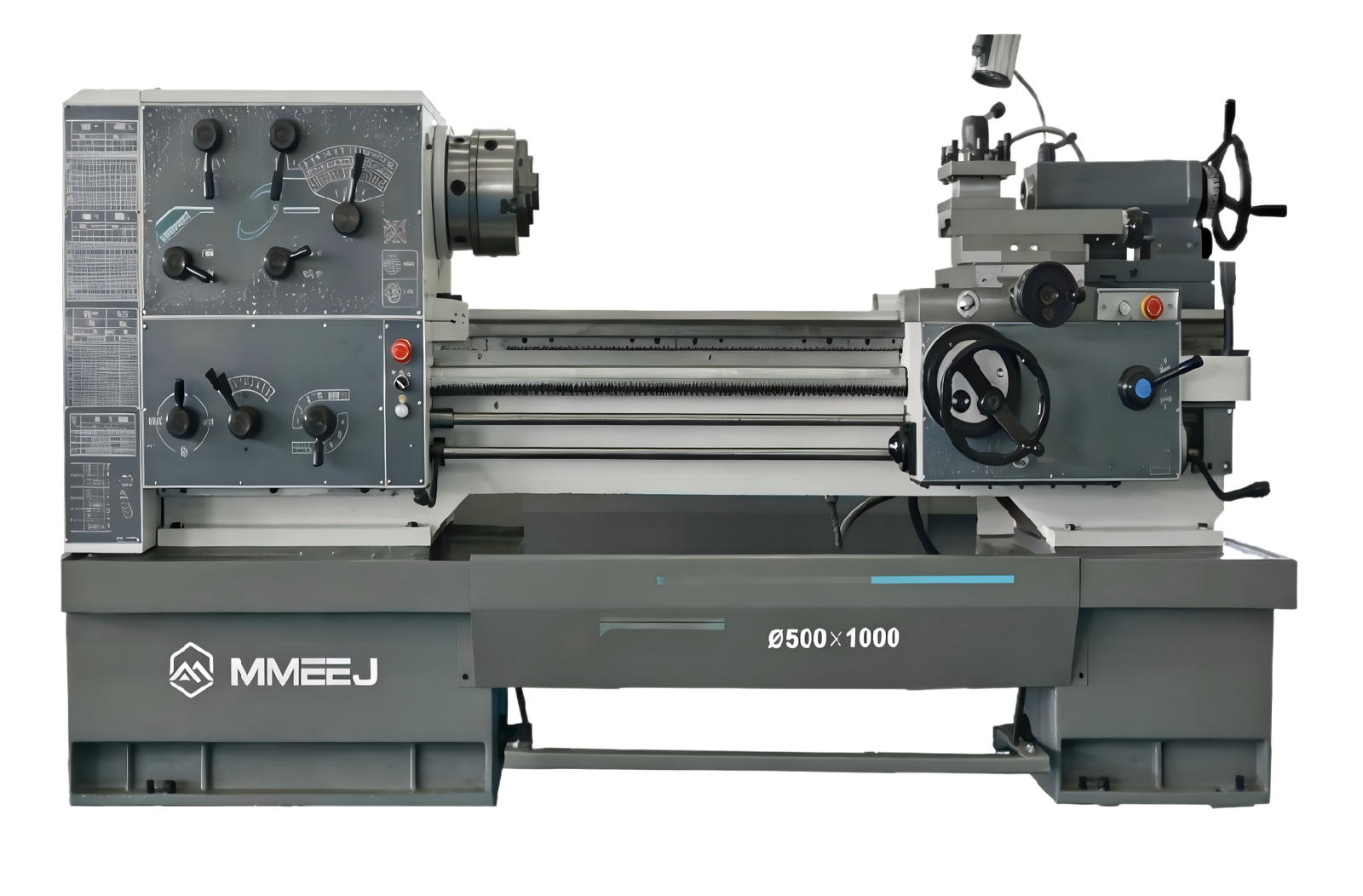

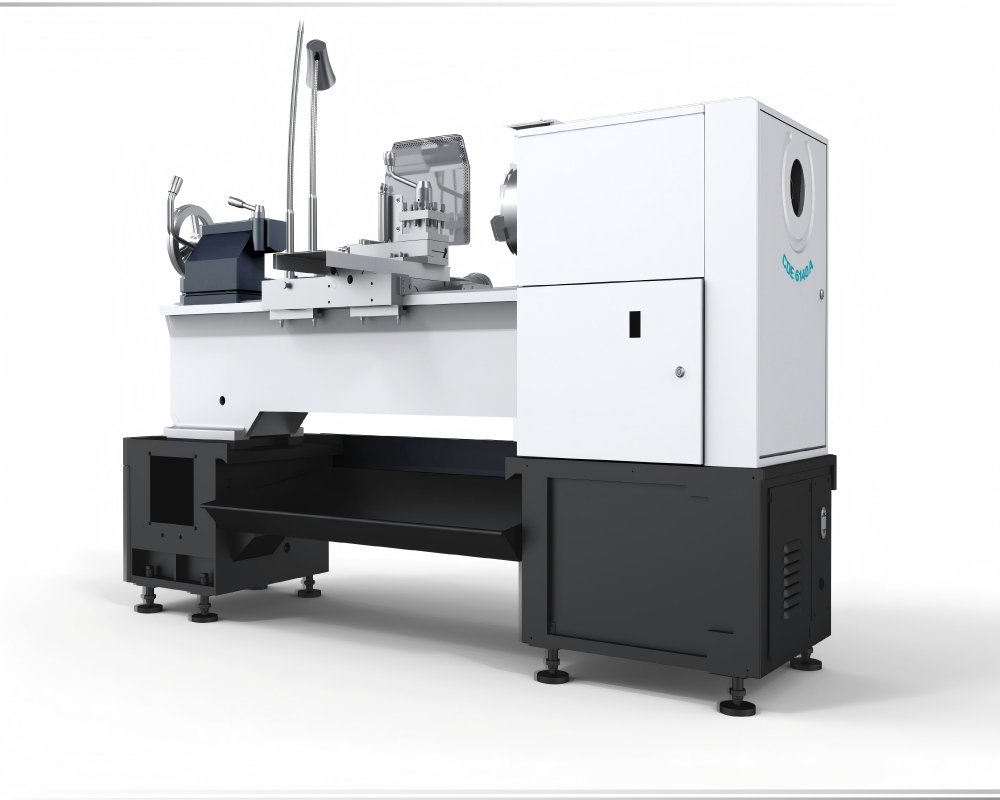

Horizontal Lathe （CDS series）
Product Presentation：
The CDSB/C series lathes can perform various turning operations, such as turning the internal and external cylindrical surfaces, end faces, and conical surfaces of parts;
lathes with saddles can be used to turn large-diameter or irregularly shaped parts;
Metric or imperial lead screw lathes are available upon request, capable of turning metric, imperial, module, and diametrical pitch threads.Drilling, reaming, and oil groove drawing are also possible；
Machining range:
Maximum turning diameter 500mm-660mm, maximum workpiece length 1000mm-3000mm.
Description

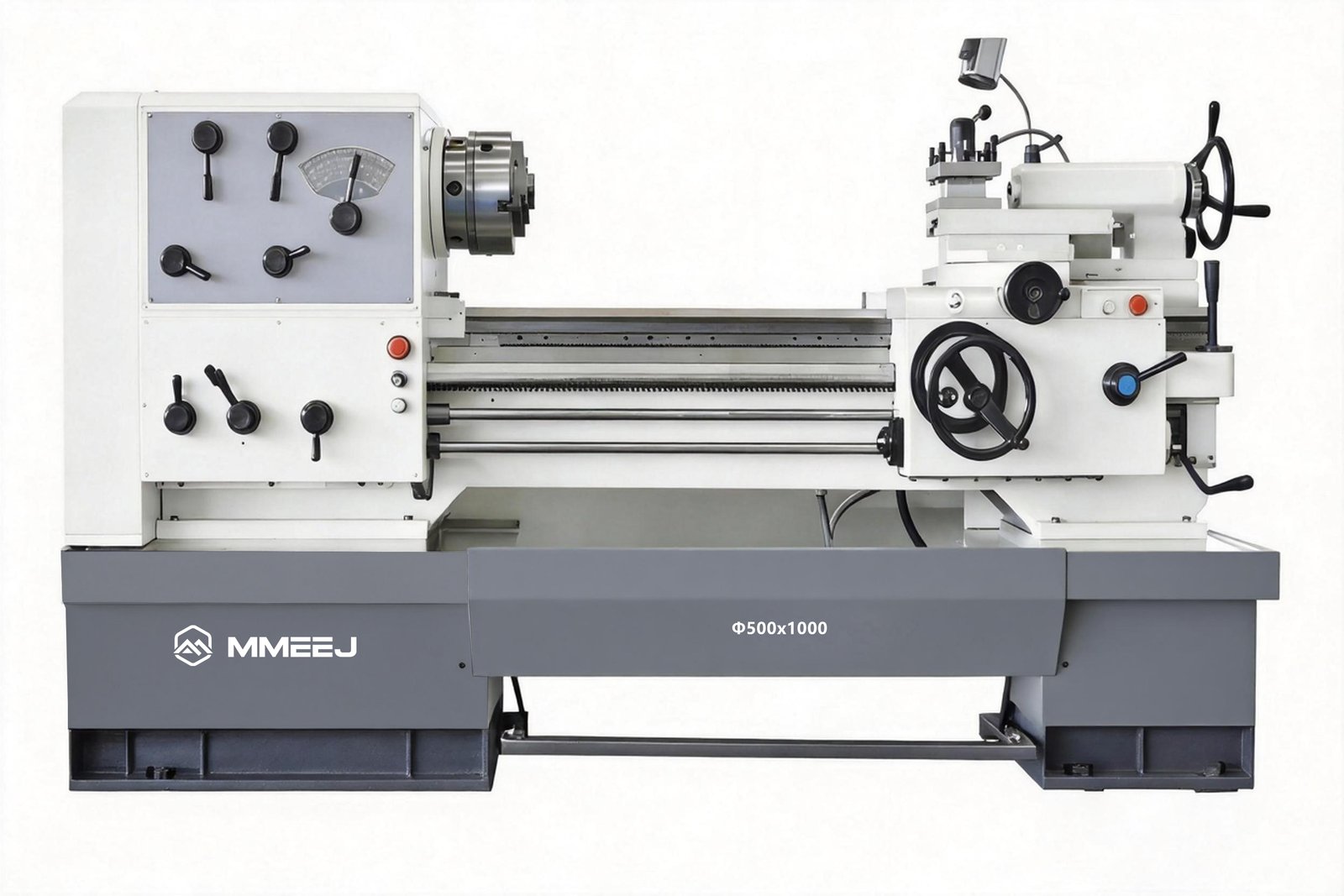

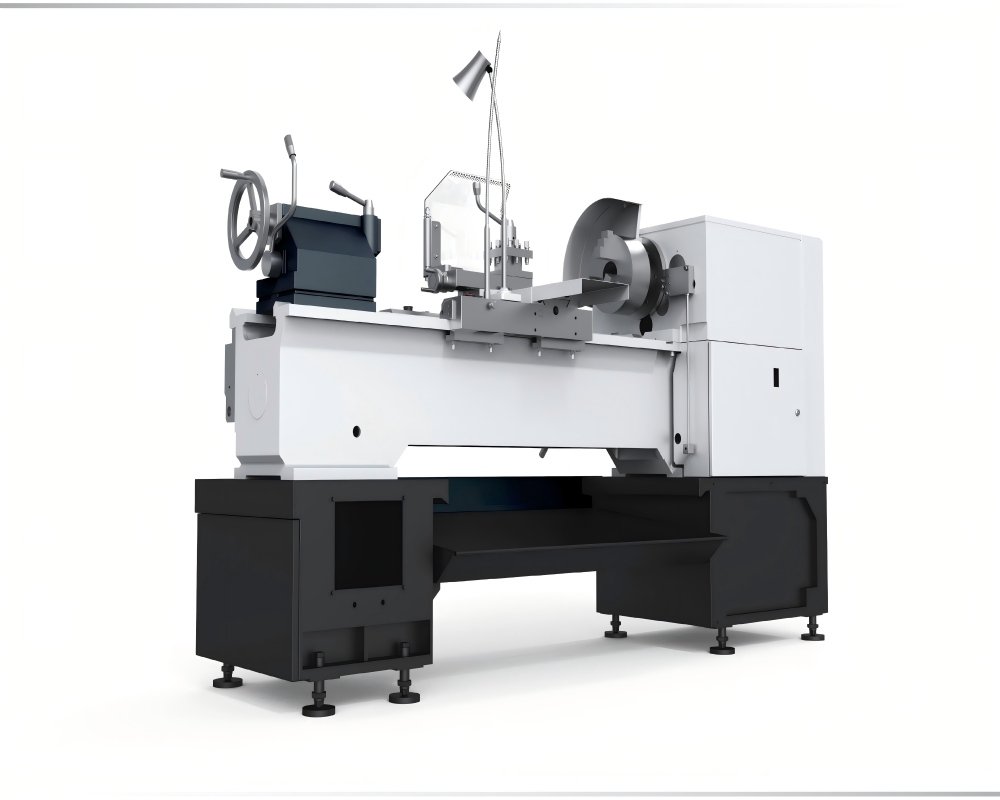

CDS series

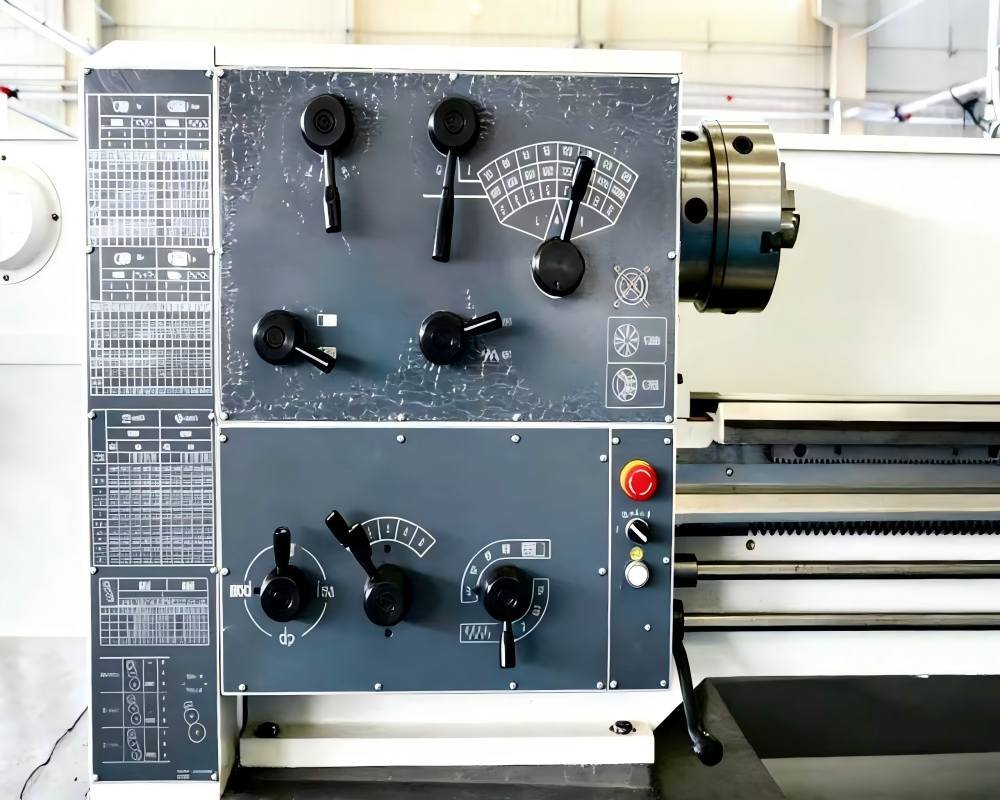

| Product model | Unit | CDS6150B | CDS6250B | CDS6166B | CDS6266B | CDS6150C | CDS6250C | CDS6166C | CDS6266C |
| Specification | |||||||||
| Max.Swing diameter over bed | mm | φ500 | φ660 | φ500 | φ660 | ||||
| Max.Swing diameterover cross slide | mm | φ290 | φ440 | φ290 | φ440 | ||||
| Max.Swing diameter in gap | mm | 一 | φ760 | 一 | φ870 | 一 | φ760 | 一 | φ870 |
| Length in gap | mm | 一 | 280 | 一 | 280 | 一 | 280 | 一 | 280 |
| Max.workpiece length | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | ||||||
| Max.cutting length | mm | 950/1450/1950/2950 | 950/1450/1950/2950 | ||||||
| Spindle | |||||||||
| Spindle nose | D8 | D8 | |||||||
| Spindle bore | mm | φ82 | φ105 | ||||||
| Chuck size | mm | φ250 | φ315 | φ250 | φ315 | ||||
| Taper of spindle bore | 90 mm/1:20 | 110mm/1:20 | |||||||
| Max.Spindle torque | Nm | 1100 | 1100 | ||||||
| Spindle speed ranges | rpm | 26-2000(16Speeds) | 26~1700(16Speeds) | ||||||
| Spindle centre height | mm | 250 | 325 | 250 | 325 | ||||
| Spindle motor power | kW | 7.5(10 HP) | 7.5(10 HP) | ||||||

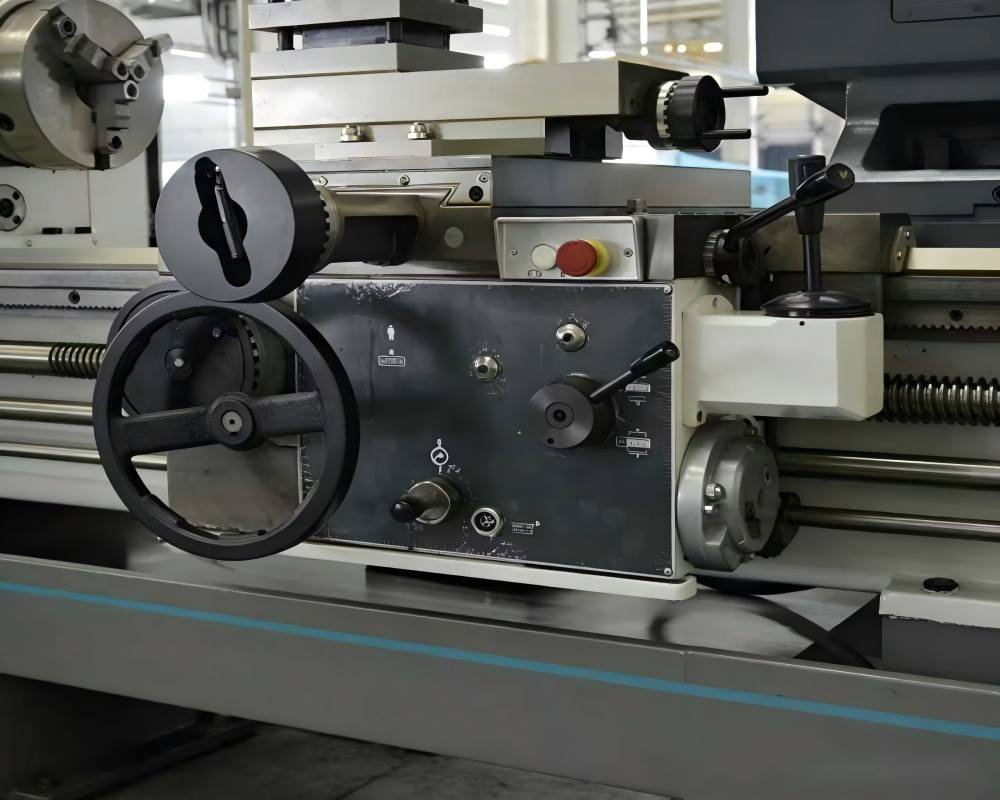

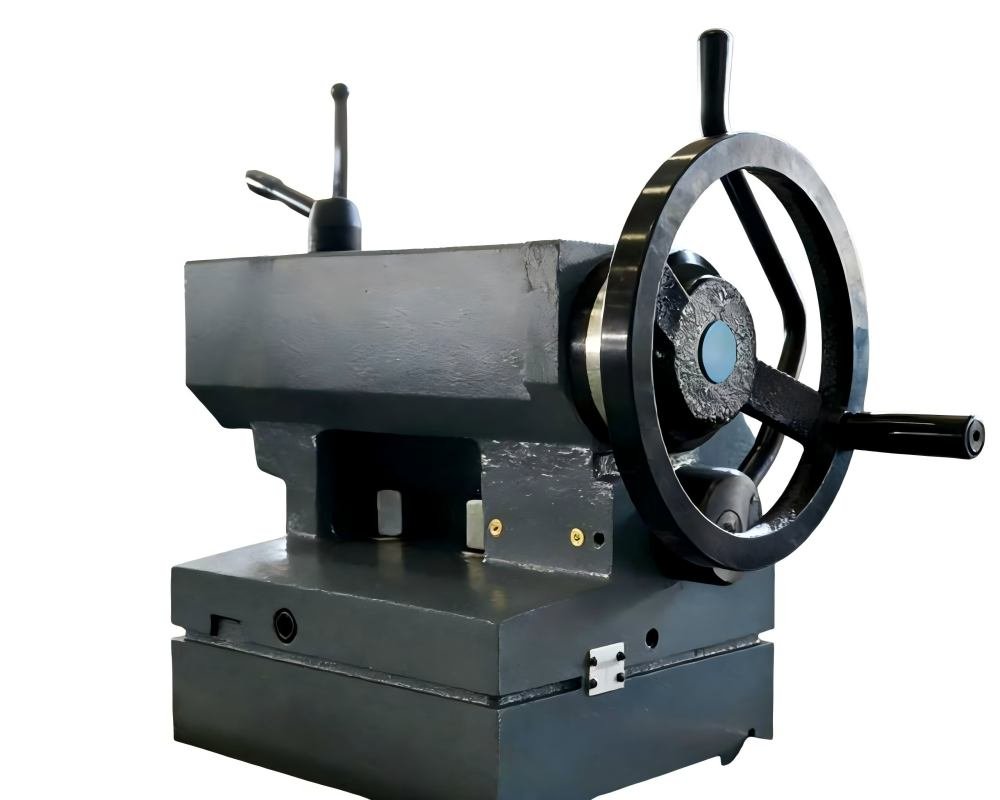

| Tailstock | |||||||||
| Diameter of tailstock quill | mm | φ75 | φ75 | ||||||
| Travel of tailstock quill | mm | 150 | 150 | ||||||
| Taper oftailstock quill | No.5MT | No.5MT | |||||||
