Horizontal Gear Hobbing
The Horizontal gear hobbing machines, with their horizontal clamping advantage, have become the mainstay in shaft gear machining. Our company has formed a complete product matrix, ranging from ordinary machines to high-end CNC equipment.
Machining modules range from 0.1m to 6m, and machining diameters range from 10mm to 100mm. Systems and the number of control axes are optional. Fixtures and various hobs can be provided according to the parts.

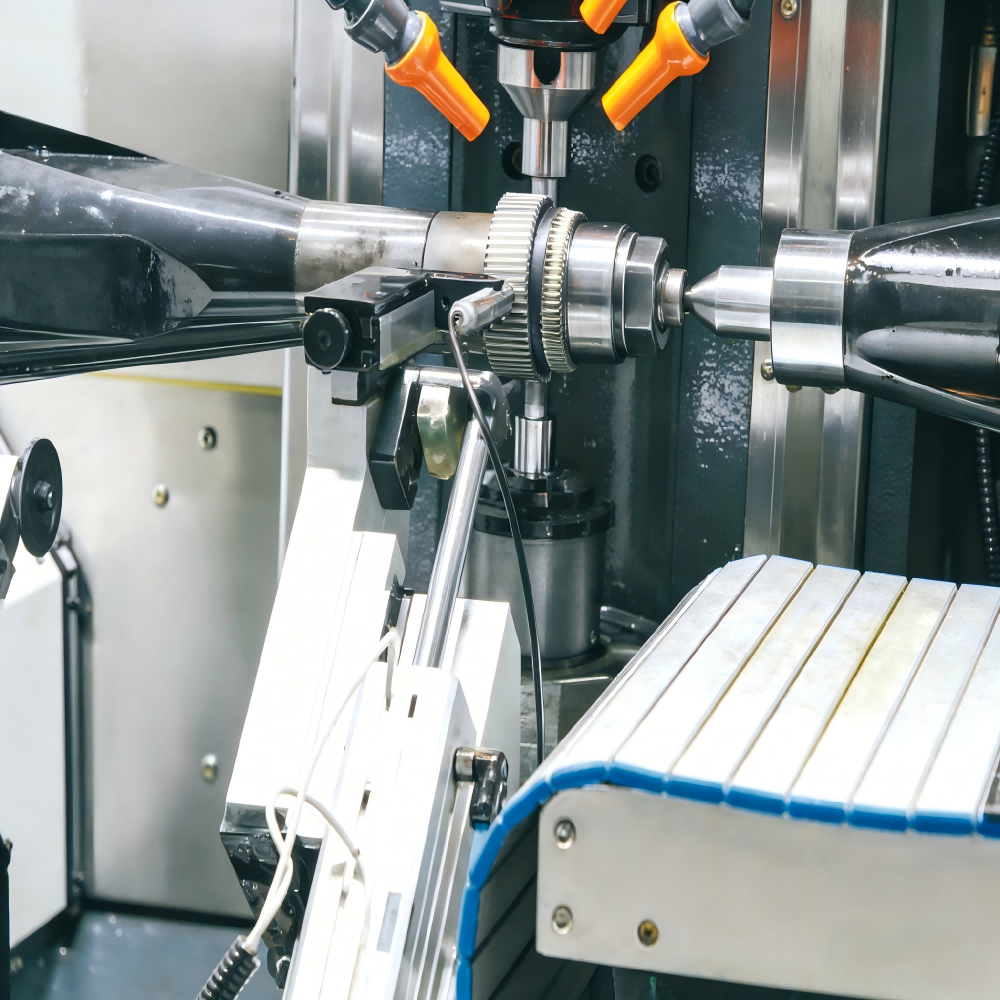

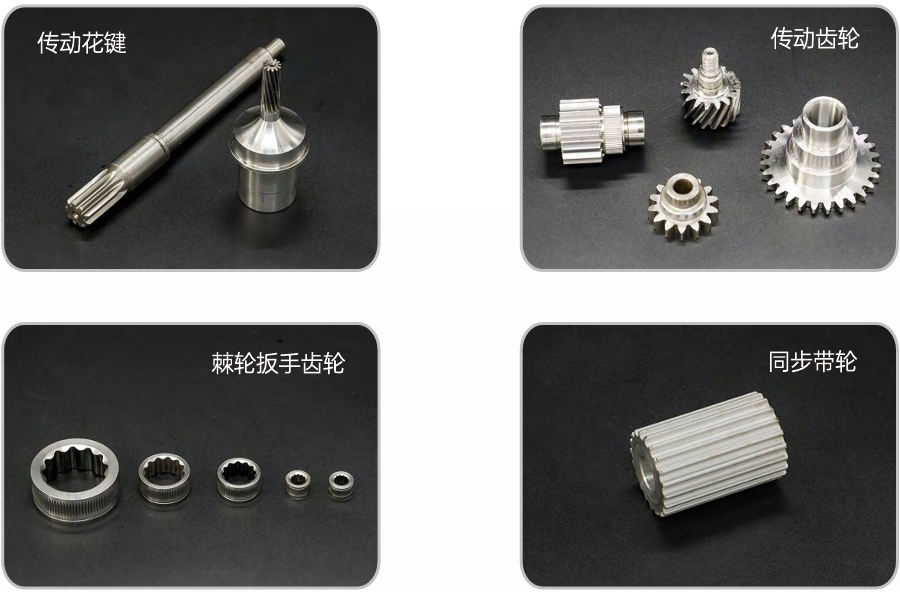

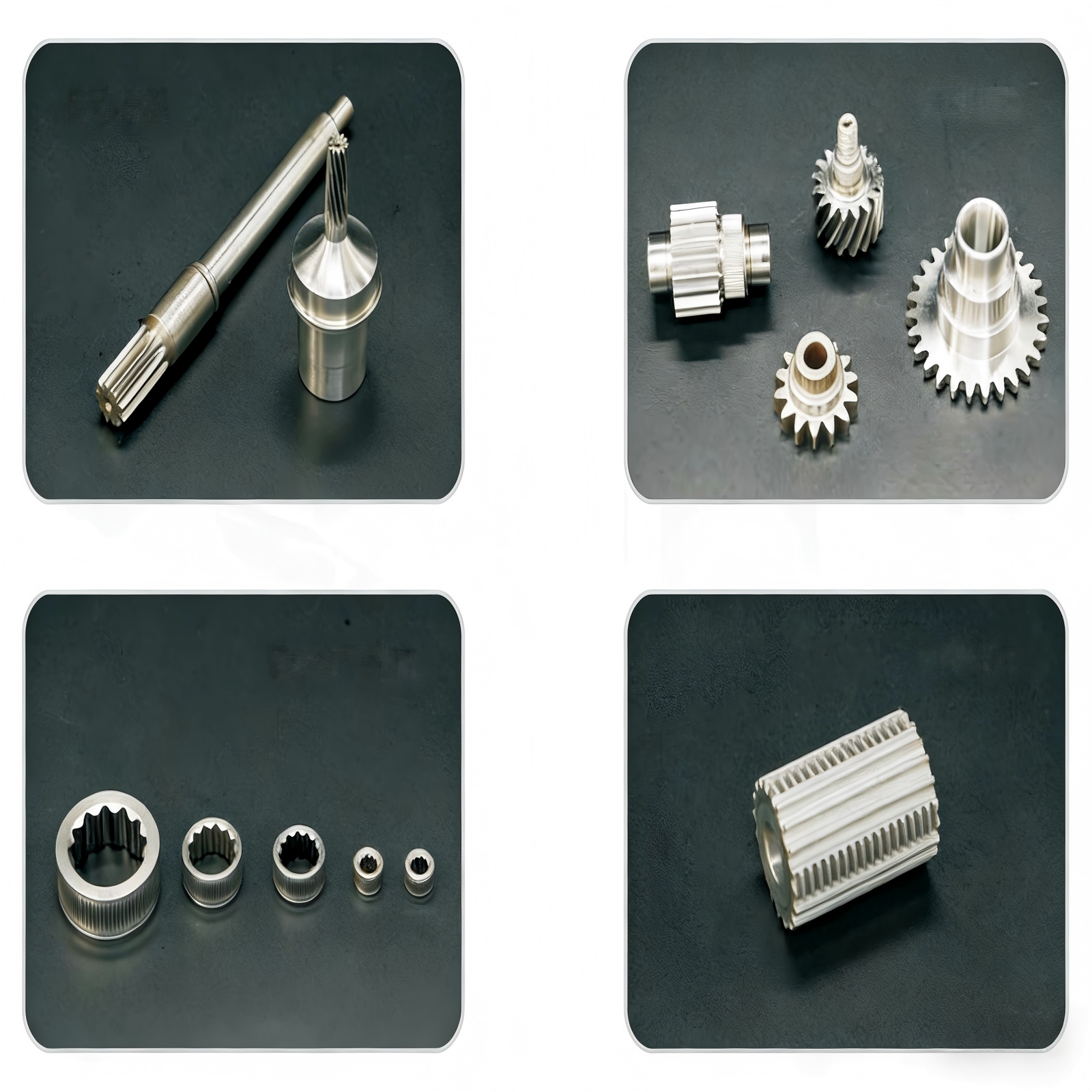

Horizontal gear hobbing machine can process the following products:
Description
Horizontal Gear Hobbing
| Description | Unit | Specification | ||||

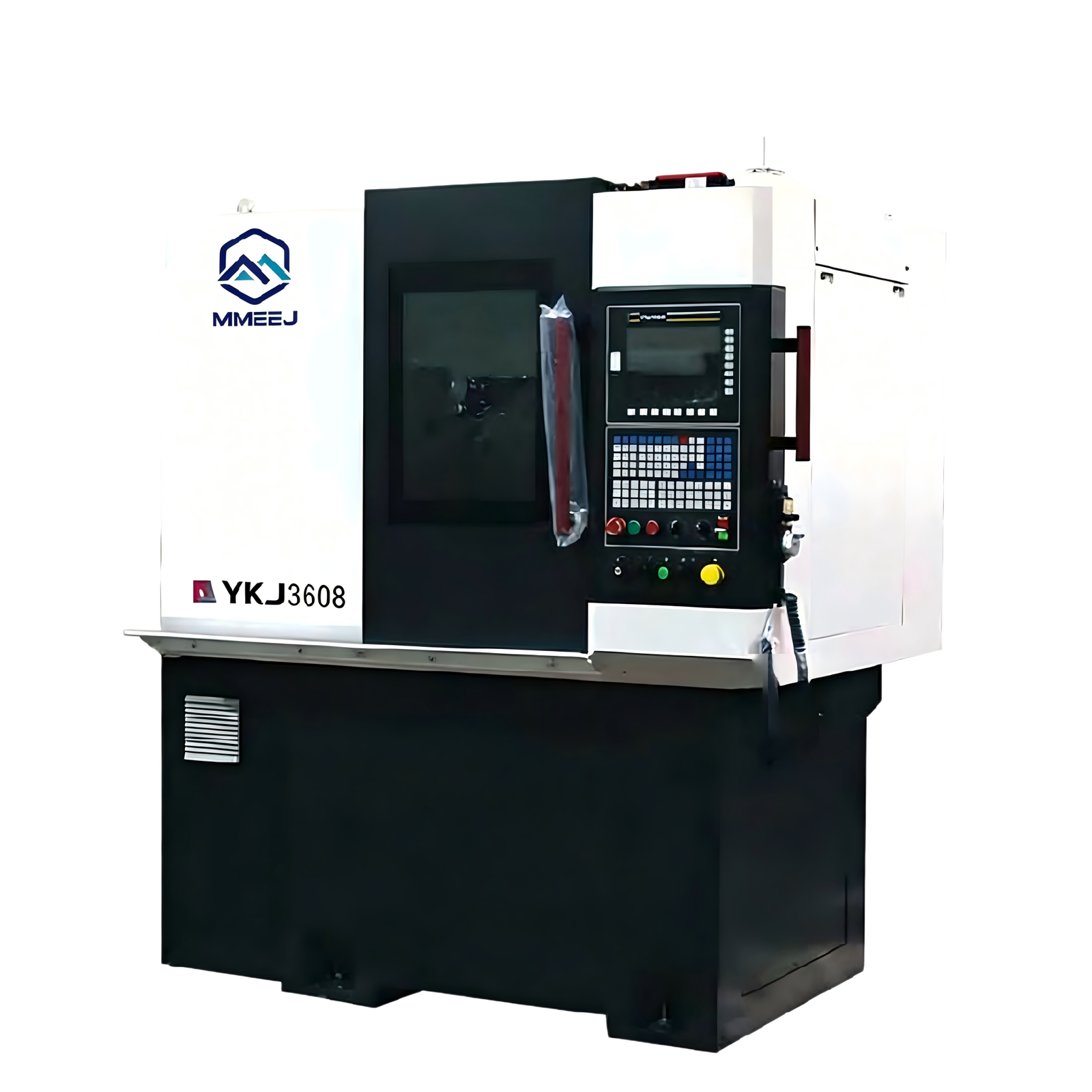

| YKJ3608 | YKJ3608/1 | YK 3608 | YK 3608/1 | YK 3608/2 | ||
| Max.working diometer | mm | φ80 | φ80 | φ80 | φ80 | φ80 |
| Max.working module | mm | 1.5 | 1.5 | 2 | 1.5 | 1.5 |
| Workpiece spindle rpm | r/min | 500 | 500 | 500 | 500 | 500 |
| Hob spindle rpm | r/min | 2500 | 2500 | 2000 | 2000 | 3000 |
| Hob shifting length | mm | 60 | 60 | 60 | 60 | 60 |
| Z-Slide travel | mm | 200 | 200 | 150 | 150 | 150 |
| Hob head swing angle | degree | ±45 | -40~+65 | ±40 | -40~+65 | -40～+65 |
| Min.Tooth number | piece | 3 | 3 | 3 | 3 | 3 |
| Max.hob dia×length | mm | φ63×60 | φ63×60 | φ63×60 | 63×60 | φ63×60 |
| Total power | kVA | 8 | 8 | 10 | 10 | 10 |
| Overall dimension (L/W/H) | mm | 1650×1600×1900 | 1650×1600×1900 | 1950×1285×2100 | 1950×1285×1980 | 1950×1285×1980 |
| Machine weight | t | ≈3 | ≈3 | ≈3 | ≈3 | ≈3 |
