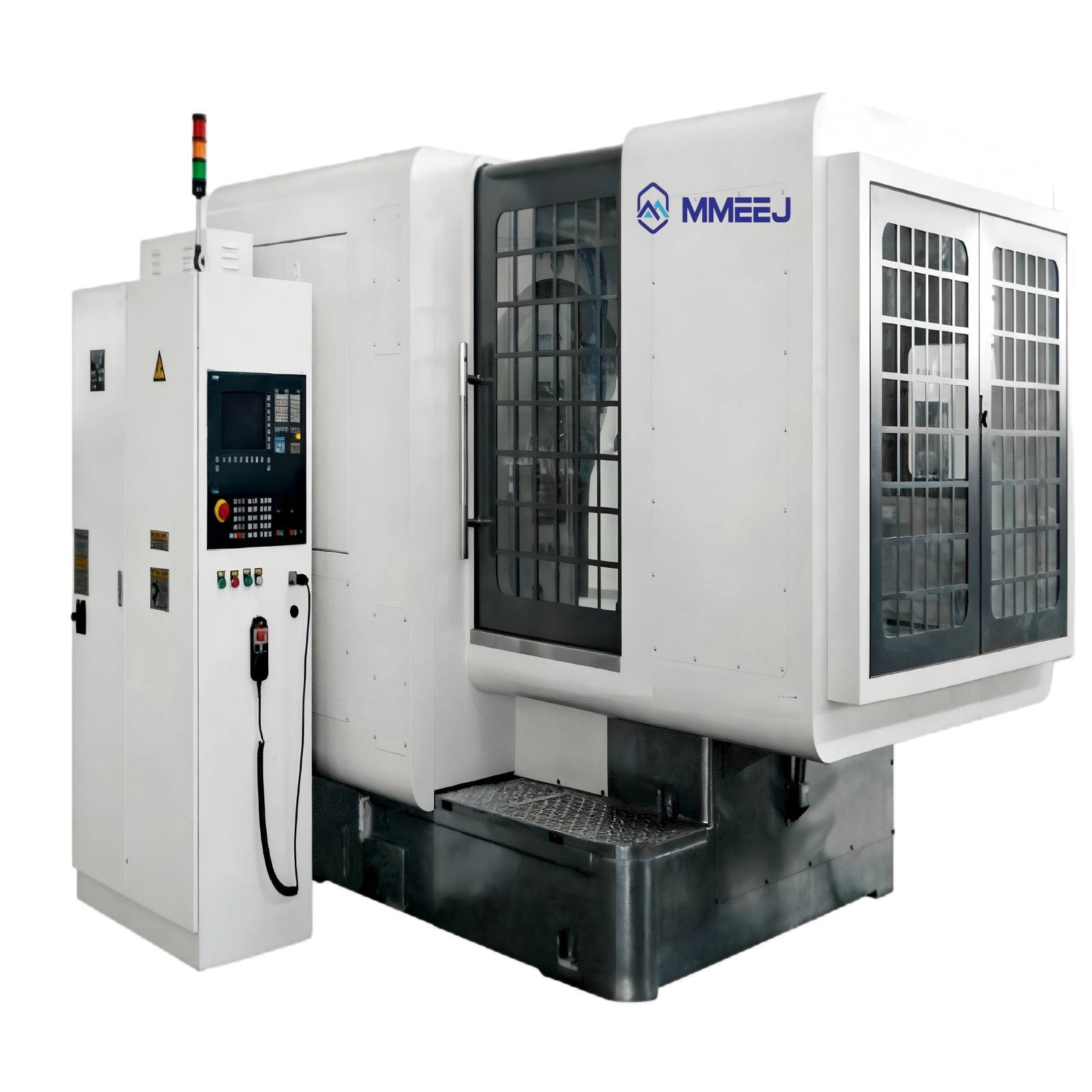

Gear Milling Machine YK22 Series

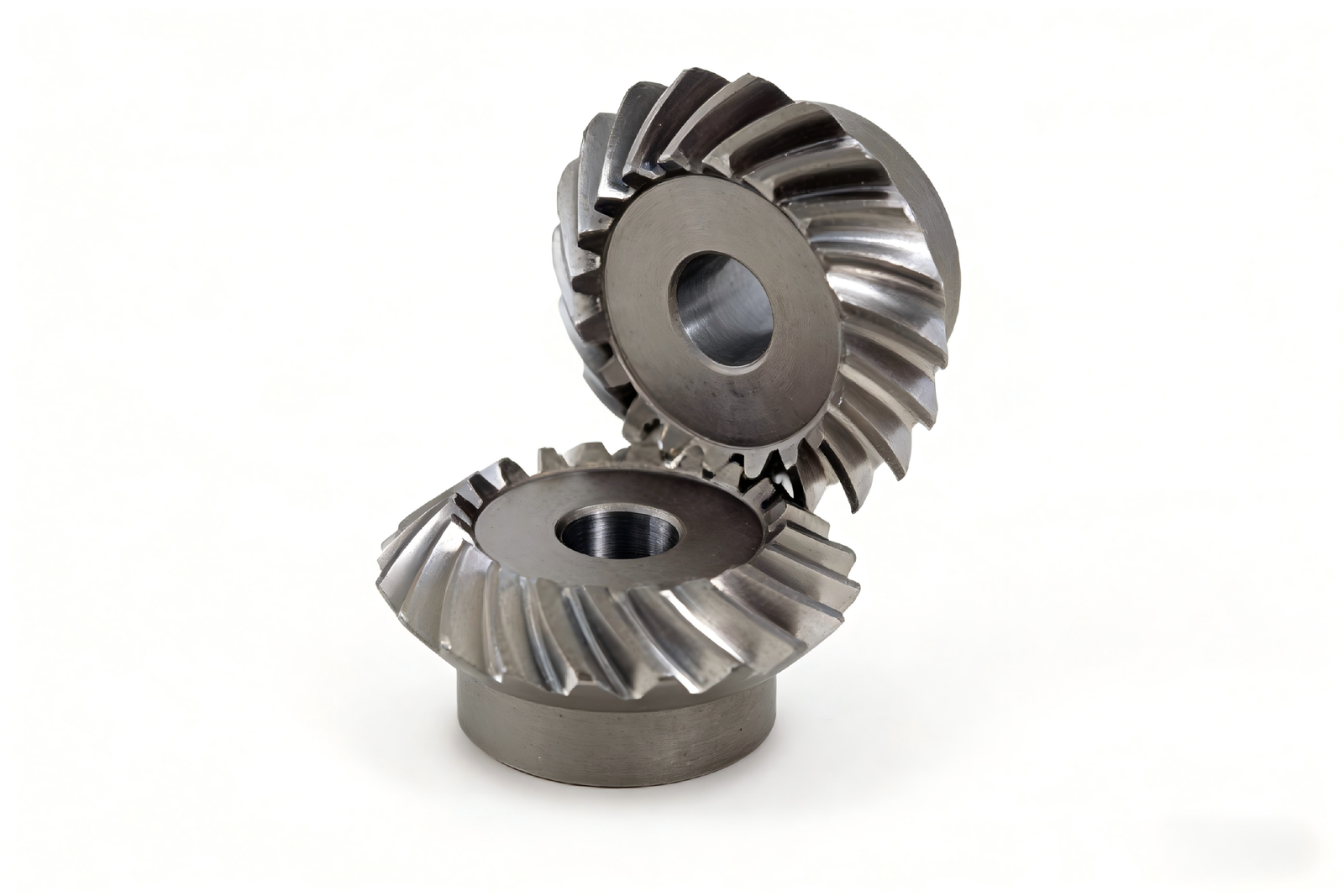

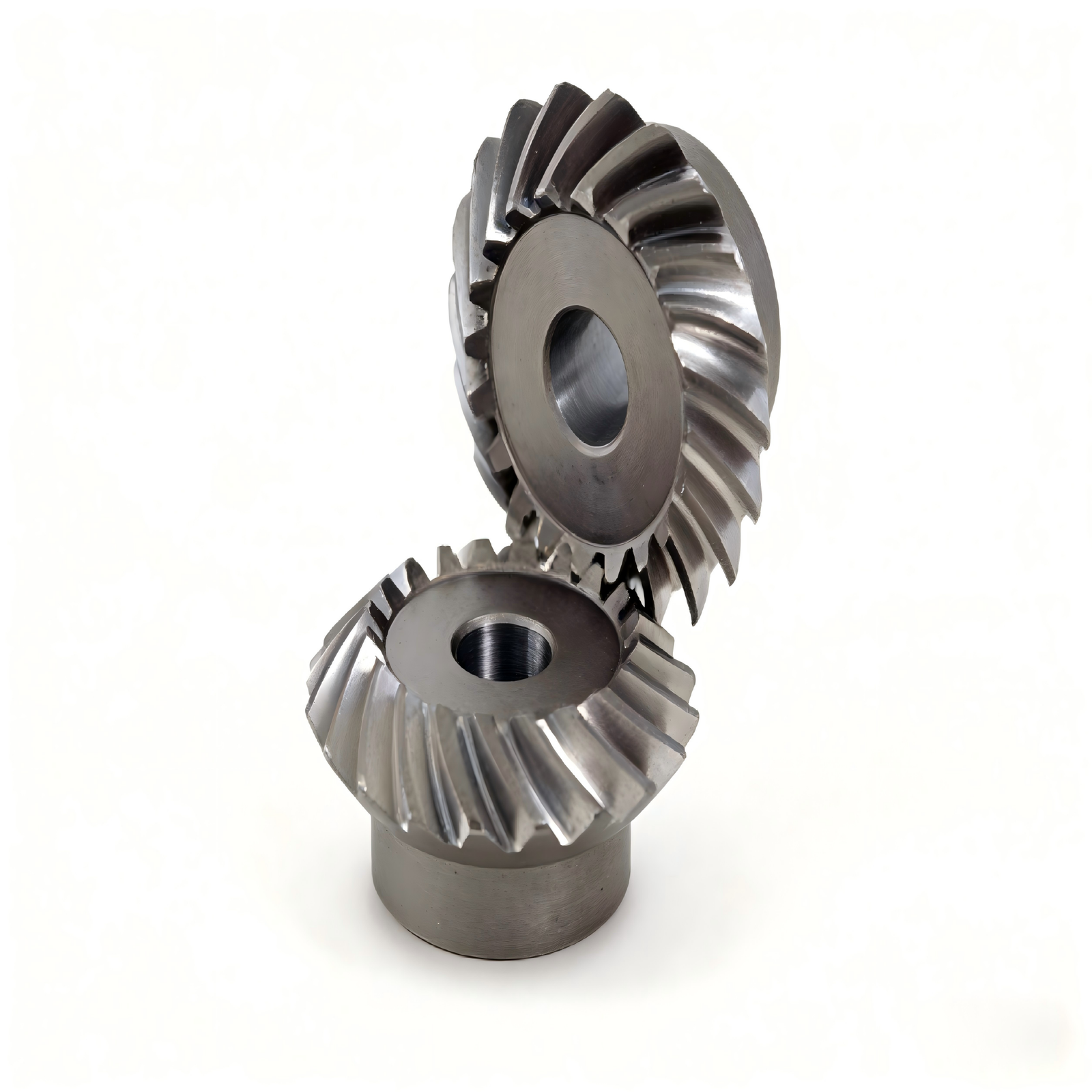

The YK22 series of machine tools has a wide application scope, covering the basic requirements for bevel gear processing in various domestic industries. It plays an important role in fields such as electric tools, automobiles, engineering machinery, aircraft, ships, new energy, smart home appliances, and precision machine tools.
Adopts the SIEMENS 828D CNC system. FANUC and domestic systems can be configured according to user requirements.
The accuracy of the workpiece processed by the machine tool can reach GB grade 6-7.
The YKH model is a 4-axis CNC machine tool with convenient adjustment. It can program the hobbing, gear dividing, infeed, and cutter speed according to the requirements of different cutting methods, which greatly improves the processing efficiency of small-module bevel gears.

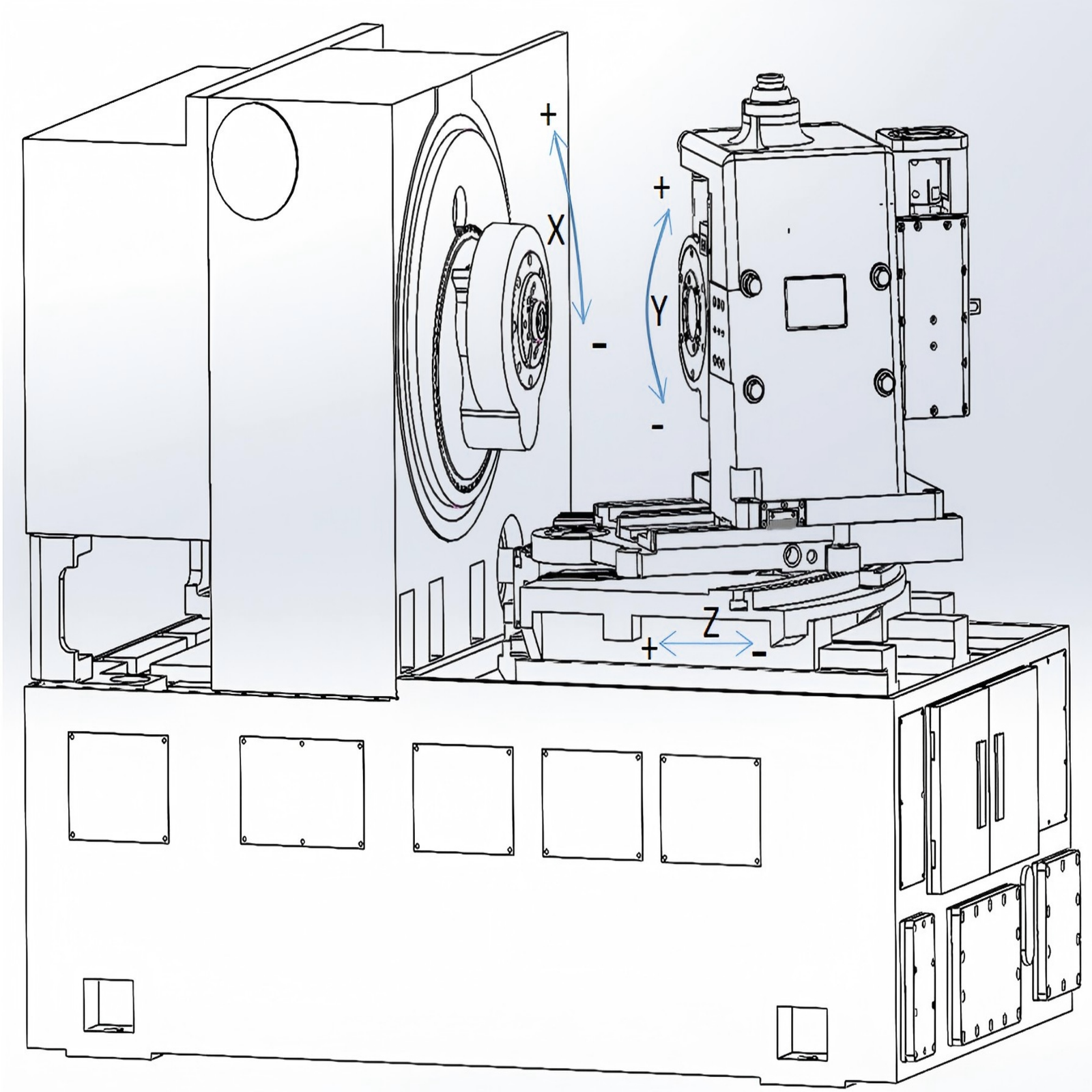

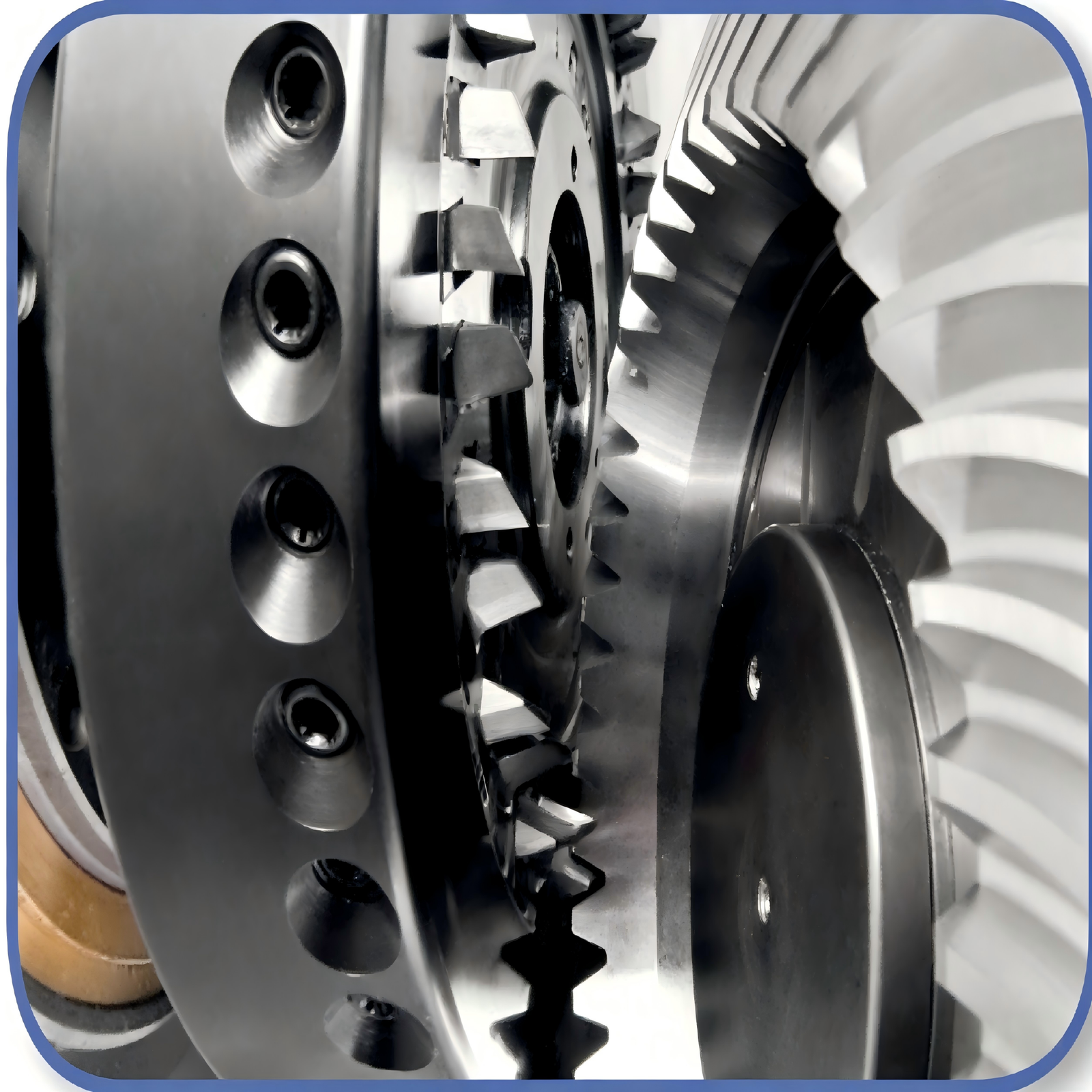

The YK model is a 3-axis CNC spiral bevel gear milling machine. It adopts the traditional and classic cradle-type structure, which provides extremely high structural rigidity and transmission rigidity, ensuring stable machine accuracy and a long service life.
Equipped with full protection, an automatic chip remover, and an independently sealed electrical control cabinet.
Description
Gear Milling Machine
| Items | Unit | YKH2212 | YK2212B | YK2232 | YKT2250 | YKD2280 | YK22160 |
| Max.Module | mm | 2.5 | 3 | 6 | 10 | 15 | 30 |
| Max.Workpiece Dia | mm | 125 | 125 | 320 | 500 | 800 | 1610 |
| Max.Ratio | 10:1 | 10:1 | 10:1 | 10:1 | 10:1 | 10:1 | |
| Max.Face width | mm | 20 | 20 | 40 | 70 | 100 | 240 |
| Teeth Number | 5～100 | 5～100 | 5～100 | 5～100 | 4～100 | 4～100 | |
| Cutter Size | inch | 0.5"、1 "、1.5"、2"、3.5" | 0.5"、1 "、1.5"、2"、3.5" | 6”、7.5”、9" | 6”、9”、12" | 6”、9”、12"、18" | 18"～40" |
| Machine Weight | kg | 2300 | 2600 | 6000 | 6500 | 12500 | 95000 |
