Fixed Beam Gantry Machining Center

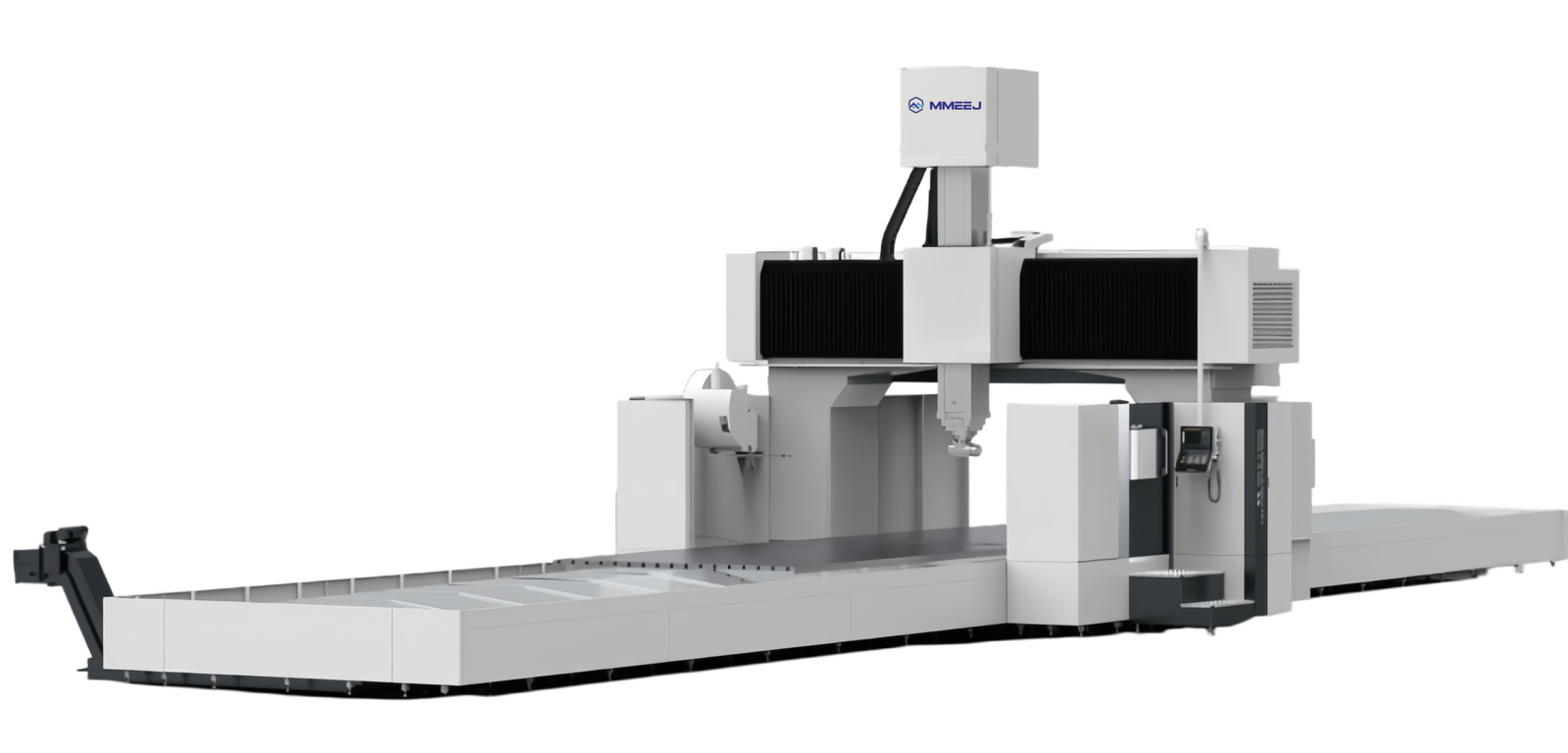

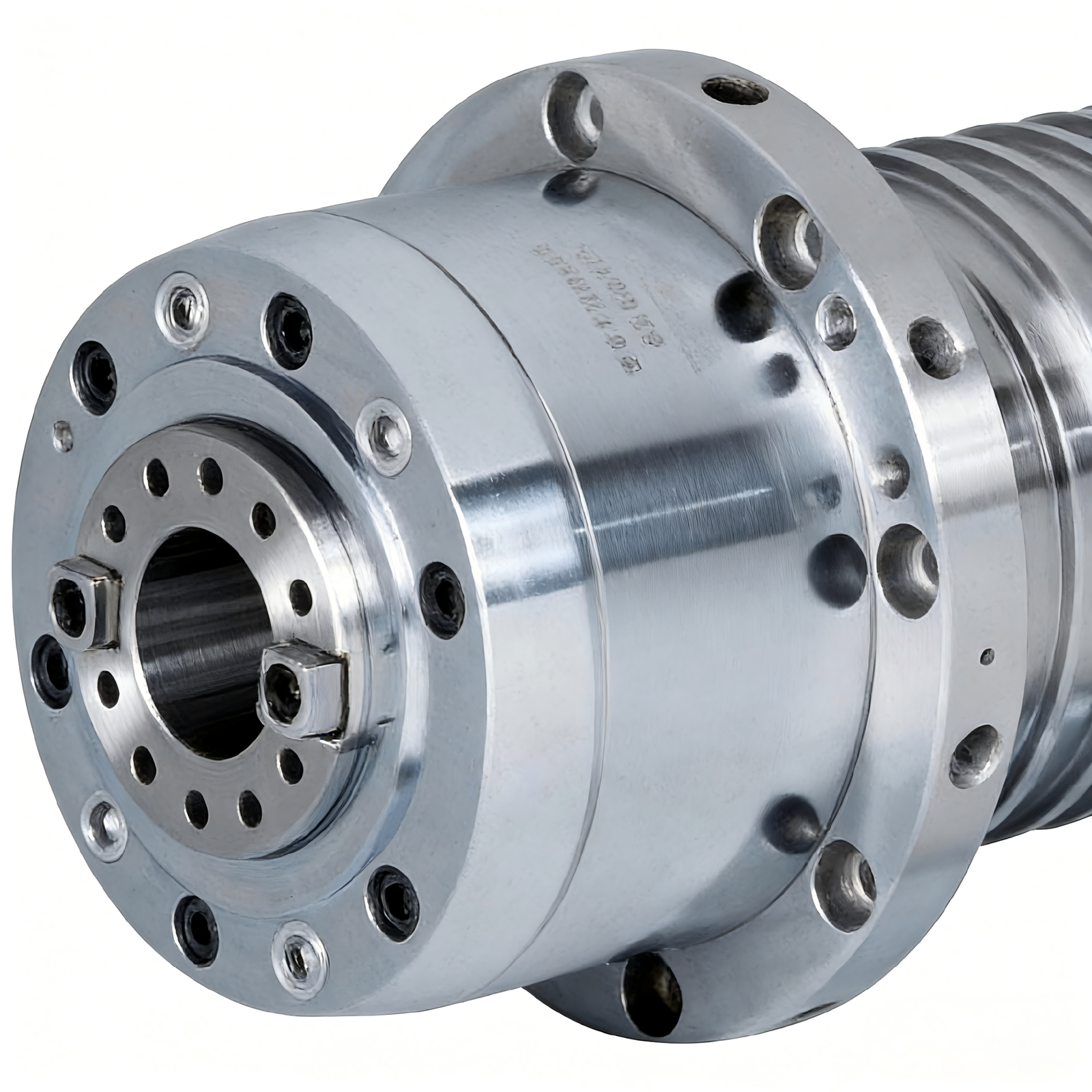

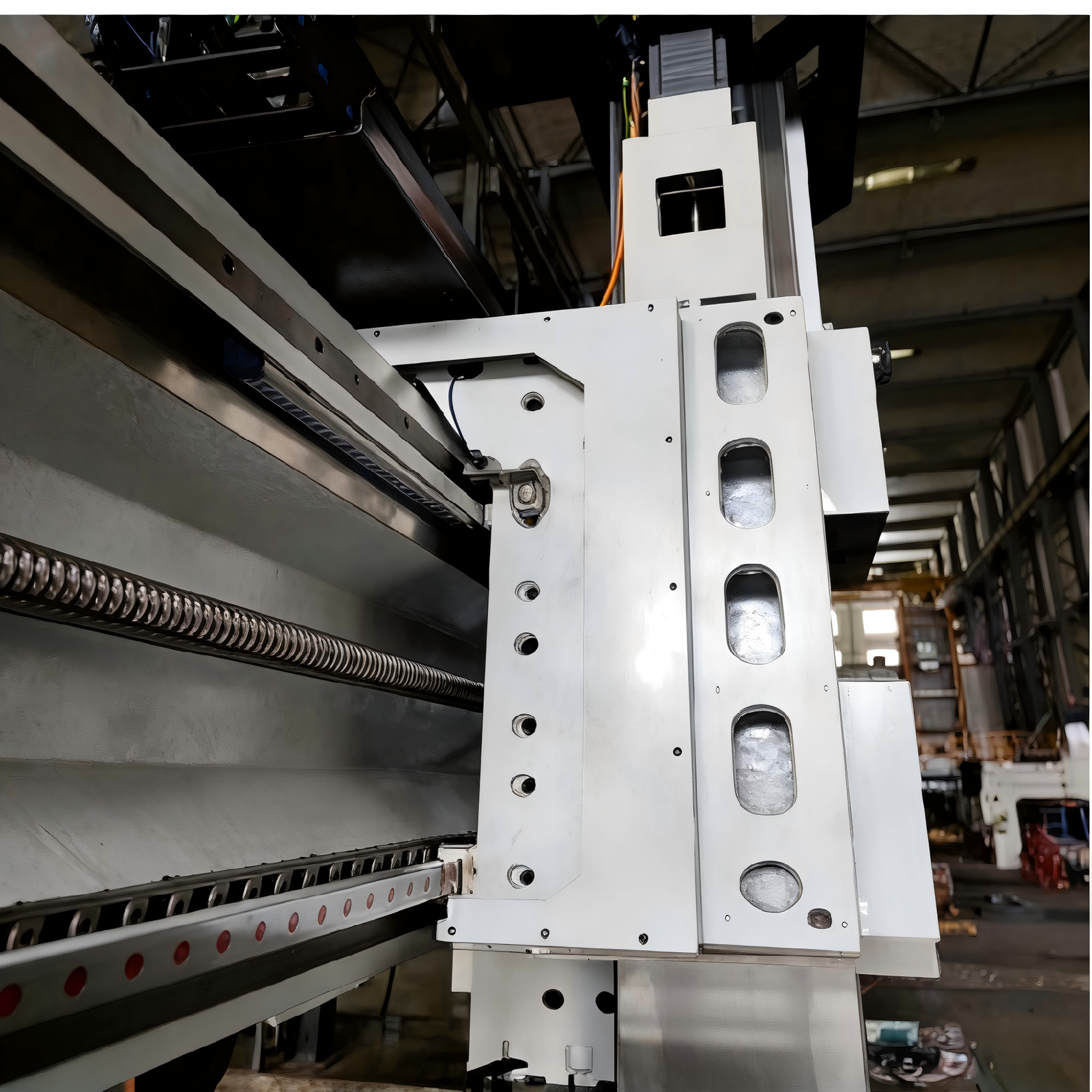

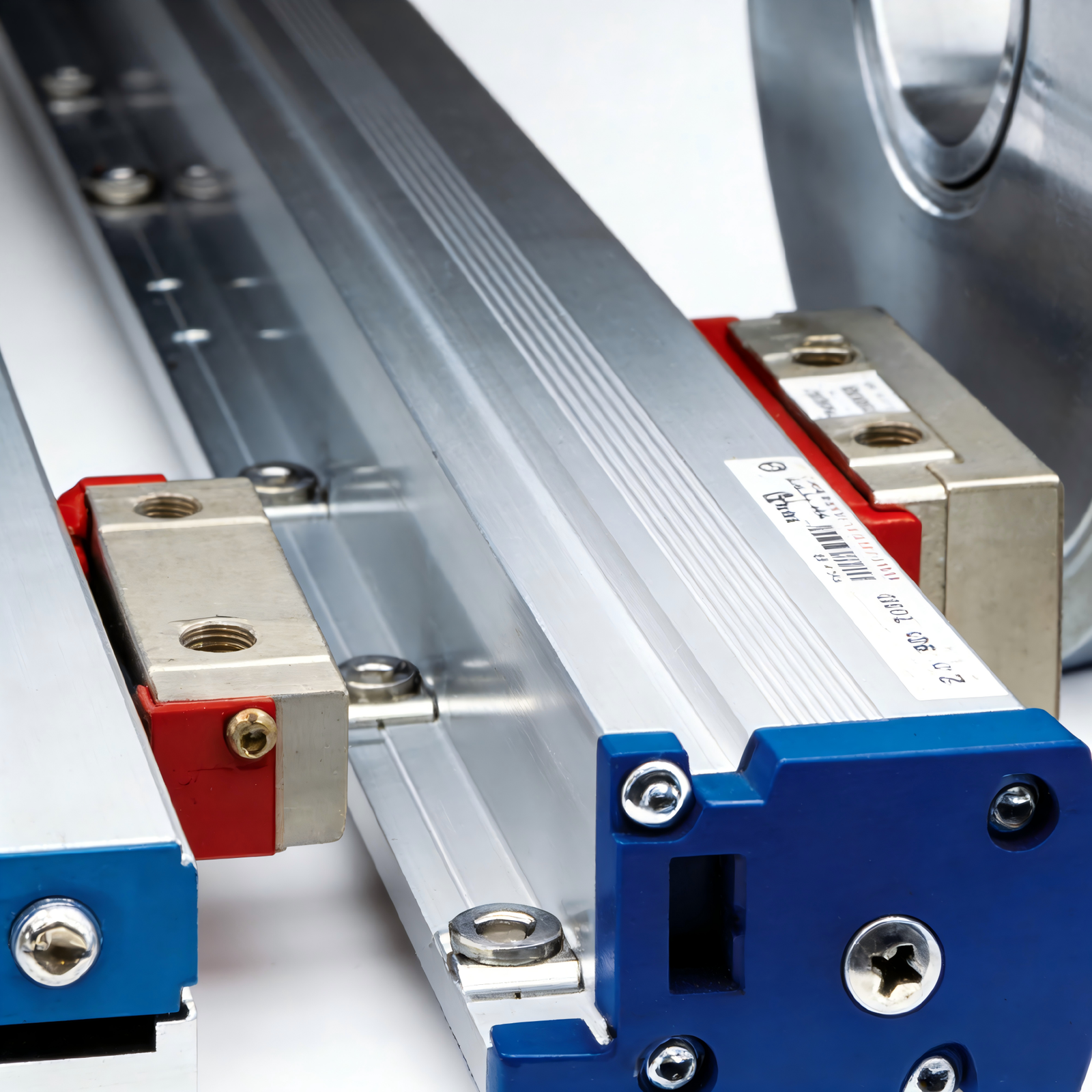

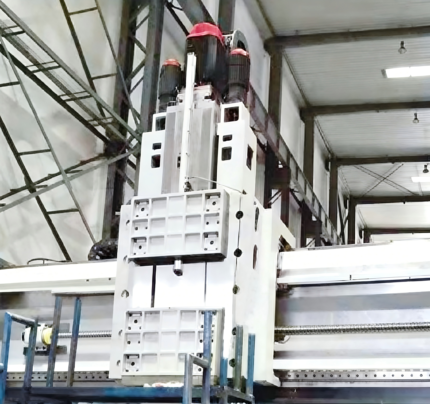

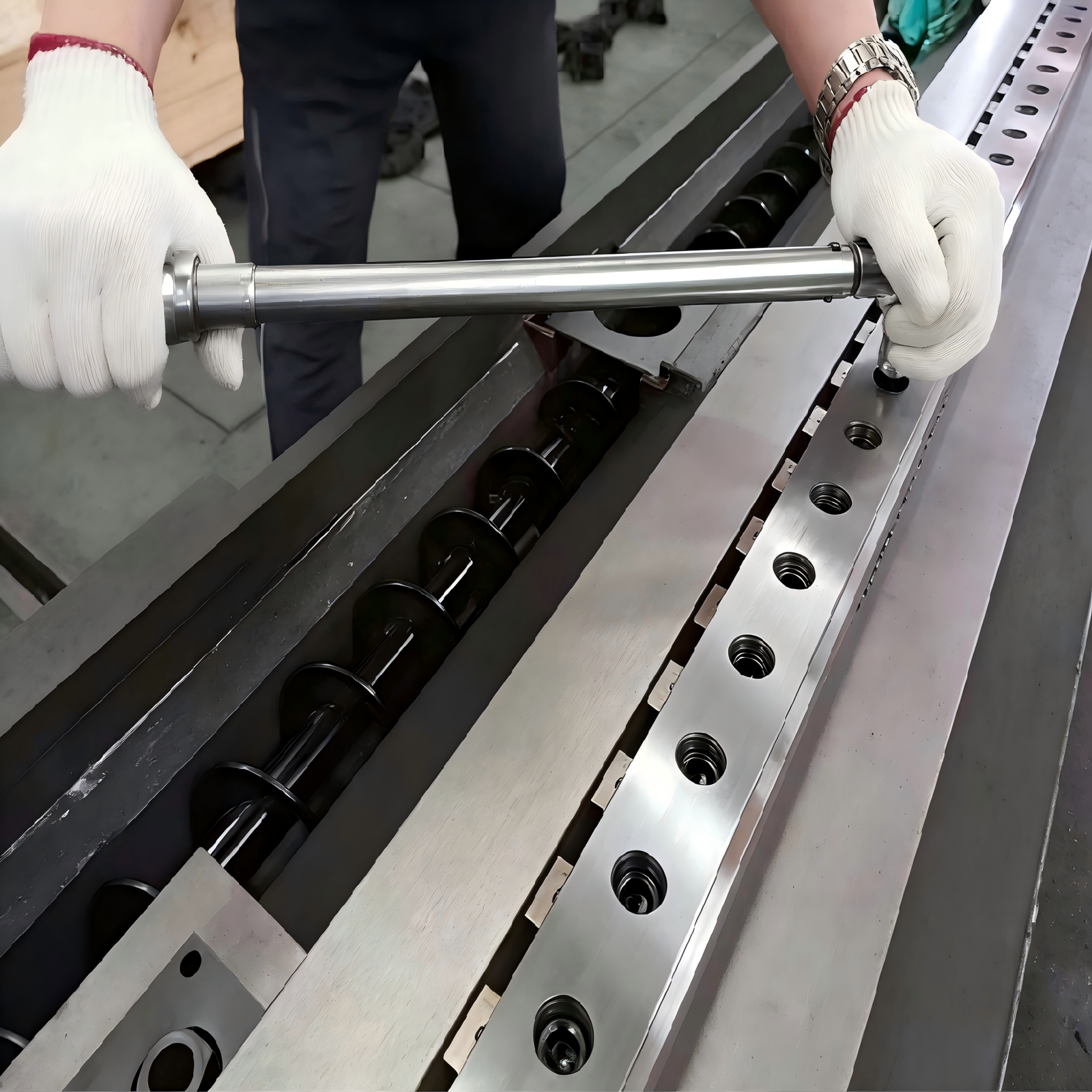

The machine adopts high rigidity gantry frame structure, the important parts are made of resinsand castings, and after two manual aging treatment, hasenough static and dynamic rigidity and good accuracy retention ，The three axes of the machine adopt high precision double nut preload roller screw, and prestretch, strong transmission rigidity, stable and reliable precisicon. X/Y axis adopts heavy-duty linear guide rail (roller) structure, Z axis adopts rectangular hard rail structure, Z axis is equipped with double nitrogen liquid balance cylinder, small motion inertia, fast response speed ，Machine spindle adopts Taiwan high rigidity spindle unit, long service lifgh reliability, optional gear head drive or spindle motor direct transmission structure.

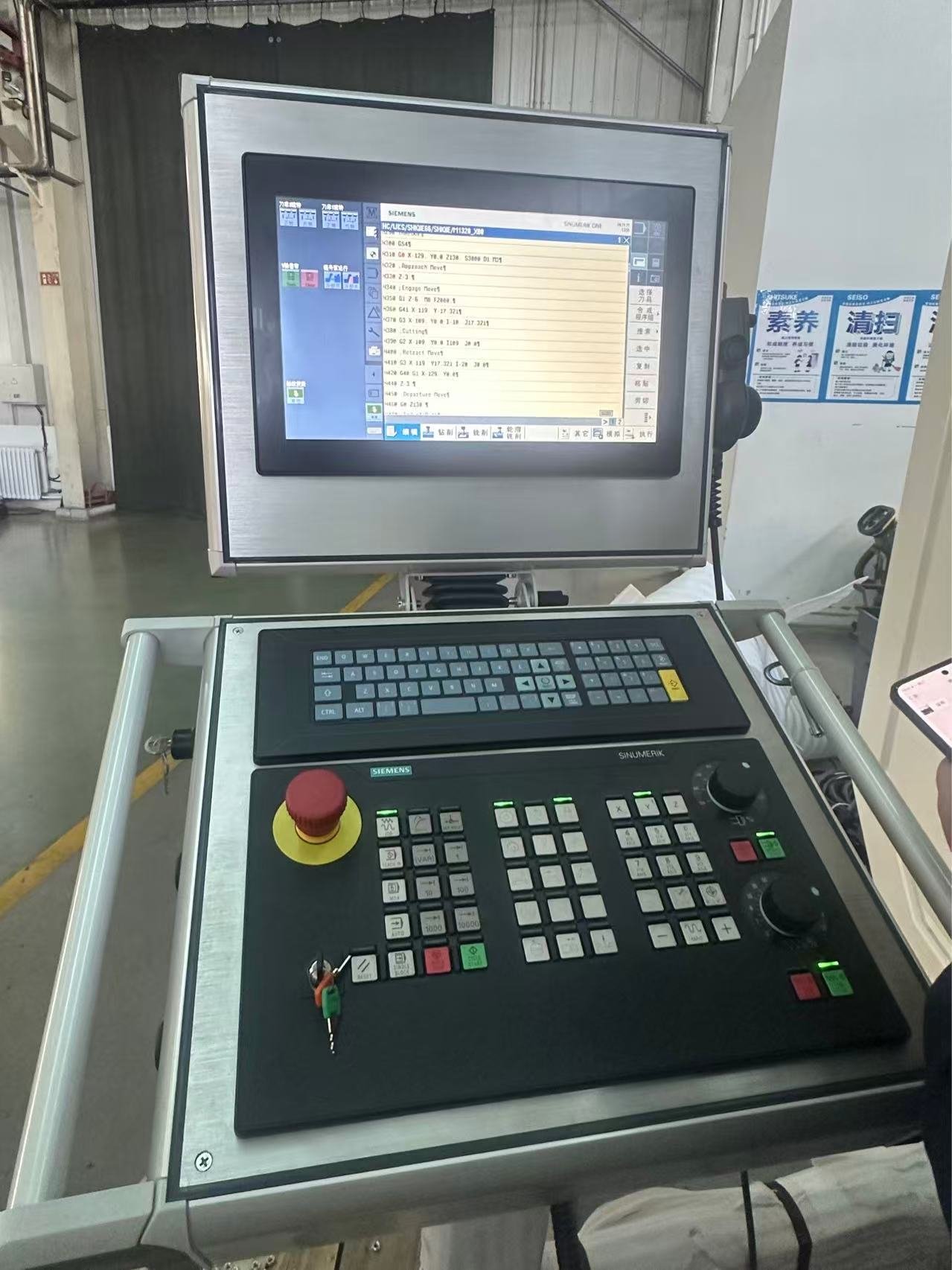

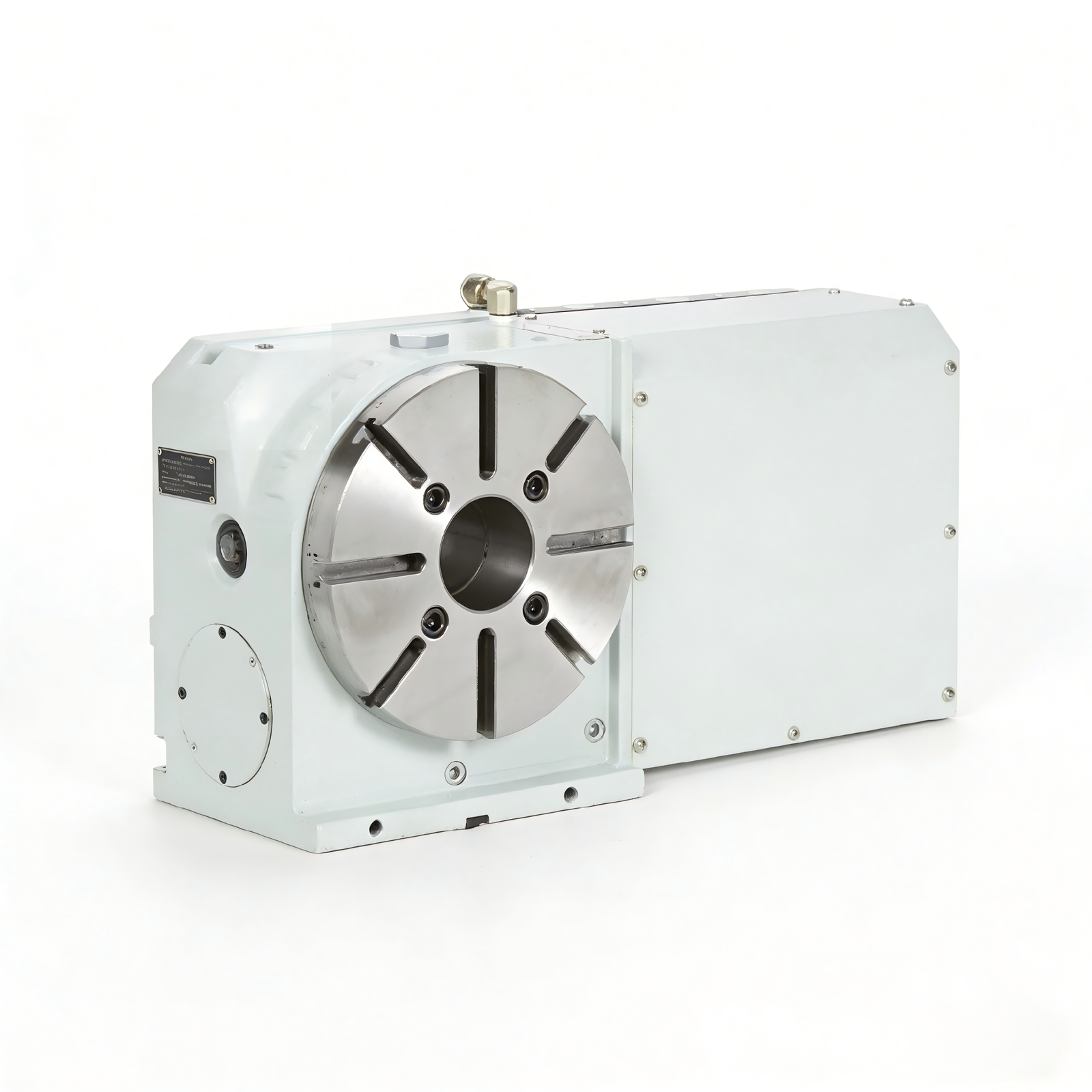

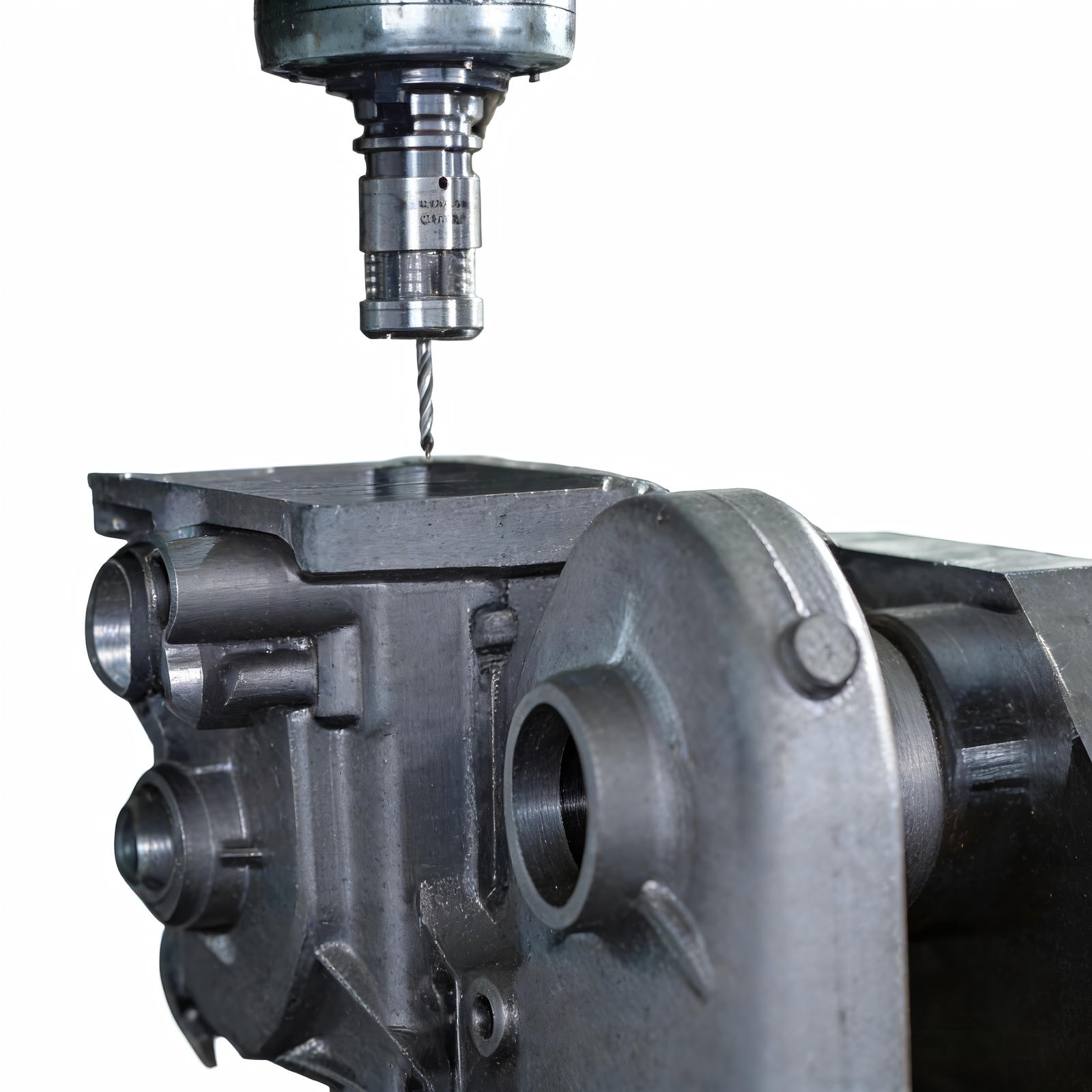

Fixed Beam Gantry Machining Center

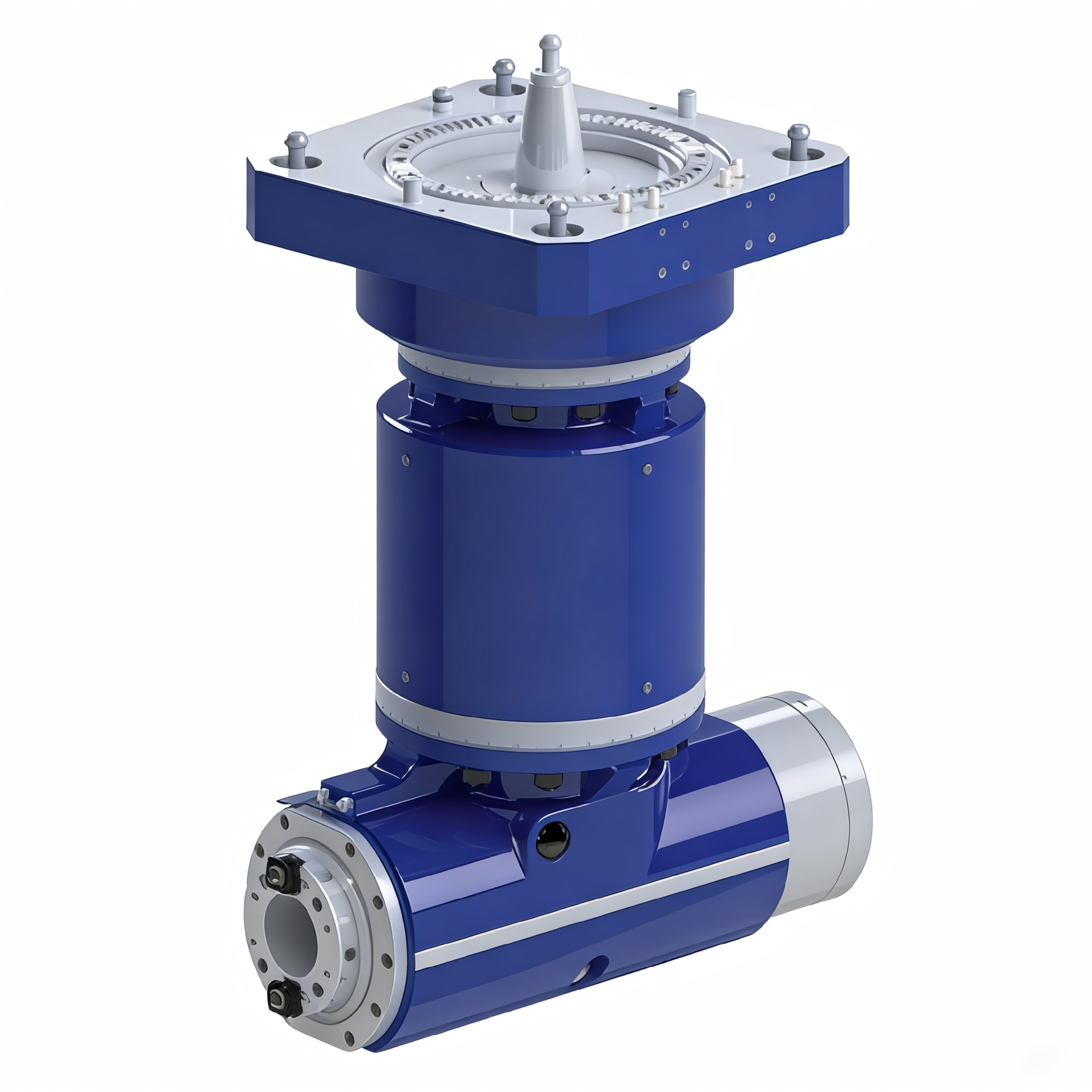

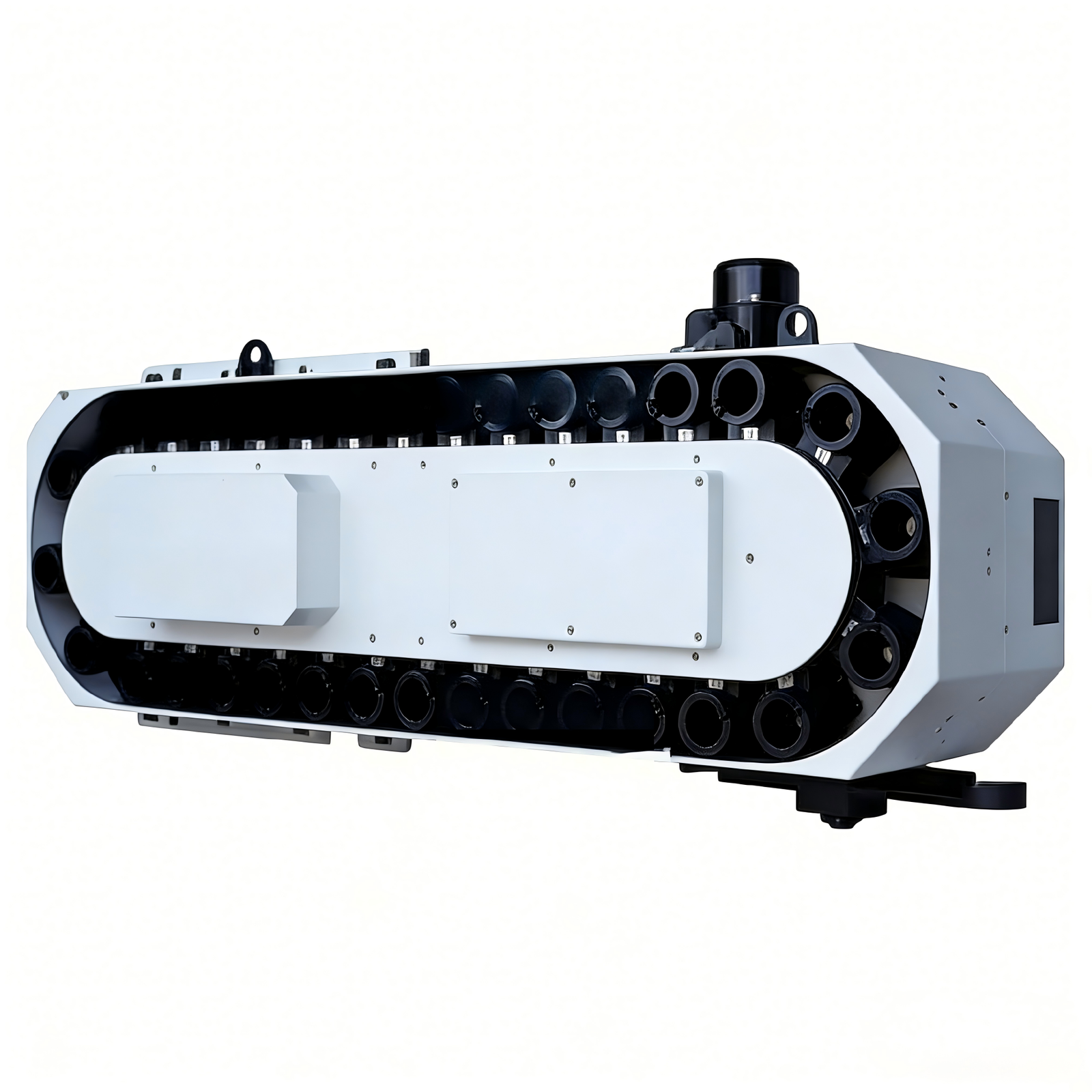

| Item | Unit | XKW2332Fx40 | XKW2332Fx60 | XKW2332Fx80 | XKW2337Fx60 | XKW2337Fx80 | XKW2342Fx60 | XKW2342Fx80 | XKW2342Fx100 |
| Processing range | |||||||||
| Effective gantry width | mm | 3200 | 3200 | 3200 | 3700 | 3700 | 4200 | 4200 | 4200 |
| X-axis stroke | mm | 4200 | 6200 | 8300 | 6200 | 8300 | 6200 | 8300 | 10300 |
| Y-axis stroke | mm | 3400 | 3400 | 3400 | 3900 | 3900 | 4400 | 4400 | 4400 |
| Z-axis stroke | mm | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 |
| Distance from spindle end face to work surface | mm | 250-1500/1750 | 250-1500/1750 | 250-1500/1750 | 250-1500/1750 | 250-1500/1750 | 250-1500/1750 | 250-1500/1750 | 250-1500/1750 |
| Worktable | |||||||||
| Table size(width xlength) | mm | 2500×4000 | 2500×6000 | 2500×8000 | 3000×6000 | 3000×8000 | 3000×6000 | 3000×8000 | 3000×10000 |
| Table Loading Weight | T | 20T | 24T | 28T | 24T | 28T | 32T | 36T | 40T |
| Table T-slot | / | 12-28×200 | 12-28×200 | 12-28×200 | 11-36×250 | 11-36×250 | 11-36×250 | 11-36×250 | 11-36×250 |
| Number-Size x space | NO. | ||||||||
| Spindle | |||||||||
| Ram form/section size | mm | 400×400 | 400×400 | 400×400 | 400×400 | 400×400 | 400×400 | 400×400 | 400×400 |
| mm | 450×450 | 450×450 | 450×450 | 450×450 | 450×450 | 450×450 | 450×450 | 450×450 | |
| Maximum spindle speed | rpm/min | 4000 | 4000 | 4000 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Spindle power | KW | 22/26 | 22/26 | 22/26 | 22/26(30/37) | 22/26(30/37) | 22/26(30/37) | 22/26(30/37) | 22/26(30/37) |
| Spindle drive mode | / | Direct-Coupled + Two-Speed Gearbox | Direct-Coupled + Two-Speed Gearbox | Direct-Coupled + Two-Speed Gearbox | Direct-Coupled + Two-Speed Gearbox | Direct-Coupled + Two-Speed Gearbox | Direct-Coupled + Two-Speed Gearbox | Direct-Coupled + Two-Speed Gearbox | Direct-Coupled + Two-Speed Gearbox |
| Spindle taper | / | BT50 | BT50 | BT50 | BT50 | BT50 | BT50 | BT50 | BT50 |
| Rapid speed | m/min | 10/12/10 | 10/12/10 | 08/12/10 | 08/10/10 | 08/10/10 | 08/10/10 | 08/10/10 | 08/10/10 |
| Cutting feed rate | m/min | 05/5/5 | 05/5/5 | 05/5/5 | 05/5/5 | 05/5/5 | 05/5/5 | 05/5/5 | 05/5/5 |
| ATC(Optional) | |||||||||
| Tool storage capacity | T | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 | 24/32/40/60 |
| Maximum tool diameter | mm | φ125/230 | φ125/230 | φ125/230 | φ125/230 | φ125/230 | φ125/230 | φ125/230 | φ125/230 |
| Full/empty | |||||||||
