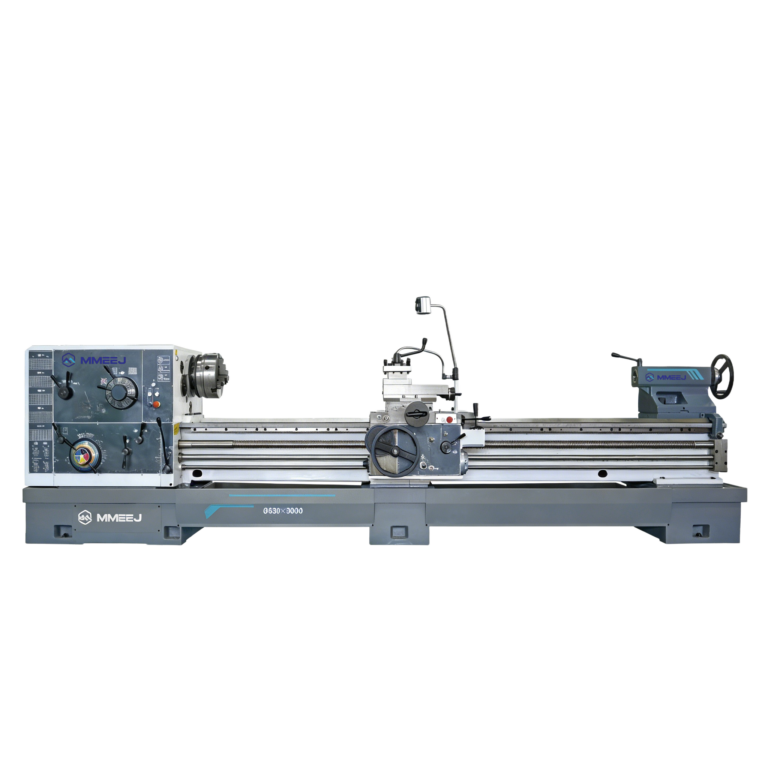

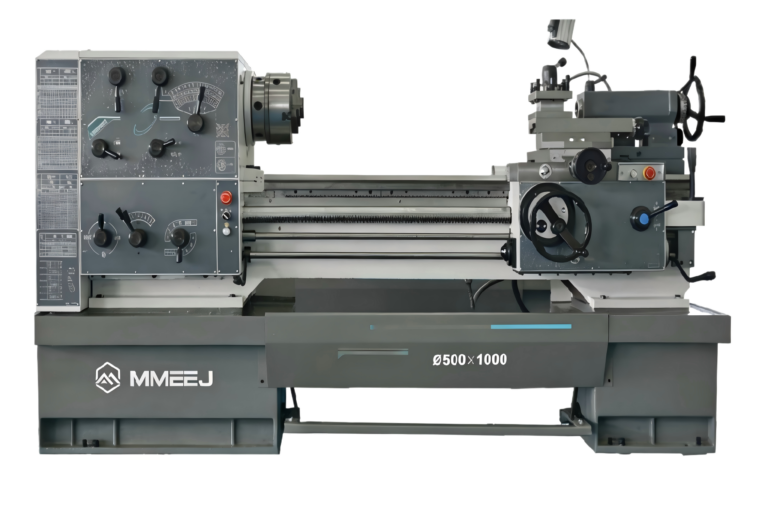

Horizontal Lathe （CDS series）
Product Presentation：
The CDSB/C series lathes can perform various turning operations, such as turning the internal and external cylindrical surfaces, end faces, and conical surfaces of parts;
lathes with saddles can be used to turn large-diameter or irregularly shaped parts;
Metric or imperial lead screw lathes are available upon request, capable of turning metric, imperial, module, and diametrical pitch threads.Drilling, reaming, and oil groove drawing are also possible；
Machining range:
Maximum turning diameter 500mm-660mm, maximum workpiece length 1000mm-3000mm.

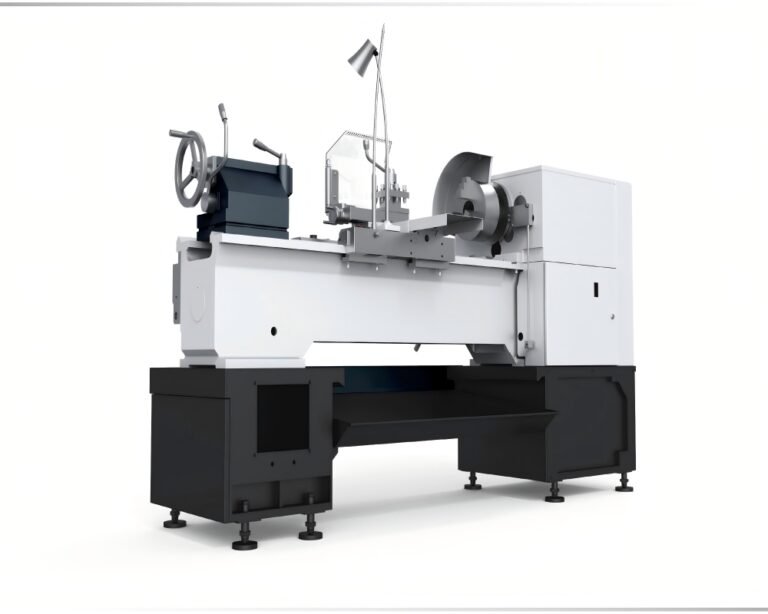

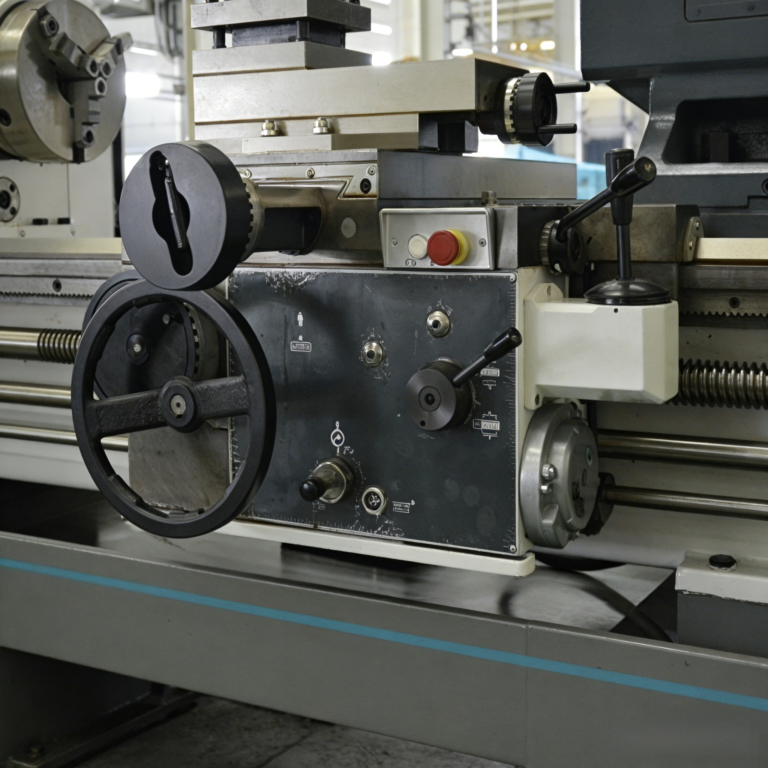

Horizontal Lathe (CW-E series)
Product Presentation:
The CW-E series horizontal lathe can perform various turning operations, mainly used for turning internal and external cylindrical surfaces, conical surfaces, and other parts with rotating surfaces. It can perform end face turning, grooving, cutting, drilling, and turning various commonly used metric, imperial, module, and diametral pitch threads. This machine tool is particularly suitable for small-batch production machining workshops and machine repair shops, and can process materials such as steel, cast iron, and non-ferrous metals.
The main difference between a horizontal lathe and a saddle lathe is that the saddle lathe has a detachable saddle bed, expanding the range of machining diameters, making it very suitable for machining disc-shaped and irregularly shaped parts. Metric, imperial, and various combinations with special functions are available. The dimensional accuracy of parts machined on this machine tool can reach IT7 level, and the surface roughness can reach Ra1.6 level.
Maximum turning diameter: 630mm-1000mm
Maximum workpiece length: 1000mm-6000mm

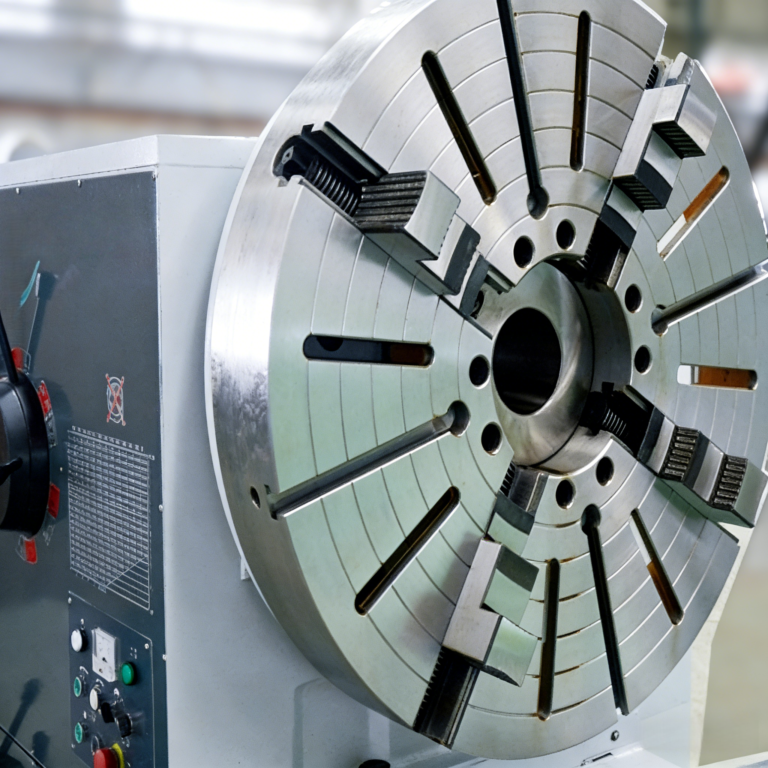

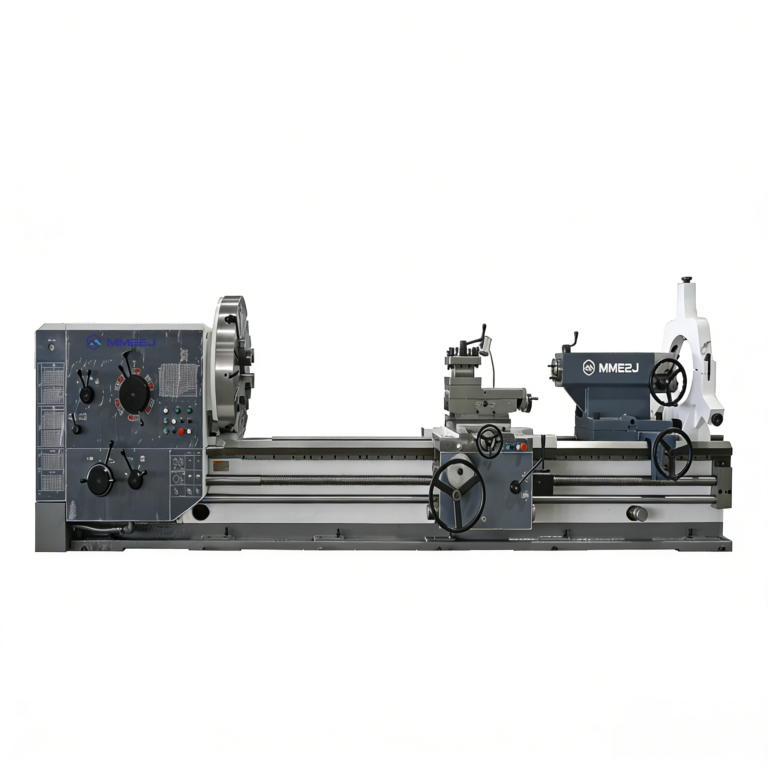

Horizontal Lathe (CW-M series )
Product Presentation:
The CW-M series horizontal lathe features a mature structure, high power, strong rigidity, and a wide spindle speed range, making it suitable for heavy-duty or high-speed cutting.
It can perform machining operations on various shaft and disc-shaped parts, including internal and external cylindrical surfaces, conical surfaces, end faces, grooving, chamfering, drilling, and tapping.
It can also machine metric threads, imperial threads, module threads, diaphragm threads, and tapered threads (special threads require consultation). It demonstrates superior performance in machining large and complex parts.
Machining Range:
Maximum turning diameter 1000mm-1600mm
Maximum workpiece length 1500mm-8000mm

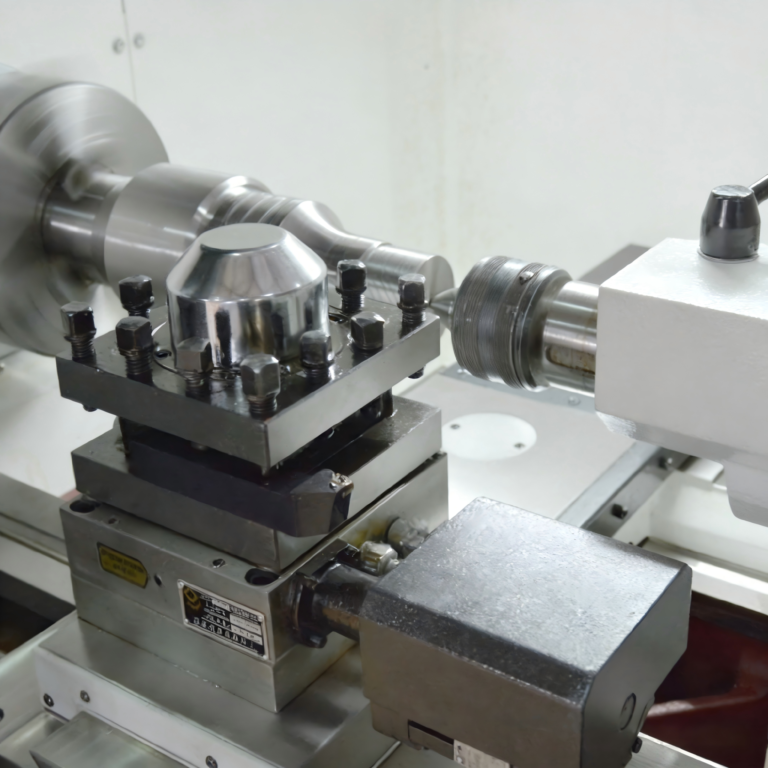

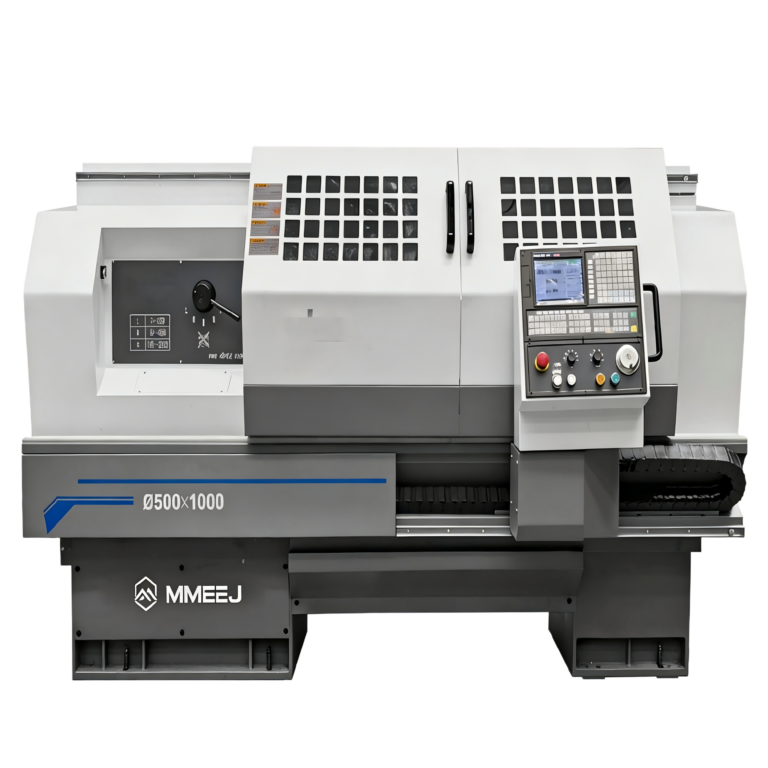

Horizontal Lathe （Flat Bed CNC Type）
Product Presentation:
The CKA series CNC lathes are horizontal CNC lathes with a flat bed controlled by both longitudinal (Z) and transverse (X) axes.
They can automatically complete cutting operations on various shaft and disc parts, including internal and external cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, and chamfering.
They can also perform turning operations on metric straight threads, end face threads, and imperial straight and tapered threads. Suitable for the production of diverse, small-batch products, they demonstrate superior performance on complex, high-precision parts.
Machining Range:
Bed rotation diameter from 400mm to 800mm, workpiece length from 750mm to 5000mm, with custom length options available.

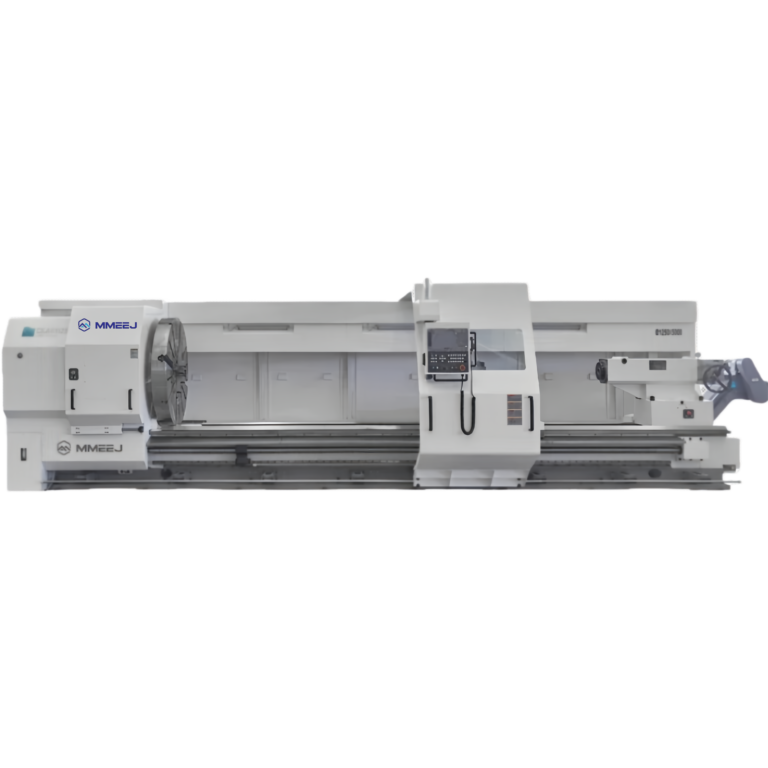

Horizontal Lathe(Flat Bed CNC Type)
Product Presentation:
The CKA-M series CNC lathe is a large-scale CNC horizontal lathe controlled by both longitudinal (Z) and transverse (X) axes.
It can automatically complete cutting operations on large shaft and disc parts, including internal and external cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, and chamfering. It can also perform various turning operations such as metric straight threads, end face threads, imperial straight threads, and tapered threads.
The machine tool uses CNC systems from well-known domestic and international companies such as FANUC and Siemens, allowing for multiple repetitive machining cycles. It is suitable for the production of diverse, high-volume products, and is particularly superior for complex, high-precision parts.
Machining Range:
Bed rotation diameter 1000-1800mm, workpiece length 1500mm-6000mm.

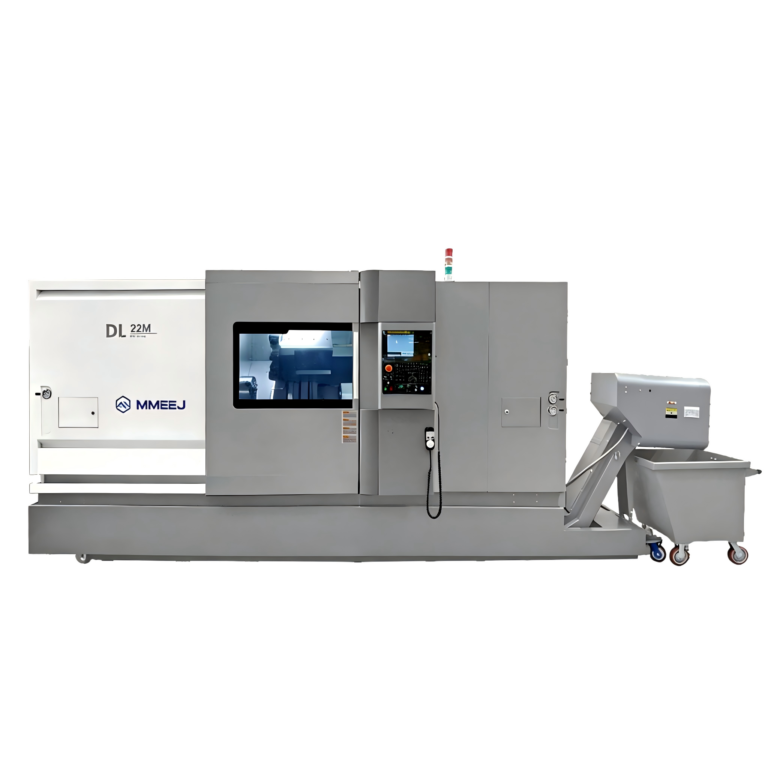

Horizontal Lathe(Slant Bed DL-M series ）
Product Presentation:
The DL-M series slant bed CNC lathe is a CNC lathe developed and manufactured by our company, possessing internationally advanced technology.
The main machine bed is integrally cast, with a 45° inclined layout of the bed guideways, providing high rigidity.
The control system adopts the Japanese FANUC 0i-TFPLUS system (or other high-quality domestic and international systems) and AC servo drive, ensuring convenient operation and reliable performance.
It can perform various turning, drilling, and milling operations on shaft and disc-shaped parts. This machine tool is widely used in the processing of shaft and disc-shaped parts in industries such as automotive parts, molds, bearings, and coal mining machinery manufacturing. Parts can automatically complete multiple processes such as turning, boring, drilling, reaming, and boring in a single clamping. Features include a 45° inclined bed guideway layout, a high-rigidity 12-position turret, high-capacity and high-rigidity sliding guideways, and a modular design with multiple configuration options.
Machining Range:
Bed rotation diameter 520mm-900mm, maximum cutting length 1000mm-3000mm.

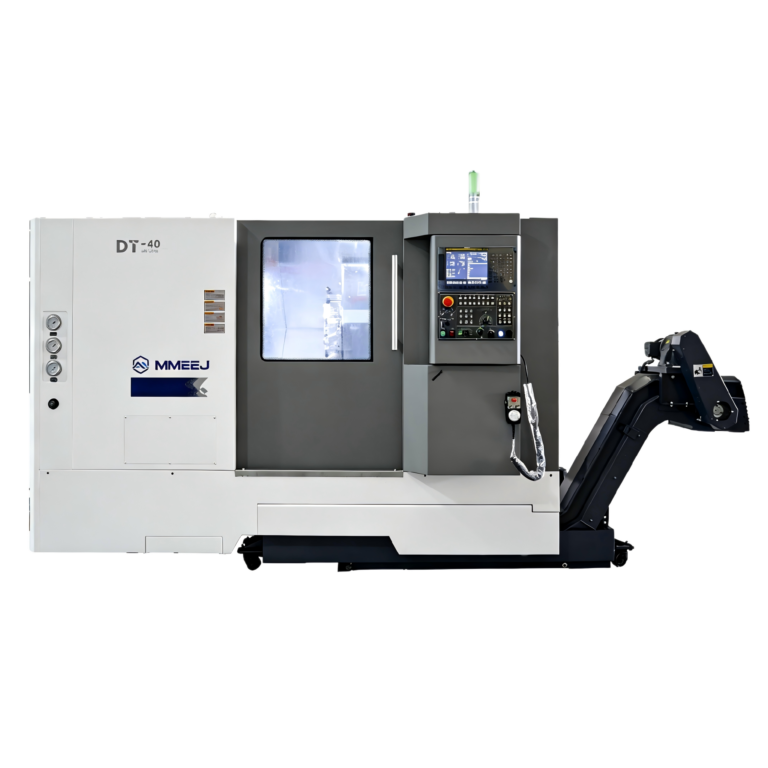

Horizontal Lathe(Slant Bed DT series)
Product Presentation:
The DL-M series slant bed CNC lathe is a CNC lathe developed and manufactured by our company with internationally advanced technology.
The main machine bed is integrally cast, and the bed guideways are inclined at 45°, providing high rigidity.
The control system adopts the Japanese FANUC 0i-TFPLUS system (or other high-quality domestic and international systems) and AC servo drive, ensuring convenient operation and reliable performance.
It can perform various turning, drilling, and milling operations on shaft and disc parts. This machine tool is widely used in the processing of shaft and disc parts in industries such as automotive parts, molds, bearings, and coal mining machinery manufacturing. Parts can automatically complete multiple processes such as turning, boring, drilling, reaming, and boring in a single clamping.
Machining Range:
Bed rotation diameter 480mm-680mm, workpiece length 300mm-1000mm.
