Gear Grinding

Features:

Employs continuous generating grinding, similar to gear hobbing, suitable for high-efficiency, high-precision grinding of large batches of gears. The main machine adopts a high-rigidity, thermally symmetrical, and modular design. The machine tool features precision, high efficiency, strong rigidity, stability, reliability, comprehensive software functions, and simple operation.

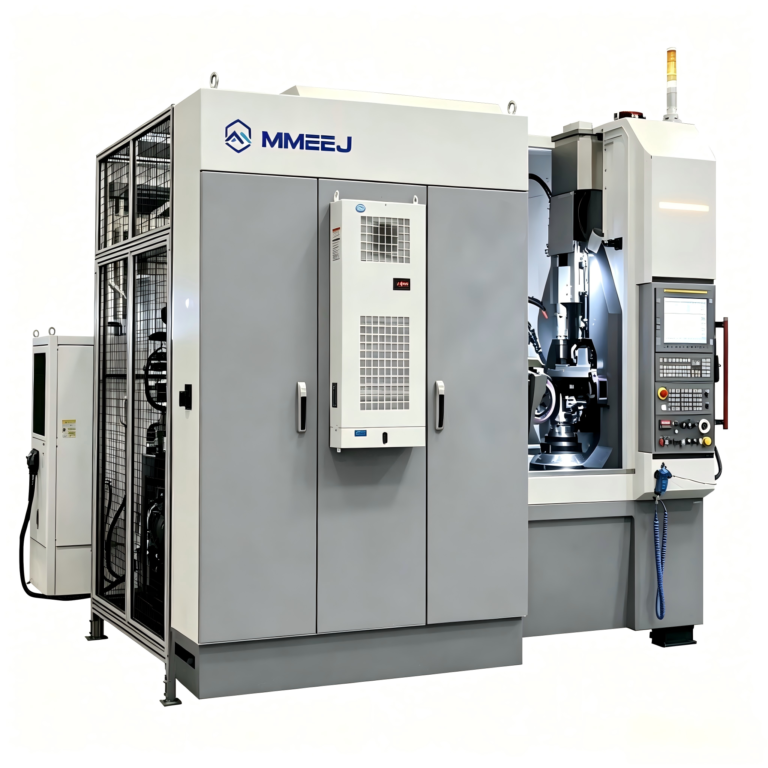

The machine tool adopts a vertical layout, mainly consisting of the main machine, electrical cabinet, oil mist extraction device, hydraulic system, and cooling system. It is equipped with a FANUC31iB CNC system, featuring seven-axis control and five-axis linkage: four linear axes (X, Y, Z, X1), three rotary axes (A, B, C), and the grinding wheel dressing axis (B1). (Axes B, C, X, Y, and Z are linked axes.)

The machine tool can be used for gear parts processing in the automotive, reducer, and intelligent robot industries.

Machine models can be customized according to customer drawings.
